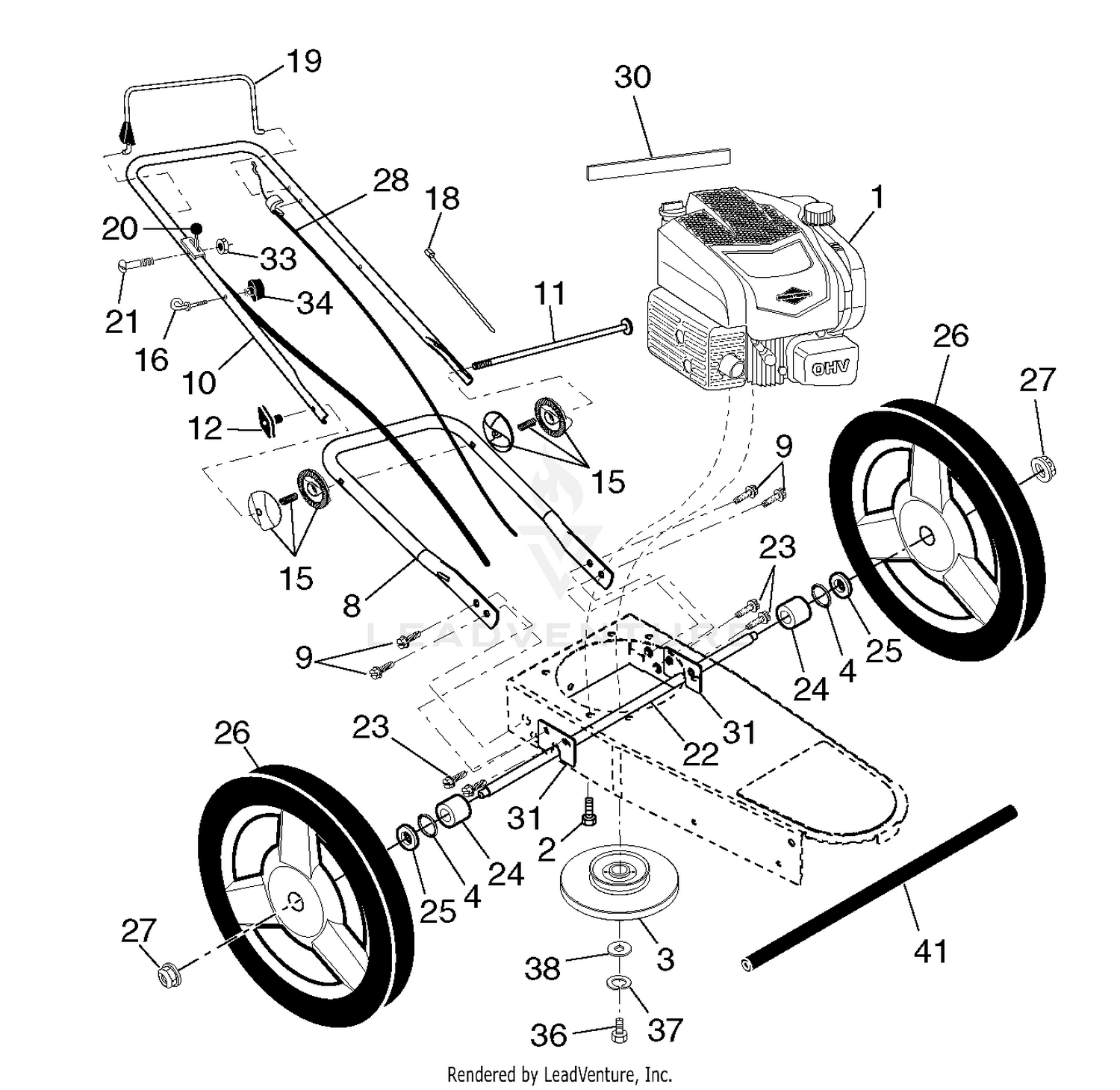

| Ref | Part Number | Description |
|---|
| 2 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 3 |
588452702 |
PULLEY/FLYWHEEL.TRIMMER.25MM Price: $89.99 |
| 4 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 9 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $4.99 |
| 11 |
532170980 |
BOLT.HANDLE.WHEELED.TRIMMER Price: $3.99 |
| 12 |
532185577 |
HANDLE.KNOB.BLACK This part replaces 532191938. Price: $7.99 |
| 15 |
532179751 |
ADJSTR.ASSEM.HANDLE.WHLD.TRIMM Price: $17.99 |
| 16 |
581902101 |
GUIDE.ROPE.BLK.ZINC.CHROM Price: $3.99 |
| 18 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 20 |
588599201 |
CONTROL.ENGINE.STOP.BRAKE Price: $22.99 |
| 21 |
532199687 |
SCREW Price: $2.99 |
| 22 |
592930001 |
AXLE This part replaces 532447829. Price: $17.99 |
| 23 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $4.99 |
| 24 |
532169823 |
SPACER.AXLE.STRING.TRIMMER Price: $6.99 |
| 25 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 26 |
585911001 |
WHEEL.12X1.75.CF H3SPK.RAD3.BB Price: $22.99 |
| 27 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $3.99 |
| 28 |
584954101 |
CABLE.DRIVE.TRIMMER Price: $22.99 |
| 30 |
501928601 |
DECAL.TRIMMER.CHASSIS.SYM Price: $2.99 |
| 31 |
532426297 |
BRACKET, AXLE Price: $3.99 |
| 33 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 34 |
581912601 |
T-KNOB.NEW ROPE GUIDE Price: $3.99 |
| 36 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 37 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 38 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 41 |
532448336 |
TUBE.AXLE.TRIMMER.BLACK Price: $11.99 |
