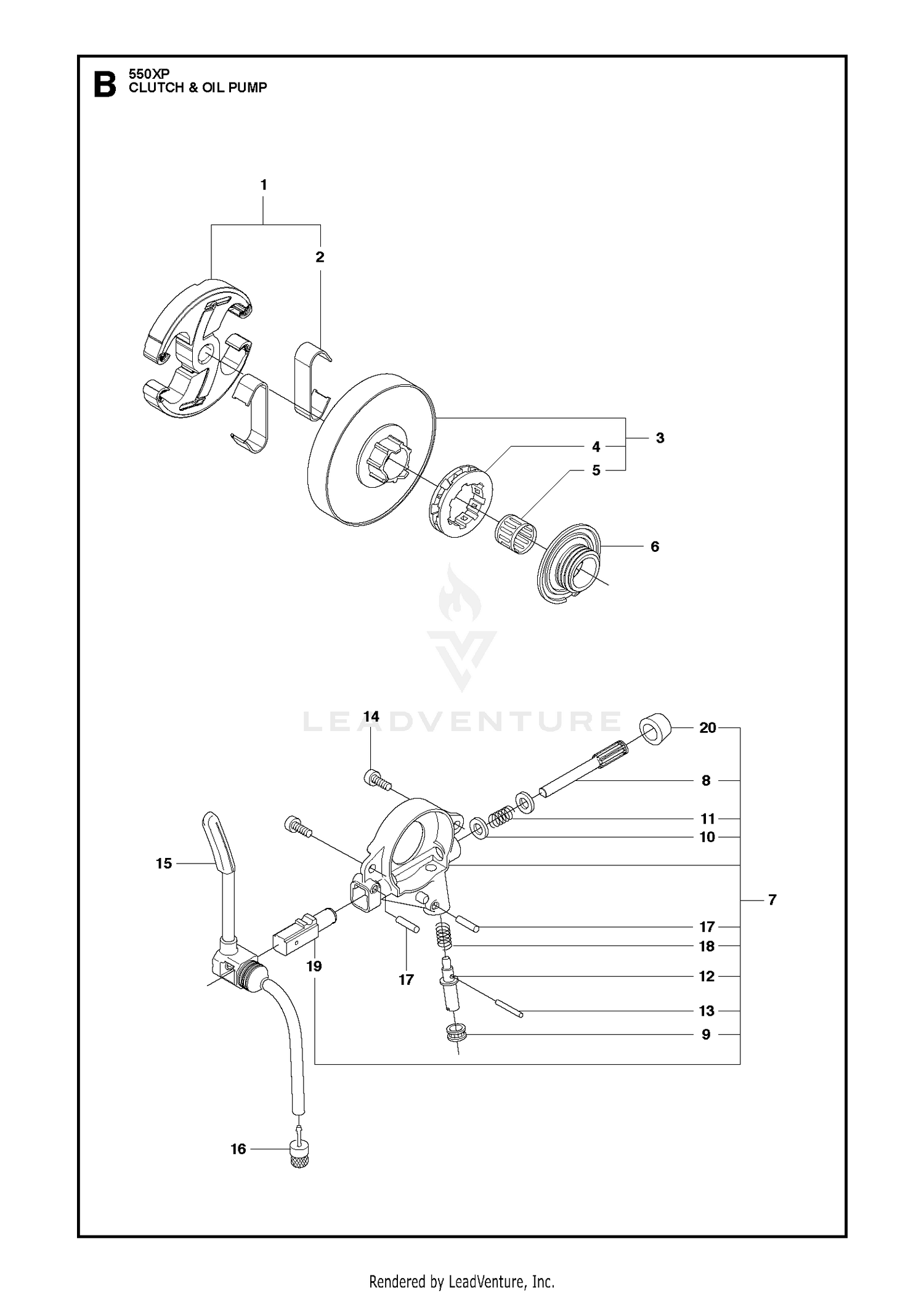

CLUTCH & OIL PUMP
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 577518202 | Clutches Price: $24.99 |
| 2 | 117-0115 | PLUG Price: $11.97 |
| 2 | 537359101 | SPRING Price: $6.99 |
| 4 | 119-8028 | VALVE-PILOT, DIRECTIONAL Price: $295.92 |
| 5 | 119-8030 | VALVE-CHECK Price: $85.27 |
| 5 | 503253401 | SUPPORT BUSHING Price: $17.99 |
| 6 | 119-8032 | VALVE-RELIEF Price: $466.55 |
| 6 | 505200801 | WORM WHEEL Price: $9.99 |
| 7 | 119-8034 | ORIFICE-.090 Price: $21.44 |
| 7 | 505199904 | OIL PUMP ASSY Price: $34.99 |
| 8 | 505200204 | PUMP PISTON 50CC This part replaces 505200201. Price: $12.99 |
| 9 | 505200301 | CASING Price: $3.99 |
| 10 | 503230060 | WASHER Price: $4.99 |
| 12 | 505157001 | ADJUSTING SCREW Price: $6.99 |
| 13 | 721116430 | PIN Price: $2.99 |
| 14 | 526818101 | SCREW ITXSCM M4X15 T27 12.9 T Price: $2.99 |
| 15 | 505200401 | OIL HOSE Price: $9.99 |
| 16 | 504710003 | OIL PLUMMET Price: $9.99 |
| 17 | 720123300 | PIN 3X10 Price: $2.99 |
| 18 | 503891501 | SPRING Price: $3.99 |
| 19 | 505200101 | PUMP CYLINDER Price: $6.99 |
| 20 | 503624901 | PLUG Price: $5.99 |
