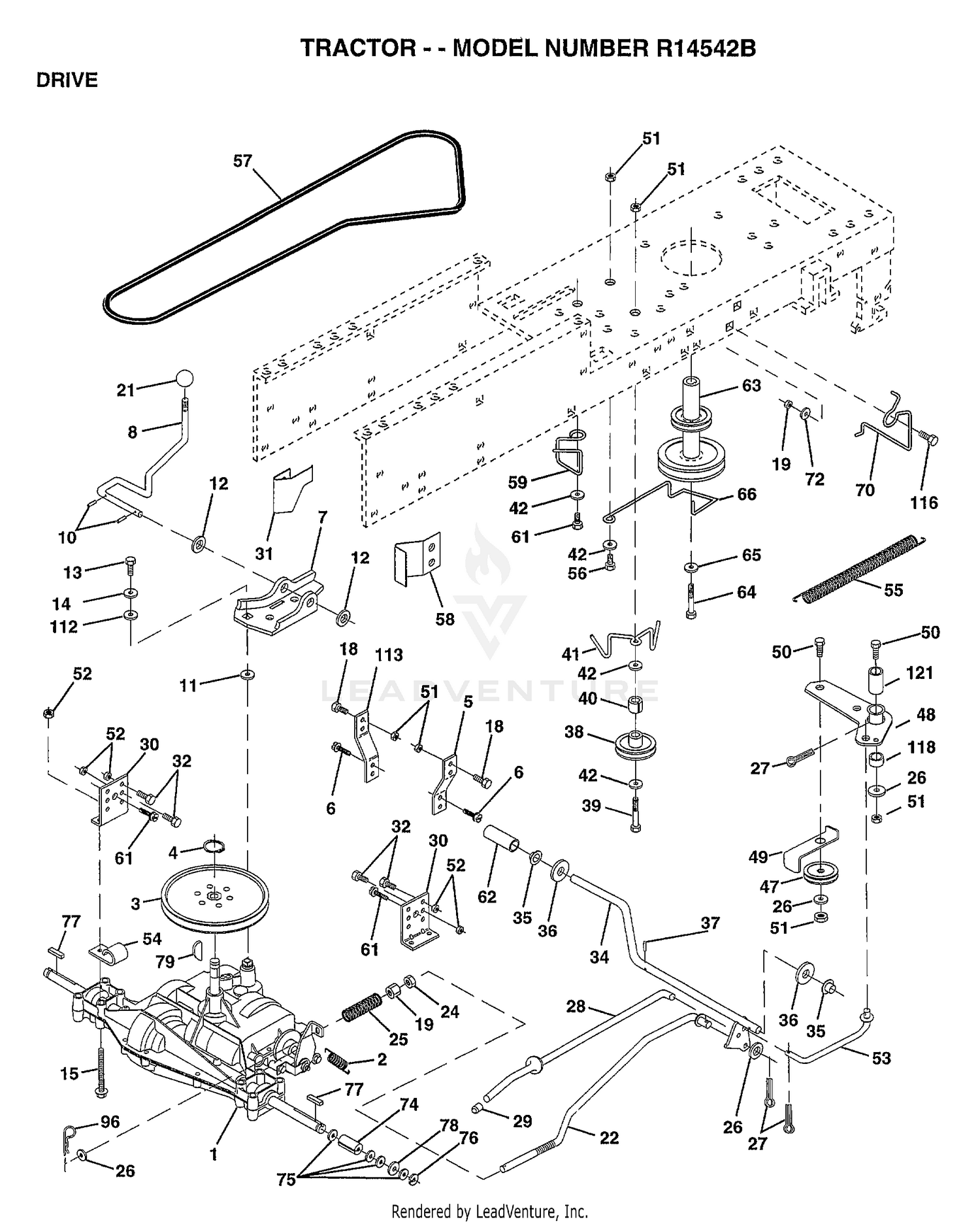

| Ref | Part Number | Description |
|---|
| 1 |
930-055A |
TRANSAXLE, PEERLESS Price: Call Us |
| 1 |
99-5608-03 |
SPRING-TORSION, RH Price: $35.46 |
| 2 |
146682 |
SPRING.BRAKE.RETU Price: Call Us |
| 2 |
99-5609-03 |
SPRING-TORSION, LH Price: $35.46 |
| 3 |
123666X |
PULLEY TRANS Price: Call Us |
| 3 |
82-6840 |
SPACER Price: $3.31 |
| 4 |
12000028 |
SUB= 2267J Price: Call Us |
| 4 |
3256-35 |
WASHER-FLAT Price: $0.68 |
| 5 |
121520X |
STRAP TORQUE Price: Call Us |
| 5 |
322-7 |
SCREW-HH Price: $0.89 |
| 6 |
17490512 |
SCREW Price: Call Us |
| 6 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 7 |
130802 |
SUB= 162240 Price: Call Us |
| 7 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 8 |
131679 |
SHIFT ROD Price: Call Us |
| 8 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 9 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 10 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 10 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 11 |
105701X |
WASH-SHFT PLT LT Price: Call Us |
| 11 |
93-6696 |
DECAL-WARNING Price: $14.78 |
| 12 |
19151216 |
WASHER Price: Call Us |
| 12 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 13 |
74550412 |
BOLT.1/4-28.W/PAT Price: Call Us |
| 13 |
99-5610 |
PIN Price: $40.16 |
| 14 |
10040400 |
LOCKWASHER Price: Call Us |
| 14 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 15 |
74490544 |
BOLT.HX.FLG.5/16 Price: Call Us |
| 15 |
94-8946 |
WASHER-THRUST Price: $1.96 |
| 16 |
98-1880-03 |
KNUCKLE-PIVOT Price: $350.23 |
| 17 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 18 |
74780616 |
BOLT Price: Call Us |
| 18 |
98-7993 |
SCREW-HHF Price: $3.05 |
| 19 |
283-71 |
PIN-LYNCH Price: $2.73 |
| 19 |
73800600 |
NUT Price: Call Us |
| 21 |
106-9004 |
BUMPER This part replaces 99-5605. Price: $6.35 |
| 21 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 22 |
130804 |
BRAKE ROD Price: Call Us |
| 22 |
98-7974 |
WASHER-THRUST Price: $37.96 |
| 23 |
99-6903-03 |
NO. 3 LIFT ARM ASM Price: $966.43 |
| 24 |
73350600 |
NUT Price: Call Us |
| 24 |
99-6902-03 |
NO. 2 LIFT ARM ASM Price: $867.02 |
| 25 |
106888X |
SPRING ROD LT Price: Call Us |
| 26 |
19131316 |
WASHER Price: Call Us |
| 27 |
76020412 |
COTTER PIN Price: Call Us |
| 28 |
145204 |
ROD.BRAKE.PARK.LT Price: Call Us |
| 29 |
71673 |
PLUNGER CAP T Price: Call Us |
| 30 |
130807 |
TRANSAXLE MTG BKT Price: Call Us |
| 32 |
74760512 |
BOLT Price: Call Us |
| 34 |
155071 |
SHAFT ASM-PEDAL F Price: Call Us |
| 35 |
120183X |
NYLON BEARING Price: Call Us |
| 36 |
19211616 |
WASHER LT Price: Call Us |
| 37 |
1572H |
SUB= 2882J Price: Call Us |
| 38 |
123674X |
PULLEY.IDLER.FLAT Price: Call Us |
| 39 |
74760644 |
BOLT Price: Call Us |
| 40 |
4470J |
SPACER T Price: Call Us |
| 41 |
154777 |
SUB= 165692 Price: Call Us |
| 42 |
19131312 |
WASHER Price: Call Us |
| 47 |
127783 |
SUB= 139245 Price: Call Us |
| 48 |
154604 |
BELLCRANK ASM Price: Call Us |
| 49 |
123205X |
RETAIN BELT Price: Call Us |
| 50 |
74760624 |
SUB= 74930624 Price: Call Us |
| 51 |
73680600 |
SUB= 73690600 Price: Call Us |
| 52 |
73680500 |
SUB= 73690500 Price: Call Us |
| 56 |
74760620 |
Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 57 |
130801 |
SUB= 138255 Price: Call Us |
| 59 |
140312 |
KEEPER BELT CNTSP Price: Call Us |
| 61 |
17490612 |
SCREW Price: Call Us |
| 62 |
8883R |
PEDAL COVER T Price: Call Us |
| 63 |
140186 |
PULLEY.ENGINE Price: Call Us |
| 64 |
71170764 |
BOLT Price: Call Us |
| 65 |
10040700 |
LOCKWASHER Price: Call Us |
| 66 |
154778 |
KEEPER-BELT Price: Call Us |
| 70 |
134683 |
KEEPER BELT ENG Price: Call Us |
| 72 |
19132012 |
WASHER Price: Call Us |
| 74 |
137057 |
SPACER AXLE Price: Call Us |
| 75 |
121749X |
WASHER Price: Call Us |
| 76 |
12000001 |
E-RING LT Price: Call Us |
| 77 |
123583X |
SQUARE KEY Price: Call Us |
| 78 |
121748X |
WASHER Price: Call Us |
| 79 |
2228M |
SUB= 2228M1 Price: Call Us |
| 96 |
4497H |
RETAINER M Price: Call Us |
| 112 |
19091210 |
WASHER LT Price: Call Us |
| 116 |
72110610 |
BOLT RDHD 3/8-16 Price: Call Us |
| 118 |
154774 |
SPACER-BELLCRANK Price: Call Us |
