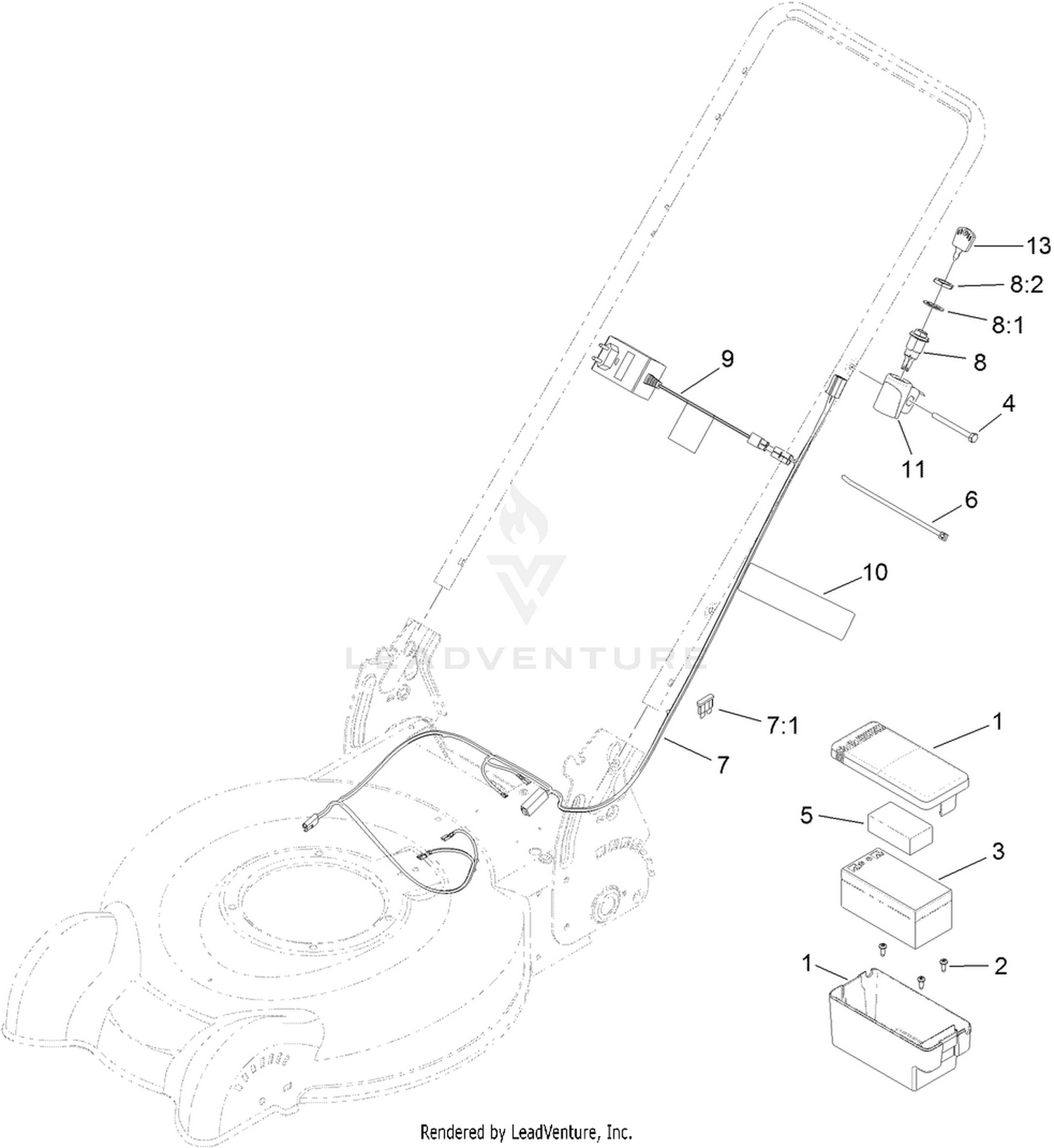

Battery and Electric Start Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 108-4844 | BATTERY BOX ASM Price: $21.99 |
| 2 | 105-6849 | SCREW-FORMING, THREAD Price: $0.60 |
| 3 | 106-8397 | BATTERY-WET Price: $55.81 |
| 4 | 321-57 | SCREW-HH Price: $2.05 |
| 5 | 107-3774 | FOAM-BATTERY, TOP Price: $3.16 |
| 6 | 614249 | TIE-CABLE Price: $0.79 |
| 7 | 106-8378 | HARNESS-WIRE Price: $59.50 |
| 8 | 46-5780 | STARTER SWITCH ASM Price: $22.97 |
| 9 | 136-9126 | CHARGER, BATTERY (12V) This part replaces 114-1588. Price: $31.73 |
| 10 | 104-7953 | DECAL-WARNING Price: $5.65 |
| 11 | 108-9760 | MOUNT-SWITCH Price: $3.72 |
