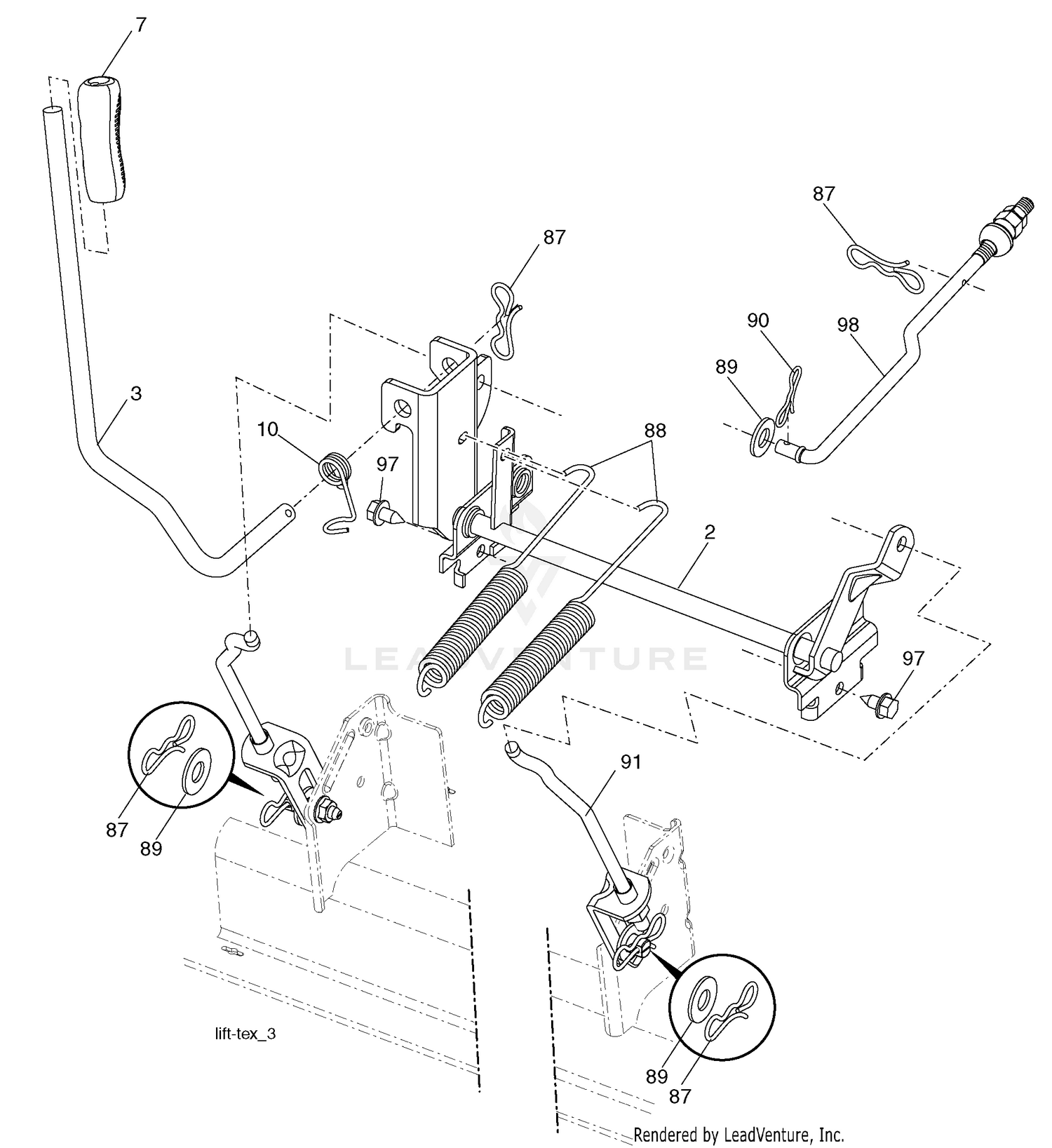

| Ref | Part Number | Description |
|---|
| 1 |
83-1050 |
SPACER Price: $3.26 |
| 2 |
121-9076 |
MOUNT-ENGINE This part replaces 83-1030. Price: $37.76 |
| 2 |
195223 |
Shaft Asm., Lift Price: Call Us |
| 3 |
195230 |
Lever Asm., Lift RH Price: Call Us |
| 3 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 4 |
98-4539-03 |
BRACKET-ENGINE MOUNT, LH Price: $179.96 |
| 5 |
98-4543-03 |
BRACKET-ENGINE MOUNT, RH Price: $180.69 |
| 6 |
98-9749 |
PLATE-THROTTLE Price: $29.11 |
| 7 |
196492X421 |
Grip, Lever Price: Call Us |
| 7 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 8 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 9 |
99-3441 |
HARNESS-WIRE, FUSIBLE LINK Price: $146.90 |
| 10 |
196314 |
Spring Torsion Price: Call Us |
| 10 |
322-4 |
SCREW-HH Price: $0.35 |
| 11 |
98-4513-03 |
BRACKET-ENGINE, REAR Price: $78.69 |
| 12 |
93-0095-03 |
BRACKET-ENGINE, FRONT Price: $111.93 |
| 13 |
3213-2 |
SCREW-HH Price: $1.90 |
| 15 |
98-9322 |
SCREW-HSH Price: $4.89 |
| 16 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 17 |
98-4598 |
CABLE-BATTERY, NEGATIVE Price: $69.78 |
| 18 |
110-0035 |
KIT-ENGINE, KUBOTA DSL This part replaces 104-9342. Price: $8,164.44 |
| 19 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 20 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 21 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 22 |
48-7890 |
NUT-HEX Price: $0.25 |
| 23 |
98-4594 |
CLAMP-RETAINER Price: $15.98 |
| 24 |
32128-36 |
NUT-HF Price: $1.56 |
| 25 |
98-4515-03 |
BRACKET-REAR ENGINE, LH Price: $62.07 |
| 26 |
98-4514-03 |
BRACKET-REAR ENGINE, RH Price: $55.86 |
| 27 |
323-12 |
SCREW-HH Price: $1.14 |
| 28 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 29 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 30 |
3256-40 |
WASHER-FLAT Price: $2.10 |
| 31 |
43-0090 |
SCREW-HH Price: $8.05 |
| 32 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 33 |
323-10 |
SCREW-HH Price: $0.89 |
| 87 |
194209 |
Pin Cotter 7/16 Bow Tie Lock Price: Call Us |
| 88 |
195303 |
Spring Lift Assist Price: Call Us |
| 89 |
19191912 |
Washer Clear Zinc Price: Call Us |
| 90 |
194208 |
Pin Cotter 5/16 Bow Tie Lock Price: Call Us |
| 91 |
403407 |
Link Lift Susp. Mower Rear Price: Call Us |
| 97 |
17000612 |
Screw 3/8-16 x .75 Smgml. Tap/R.Z Price: Call Us |
