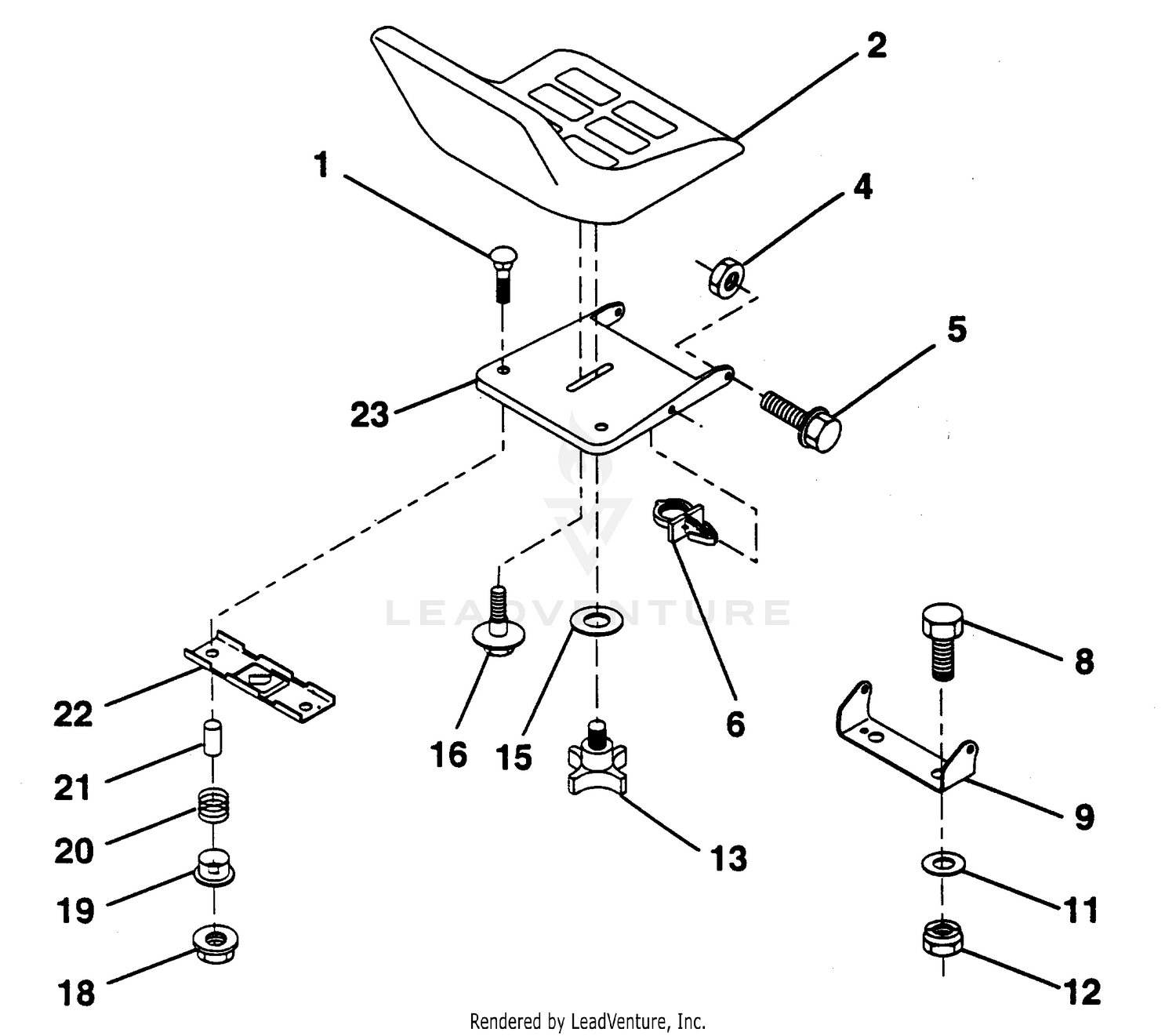

| Ref | Part Number | Description |
|---|
| 1 |
323-6 |
SCREW-HH Price: $0.66 |
| 1 |
872050411 |
Bolt, Carriage 1/4-20 x 1-3/8 Price: $2.99 |
| 2 |
532127428 |
Seat (AYP part number) Price: $119.99 |
| 3 |
112-6967 |
O-RING Price: $2.70 |
| 4 |
120-5118 |
SHAFT-ADJUSTER Price: $44.64 |
| 4 |
873800500 |
Nut Lock Hex W/Ins 5/16-18 (AYP part number) Price: $2.99 |
| 5 |
106-5344 |
BUSHING-FLANGE, KEYED Price: $2.37 |
| 5 |
532139888 |
Bolt, Shoulder 5/16-18 UNC (AYP part number) Price: $2.99 |
| 6 |
119-4067 |
SCREW-HH Price: $0.81 |
| 6 |
532140407 |
Clip, Insulated (AYP part number) Price: $3.99 |
| 7 |
99-2097 |
DETENT Price: $12.71 |
| 8 |
120-5116 |
WASHER-WAVE Price: $9.17 |
| 8 |
874780616 |
BOLT This part replaces 874760616. Price: $3.99 |
| 9 |
108-0015 |
WASHER-FLAT Price: $0.39 |
| 9 |
532140551 |
Bracket, Pivot, Seat (AYP part number) Price: $3.99 |
| 10 |
137-6130 |
SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 11 |
119-4155 |
WASHER-HARDENED Price: $4.16 |
| 11 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 12 |
120-5120 |
SPRING-COMPRESSION Price: $2.89 |
| 12 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 13 |
119-4039 |
NUT-HEX, NI Price: $0.28 |
| 13 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT This part replaces 532120068. Price: $6.99 |
| 15 |
112-8954-01 |
BEDBAR Price: $599.46 |
| 15 |
819171912 |
Washer 17/32 x 1-3/16 x 12 Gauge (AYP part number) Price: $3.99 |
| 16 |
119-4151 |
SCREW-BEDKNIFE Price: $0.41 |
| 16 |
532127018 |
Bolt, Shoulder (AYP part number) Price: $3.99 |
| 17 |
114-9389 |
BEDKNIFE-STD Price: $90.64 |
| 18 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 532123976. Price: $2.99 |
| 19 |
532121248 |
Bushing, Snap (AYP part number) Price: $3.99 |
| 20 |
532121250 |
Spring, Compression (AYP part number) Price: $3.99 |
| 21 |
532134300 |
Spacer, Split, Large .28 ld. x .96 (AYP part number) Price: $3.99 |
| 21 |
61-1950 |
WASHER-PLASTIC Price: $0.55 |
| 22 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $4.99 |
| 22 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 23 |
69-8980 |
WASHER Price: $0.58 |
| 24 |
106-9623 |
BOLT-BEDBAR Price: $18.27 |
| 25 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 26 |
127-4284 |
WASHER-SPECIAL Price: $5.88 |
| 27 |
115-5258 |
SPRING-WIRE, FLAT Price: $3.40 |
| 28 |
140-5510 |
BEARING-SEALED, STAINLESS This part replaces 115-3296. Price: $28.48 |
| 29 |
115-3299 |
SEAL-FLOCKED Price: $13.85 |
| 34 |
127-7111 |
INSERT-THREADED, 7 INCH (LH) Price: $42.48 |
| 35 |
127-7109 |
INSERT-THREADED, 7 INCH (RH) Price: $42.48 |
