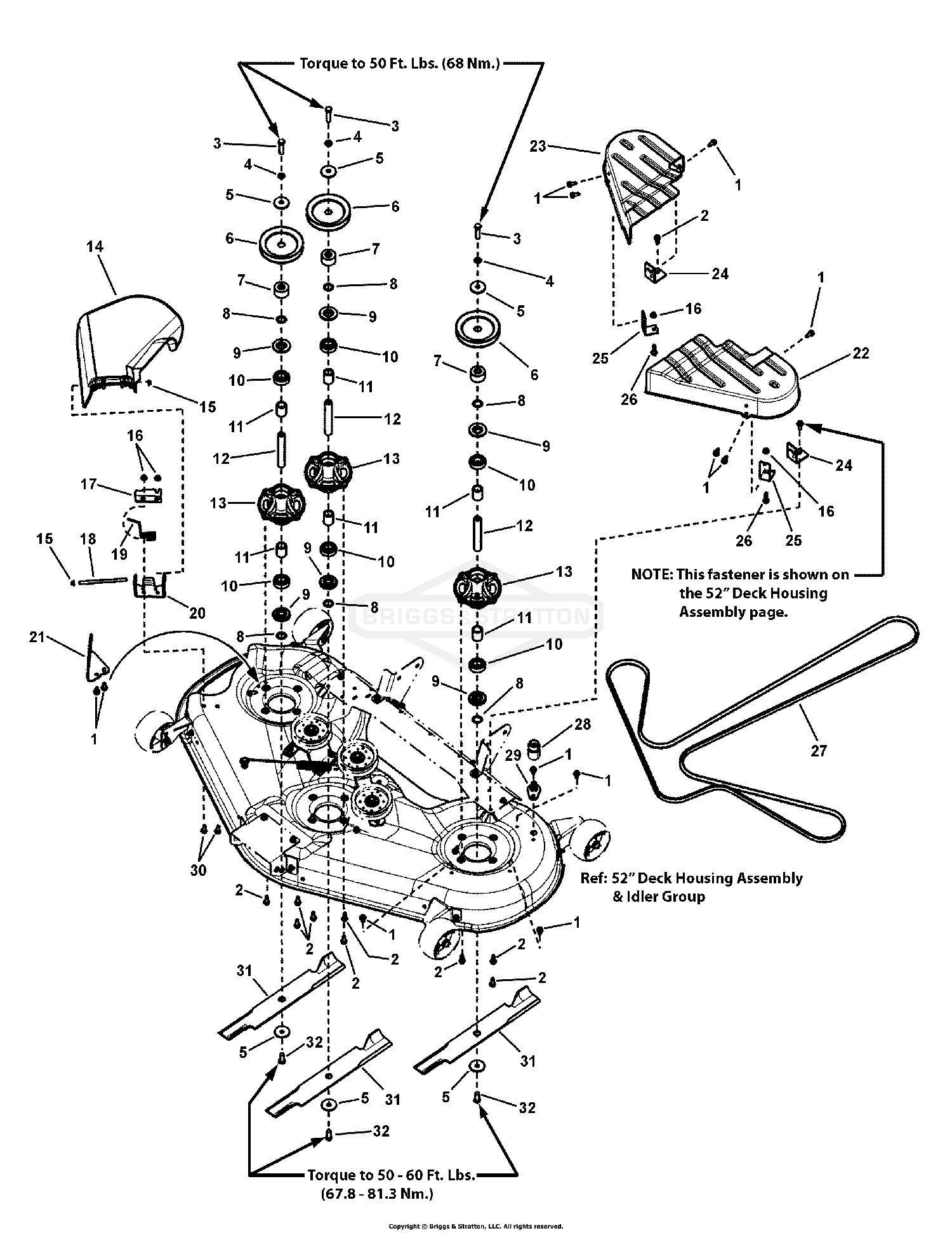

| Ref | Part Number | Description |
|---|
| 1 |
703228 |
SCREW, 5/16-18 X .75 This part replaces 1664847. Price: $3.94 |
| 2 |
1960373 |
SCREW, 5/16-18 x 1" Hex Washer Head Self-Tap, Black Price: Call Us |
| 3 |
703171 |
HHCS This part replaces 1923027. Price: $3.50 |
| 4 |
704007 |
LCKWSHR,7/16,SPLIT RE This part replaces 1918199. Price: $3.94 |
| 5 |
1656916SM |
WASHER, SPRING 0.475I This part replaces 1656916. Price: $6.65 |
| 6 |
1735733YP |
PULLEY, 5.5 OD x 11 Ga. Split This part replaces 1735733. Price: $18.82 |
| 7 |
1736445YP |
SPACER, Pulley, Powdered Metal This part replaces 1736445. Price: $12.47 |
| 8 |
1960766YP |
RING, SELF LOCKING This part replaces 1960766. Price: $3.82 |
| 9 |
84003166 |
COVER, ARBOR This part replaces 1735323. Price: $6.34 |
| 10 |
1735399YP |
BEARING, Ball, 20mm This part replaces 1735399. Price: $8.70 |
| 11 |
1735328YP |
SPACER, Bearing This part replaces 1735328. Price: $5.78 |
| 12 |
84003170 |
SHAFT, SPINDLE This part replaces 1735326. Price: $27.77 |
| 13 |
84003654 |
HOUSING ASSEMBLY This part replaces 1735573. Price: $40.82 |
| 14 |
1735447 |
DEFLECTOR, Discharge, Plastic 46/52 Decks Price: Call Us |
| 15 |
704028 |
PUSHNUT, CAP, 5/16 This part replaces 7012542. Price: $4.59 |
| 16 |
703409 |
NUT, 5/16-18, GR5 This part replaces 1931277. Price: $4.92 |
| 17 |
1737359BMYP |
PLATE, Deflector, Closeoff This part replaces 1737359BM. Price: $7.27 |
| 18 |
1736366YP |
ROD, Deflector, .313 Dia. X 5.6 Long, Zinc/Clear This part replaces 1736366. Price: $10.54 |
| 19 |
1736364YP |
SPRING, Torsion, Deflector, 2.16 Long This part replaces 1736364. Price: $7.27 |
| 20 |
1737418BMYP |
HINGE, Deflector This part replaces 1737418BM. Price: $24.60 |
| 21 |
1737279BMYP |
BAFFLE, Pinchoff This part replaces 1737279BM. Price: $16.09 |
| 22 |
7104697YP |
COVER, Spindle, 46/52 Deck LH 285Z This part replaces 7104697. Price: $51.59 |
| 23 |
7104696YP |
COVER, Spindle, 46/52 Deck RH 285Z This part replaces 7104696. Price: $51.59 |
| 24 |
7301133BMYP |
BRACKET, Rear Deck Cover Support 285Z This part replaces 7301133BM. Price: $13.15 |
| 25 |
7301134BMYP |
BRACKET, 46/52 Cover Mounting This part replaces 7301134BM. Price: $15.29 |
| 27 |
7103789YP |
BELT, 158" LENGTH This part replaces 7103789. Price: $99.80 |
| 28 |
1736898 |
CONNECTOR, Washout Port 46/52" Black Poly Price: Call Us |
| 29 |
1756247YP |
ADAPTOR, Washout Port This part replaces 1735716. Price: $5.78 |
| 30 |
704065 |
BOLT, 5/16-18X.875 This part replaces 1931334. Price: $3.61 |
| 31 |
1737252BZYP |
BLADE, Mower 18.5" LG, .807 ID, 1.12" Lift, 52" MWR This part replaces 1737252. Price: $17.00 |
