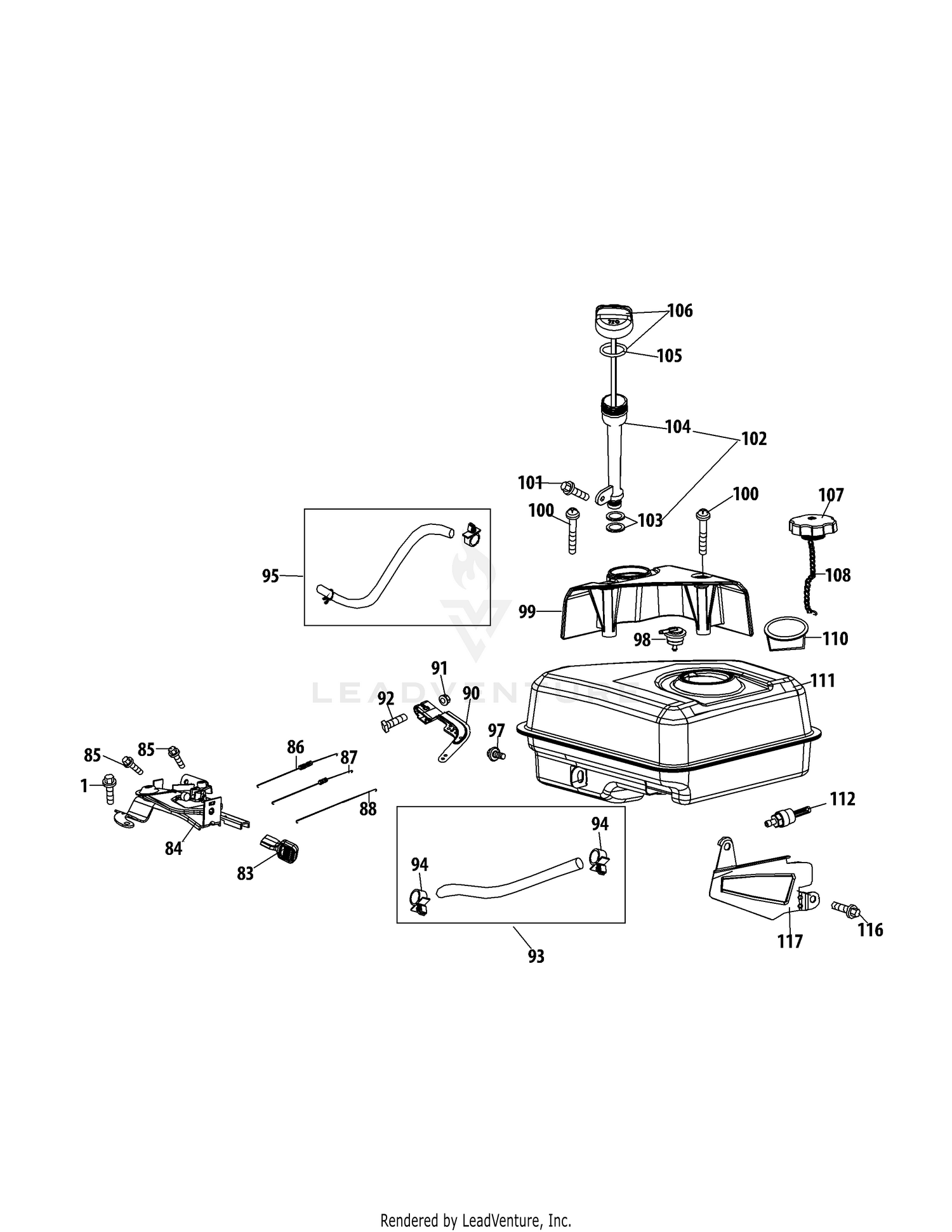

| Ref | Part Number | Description |
|---|
| 1 |
710-04968 |
Bolt M6×16 Price: $5.77 |
| 83 |
951-11067 |
Throttle Control Knob Price: $3.38 |
| 84 |
951-12131 |
Primer Bracket Price: $18.41 |
| 85 |
710-05103 |
Bolt M6×12 Price: $3.52 |
| 86 |
951-11585 |
Governor Spring Price: $6.50 |
| 87 |
751P10664A |
THROTTLE SPRING This part replaces 951-10664. Price: $2.01 |
| 88 |
751P10665A |
THROTTLE LINKAGE This part replaces 951-10665. Price: $1.53 |
| 90 |
951-11106 |
Governor Arm Price: $6.89 |
| 91 |
712-05015 |
Nut M6 This part replaces 712-04212. Price: $5.78 |
| 92 |
710-04908 |
Governor Arm Bolt Price: $5.65 |
| 93 |
951-14260 |
FUEL LINE KIT 115MM Not Available Price: |
| 94 |
951-11700A |
CARBURETOR HOSE CLAMP This part replaces 951-11700. Price: $3.60 |
| 95 |
951-14133 |
Evap Hose Assembly Price: $4.10 |
| 97 |
710-04915 |
Bolt M6×12 Price: $3.82 |
| 98 |
951-14075A |
Roll Over Valve This part replaces 951-14075. Price: $25.28 |
| 99 |
951-11914 |
Engine Dipstick Cover Price: $13.09 |
| 100 |
710-04905 |
Screw Price: $3.86 |
| 101 |
710-04915 |
Bolt M6×12 Price: $3.82 |
| 102 |
951-11913 |
Oil Fill Tube Assembly Price: $14.46 |
| 103 |
951-11381 |
Fill Tube O-Ring Price: $4.59 |
| 104 |
631-05020AP |
Dipstick Assembly This part replaces 951-10656. Price: $30.73 |
| 105 |
951-11904 |
Dipstick O-Ring Price: $3.69 |
| 106 |
951-12482 |
Dipstick Assy Price: $13.22 |
| 107 |
951-12535 |
Fuel Cap Assembly Price: $20.21 |
| 108 |
951-14076 |
Fuel Cap Chain Price: $7.78 |
| 110 |
951-14265 |
Fuel Level Indicator This part replaces 751-14265. Price: $9.84 |
| 111 |
951-14077 |
Fuel Tank Price: $85.61 |
| 112 |
951-10651 |
Fuel Tank Nipple Not Available Price: |
| 116 |
710-04940 |
Bolt M6×10 Price: $4.56 |
