| Ref | Part Number | Description |
|---|
| 1 |
69-5510 |
HOSE ASM Price: $77.25 |

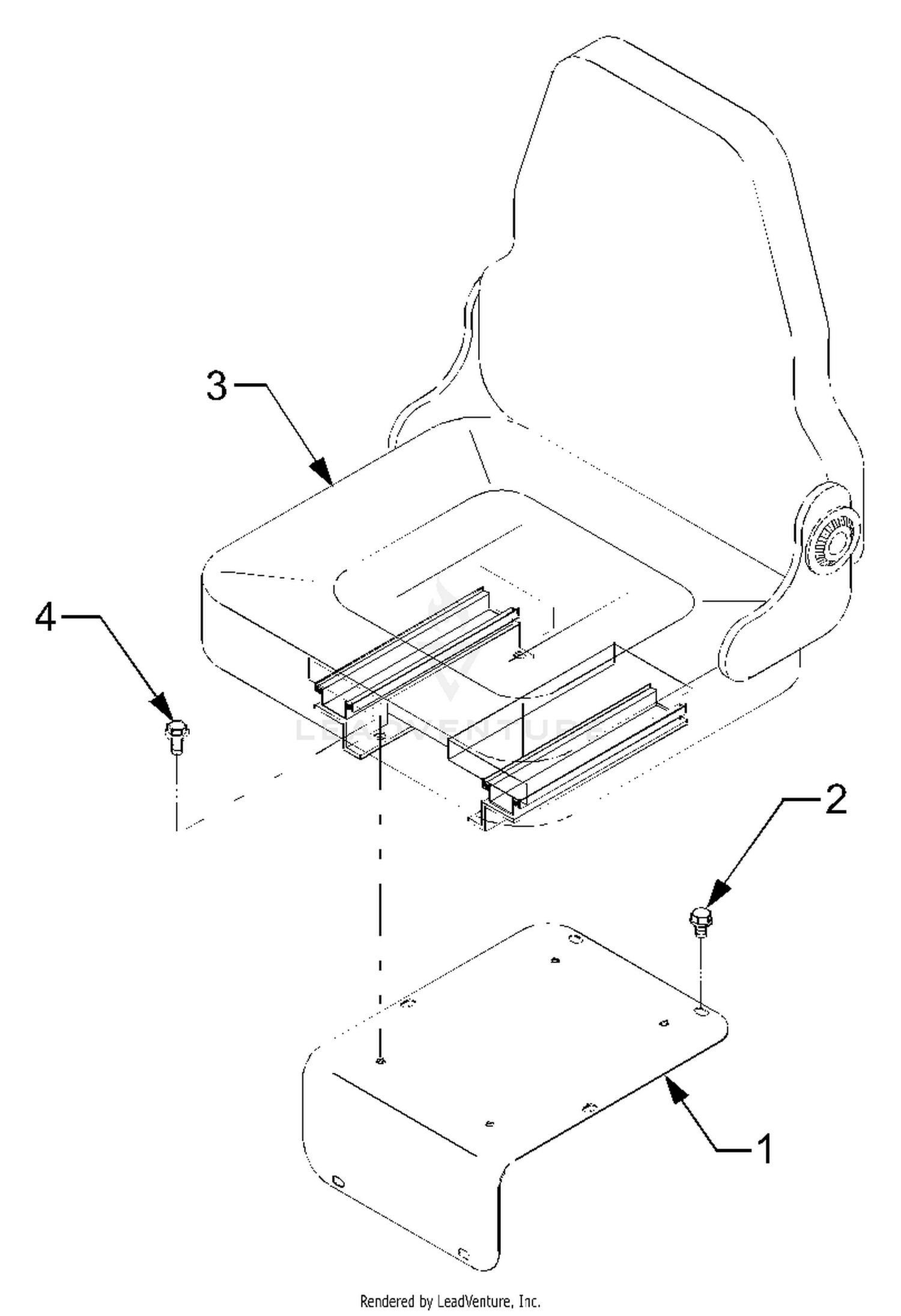

| 1 |
DDT468170421YW |
BRACKET-SEAT MOUNTING Not Available Price: |
| 2 |
340-68 |
FITTING-TEE, BULKHEAD Price: $36.00 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 2 |
DD-01125-50820 |
HEX BOLT Not Available Price: |
| 3 |
323-6 |
SCREW-HH Price: $0.66 |
| 3 |
DD-T4681-70702 |
SEAT ASSEMBLY Not Available Price: |
| 4 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 5 |
71-2590 |
SHAFT-PIVOT Price: $228.41 |
| 6 |
69-6470 |
BUSHING-CASTOR Price: $5.82 |
| 7 |
256-304 |
WASHER-THRUST Price: $3.94 |
| 8 |
32128-23 |
NUT-HF Price: $1.51 |
| 9 |
3290-216 |
WASHER Price: $3.83 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 11 |
3296-68 |
NUT-LOCK, NI Price: $14.67 |
| 11 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532400008. Price: $329.99 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 12 |
69-7960-01 |
SUPPORT-AXLE This part replaces 69-7960. Price: $461.54 |
| 13 |
69-8890 |
CAP-SPINDLE Price: $13.32 |
| 14 |
32151-10 |
RING-RETAINING Price: $0.81 |
| 15 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 15 |
529999102 |
TANK ASSY W/CAP 3 GAL CARB This part replaces 532414151. Price: $329.99 |
| 16 |
69-7420-01 |
DISCONTINUED This part replaces 69-7420. Price: Call Us |
| 17 |
93-0311-03 |
SPINDLE-WHEEL, LH This part replaces 93-0311. Price: $378.60 |
| 18 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 Price: $37.99 |
| 18 |
69-2990 |
STUD-WHEEL Price: $4.85 |
| 19 |
117-8969 |
HUB ASM This part replaces 69-2960. Price: $336.24 |
| 20 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 20 |
532177328 |
CONTROL.THROTTLE.LH.COBRA.KNOB This part replaces 532182937. Price: $24.99 |
| 21 |
254-92 |
CONE-BEARING, OUTER Price: $15.84 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 22 |
69-9880 |
TIRE (23X10.5-12) 6-PLY Price: $189.93 |
| 23 |
217-116 |
WHEEL Price: $258.19 |
| 24 |
23-7270 |
NUT-LUG Price: $10.37 |
| 25 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 26 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 27 |
69-2970 |
CAP-HUB Price: $20.74 |
| 28 |
3220-7 |
NUT-JAM Price: $4.09 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
254-107 |
CUP-BEARING, TAPERED Price: $9.93 |
| 31 |
254-106 |
CONE-BEARING, TAPERED Price: $19.51 |
| 32 |
69-2980 |
SEAL Price: $33.94 |
| 33 |
32136-13 |
NUT-SHH Price: $2.85 |
| 34 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 35 |
110-6141-03 |
RH TIE ROD END ASM This part replaces 2116-4. Price: $148.18 |
| 36 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 38 |
2412-7 |
CLAMP ASM Price: $23.32 |
| 39 |
110-6143-01 |
TIE ROD ASM This part replaces 3-3710. Price: $513.93 |
| 41 |
32136-2 |
NUT-SHH Price: $3.55 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
132-1308 |
HYD CYLINDER ASM This part replaces 98-0661. Price: $813.52 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 43 |
237-78 |
O-RING Price: $3.85 |
| 44 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 45 |
237-22 |
O-RING Price: $2.43 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 46 |
325-6 |
SCREW-HH Price: $1.42 |
| 47 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 48 |
340-70 |
NUT-LOCK Price: $2.10 |
| 49 |
95-6487-03 |
BRACKET-HOSE This part replaces 95-6487. Price: $87.30 |
| 50 |
69-6010 |
TUBE-HYD Price: $162.05 |
| 51 |
69-6020 |
TUBE-HYD Price: $138.98 |
| 52 |
237-21 |
O-RING Price: $0.70 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 Price: $5.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 109 |
532414114 |
CANNISTER, CARBON Price: $54.99 |
| 111 |
532420718 |
PURGE.LINE.36"REAR.CALIFORNIA Price: $6.99 |
