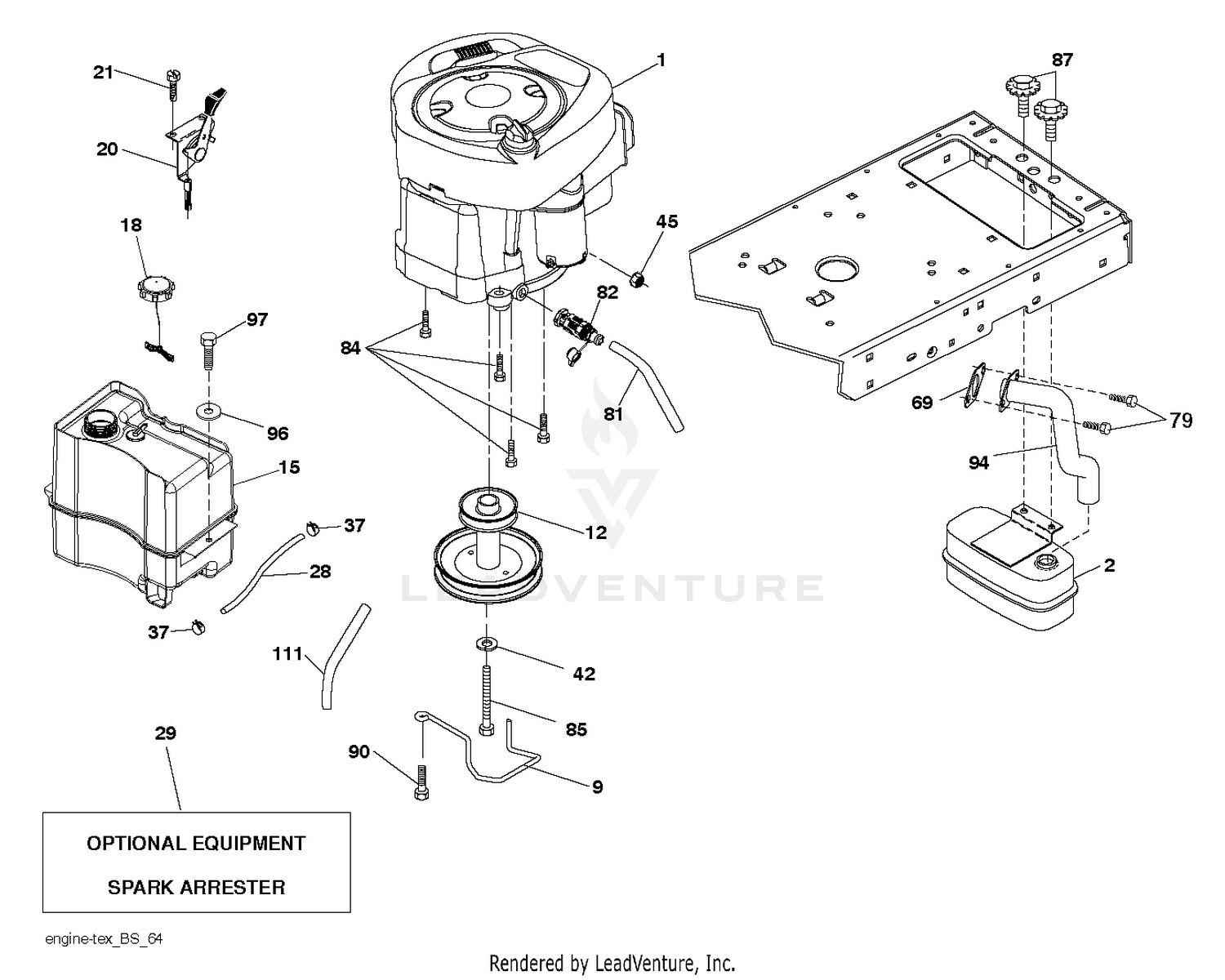

| Ref | Part Number | Description |
|---|
| 2 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $29.99 |
| 3 |
120-0404 |
BRACKET-HIGH HOC (LH) Price: $71.73 |
| 4 |
120-0405 |
BRACKET-HIGH HOC (RH) Price: $71.73 |
| 5 |
119-0626 |
SHIM-ROLLER Price: $3.23 |
| 6 |
106-9758 |
SCREW-CARR Price: $2.99 |
| 7 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 8 |
112-7451 |
SCREW-TAP Price: $2.17 |
| 9 |
48-9220 |
WASHER-PLAIN Price: $0.87 |
| 9 |
584908001 |
KEEPER BELT ENGINE This part replaces 532194320. Price: $2.99 |
| 10 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 11 |
322-16 |
SCREW-HH Price: $3.39 |
| 12 |
532405471 |
PULLY ENGINE Price: $64.99 |
| 15 |
532433003 |
TANK.ASM.1.5GAL.FRT.W/CAP.EPA Price: $119.99 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532438596. Price: $14.99 |
| 20 |
583045801 |
CNTRL.TH/CK.PADDL.20_2.BLK.#37 This part replaces 532170545. Price: $24.99 |
| 21 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 28 |
532401137 |
LINE.FUEL.20"FRONT.EMI Price: $9.99 |
| 29 |
532131780 |
Kit Spark Arrestor 1 25 Price: Call Us |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 45 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 69 |
532272293 |
Gasket Eng 1 313 Id Tin Plated (AYP part number) This part replaces 532165291. Price: $7.99 |
| 79 |
532192334 |
SCREW.SOCKET HD.5/16-1 Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $2.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $11.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 85 |
501606501 |
Speed Clip This part replaces 532173937. Price: $1.99 |
| 87 |
532171877 |
BOLT, 5/16-18 X 1 3/4 Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 94 |
581880901 |
EXHAUST.TUBE.B&S.28/31 This part replaces 532405450. Price: $17.99 |
| 96 |
819091416 |
WASHER Price: $3.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $2.99 |
