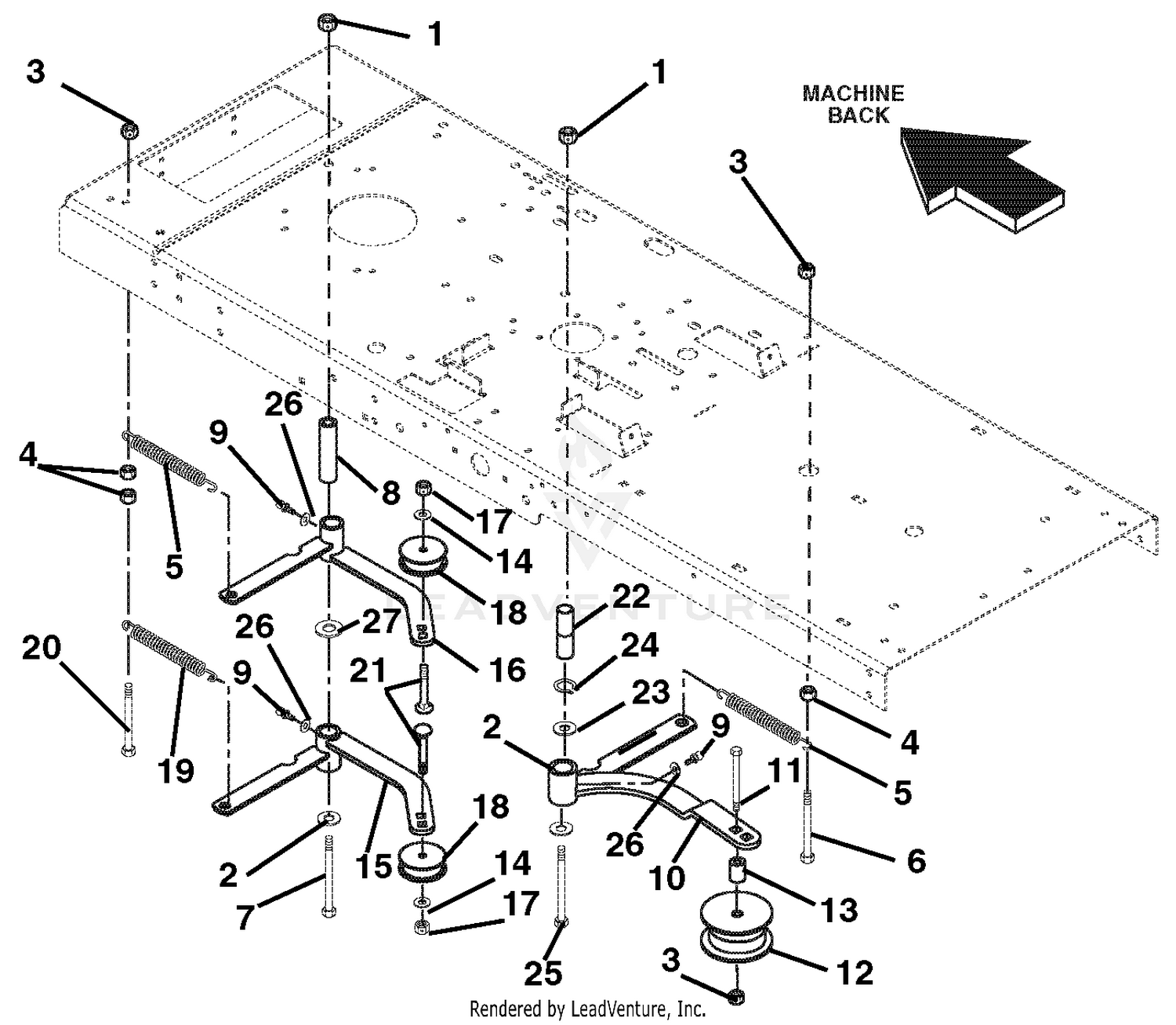

| Ref | Part Number | Description |
|---|
| 1 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
| 2 |
06401012 |
WSHR,FLT .563X1.375X.109 ZCC This part replaces 06442000. Price: $2.45 |
| 3 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 4 |
06500917 |
NUT-STD .375-16 G2 ZCC This part replaces 06529400. Price: $0.95 |
| 5 |
08300512 |
SPRING, EXTENSION This part replaces 08336100. Price: $15.45 |
| 7 |
05901632 |
BLT,HEX .50-13X5.50 G5 ZCC This part replaces 05964100. Price: $6.45 |
| 8 |
01557200 |
SPACER, IDLER Price: $42.45 |
| 9 |
07012600 |
FTG-LUBE .25-28X.256 YWZC This part replaces 411027. Price: $3.45 |
| 10 |
01582700 |
WELDMENT, IDLER ARM Price: $130.95 |
| 12 |
07324700 |
IDLER 4.0" DIA Price: $66.45 |
| 14 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
| 15 |
01557300 |
IDLER ARM WLDM'T TRANSAXLE Price: $91.95 |
| 16 |
01557400 |
WLDM'T JACKSHAFT IDLER ARM Price: $128.00 |
| 17 |
06500914 |
NUT-LK-CTR-JAM .375-16 GB ZCC This part replaces 06537200. Price: $0.95 |
| 18 |
07327100 |
PULLEY, IDLER 4.00 Price: $33.95 |
| 19 |
08300728 |
SPRING- EXTENSION This part replaces 08336000. Price: $24.95 |
| 21 |
06200416 |
BLT, RHSN .38-16X1.50 G5 ZCC This part replaces 06224200. Price: $3.95 |
| 22 |
01548400 |
SPACER, IDLER Price: $32.10 |
| 23 |
06436900 |
WSHR-FL-STL .880X1.250X.062YWZ Price: $1.95 |
| 24 |
05702600 |
RG-RTNG-EXT .875X.042 Price: $1.95 |
| 25 |
05901932 |
BLT, HEX .50-13X4.50 G5 ZCC This part replaces 05962300. Price: $5.95 |
