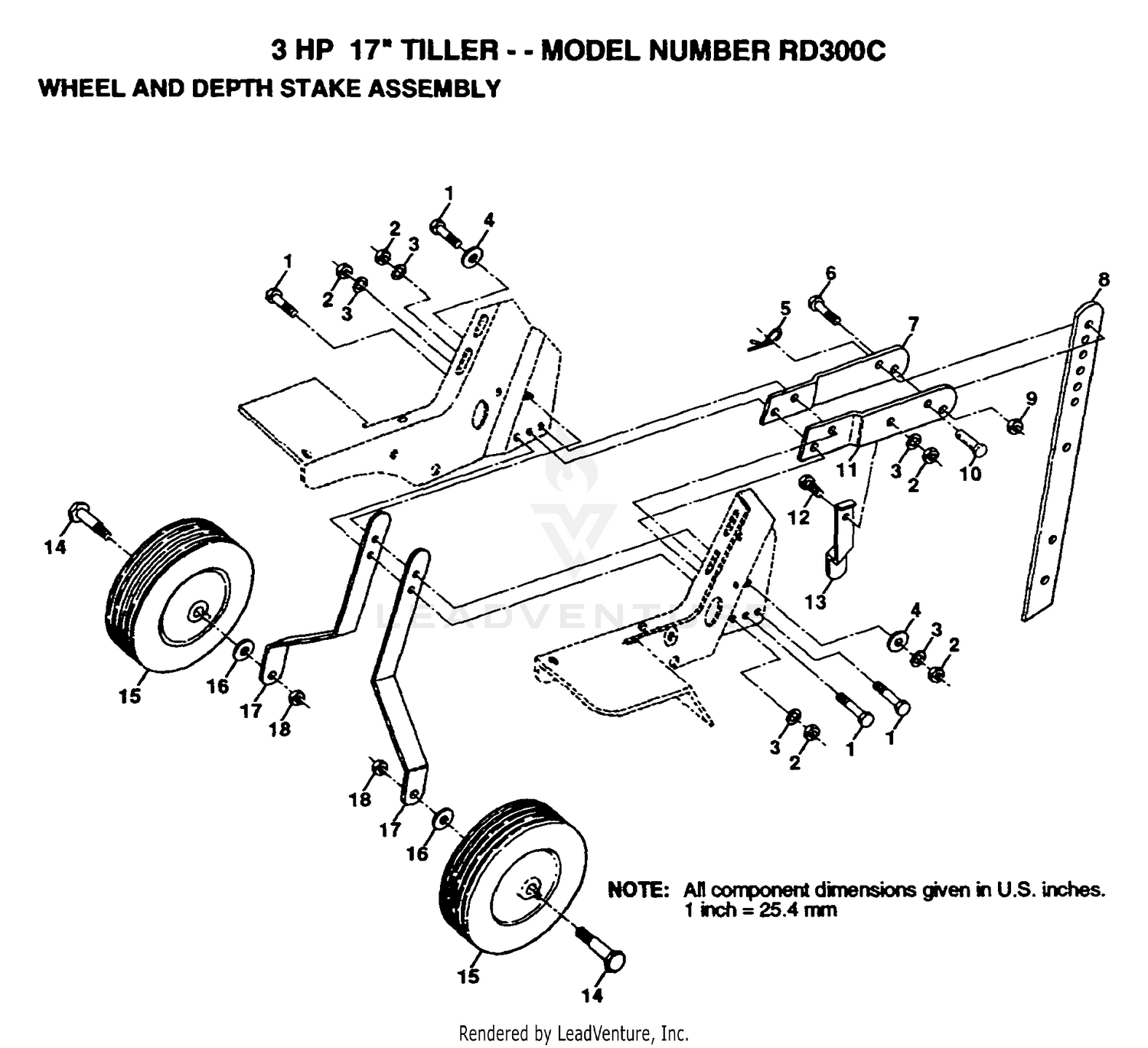

| Ref | Part Number | Description |
|---|
| 1 |
74760520 |
BOLT Price: Call Us |
| 2 |
73220500 |
NUT.HEX.5/16-18 Price: Call Us |
| 3 |
10040500 |
LOCKWASHER Price: Call Us |
| 4 |
19121414 |
WASHER Price: Call Us |
| 5 |
4921H |
SPRING.RETAINER Price: Call Us |
| 6 |
74610624 |
BOLT.3/8-24X1-1/2 Price: Call Us |
| 7 |
318J |
STAKE.SUPT.TILLER Price: Call Us |
| 8 |
9193R |
SUB= 9193R500 Price: Call Us |
| 9 |
7810H |
GRIPCO NUT Price: Call Us |
| 10 |
112-8415 |
PISTON ASM This part replaces 98-9470. Price: $456.30 |
| 10 |
115-4127 |
PISTON KIT This part replaces 98-9469. Price: $518.71 |
| 10 |
9551R |
DRILLED RIVET RT Price: Call Us |
| 11 |
317J |
SUB= 317J500 Price: Call Us |
| 12 |
74760512 |
BOLT Price: Call Us |
| 13 |
325J |
STAKE SPRING CT Price: Call Us |
| 14 |
121117X |
BOLT SHOULDER Price: Call Us |
| 15 |
9186R |
SUB= STD333760 Price: Call Us |
| 16 |
19131311 |
WASHER Price: Call Us |
| 17 |
9189R |
SUB= 674H4 Price: Call Us |
| 20 |
98-9618 |
PISTON RING ASM (STD) Price: $102.14 |
| 20 |
98-9619 |
PISTON RING ASM (0.5MM) Price: $96.35 |
| 30 |
98-9513 |
PIN-PISTON Price: $13.17 |
| 40 |
98-9514 |
CIRCLIP-PIN, PISTON Price: $2.79 |
| 50 |
117-7586 |
CONNECTING ROD ASM This part replaces 98-9516. Price: $547.99 |
| 60 |
115-3014 |
BUSHING-PIN, PISTON This part replaces 98-9515. Price: $19.81 |
| 70 |
98-9517 |
BOLT-ROD, CONNECTING Price: $10.31 |
| 80 |
117-7588 |
METAL-CRANKPIN (-0.4MM) This part replaces 98-9520. Price: $49.06 |
| 80 |
98-9519 |
BEARING-ROD (-0.2MM) Price: $43.73 |
| 80 |
98-9553 |
BEARING-ROD (STD) This part replaces 98-9518. Price: $52.92 |
| 90 |
98-9642 |
CRANKSHAFT ASM Price: $4,332.74 |
| 100 |
110-3729 |
BALL This part replaces 98-7473. Price: $0.69 |
| 110 |
98-9532 |
GEAR-CRANKSHAFT Price: $169.43 |
| 120 |
98-9666 |
KEY Price: $3.58 |
| 130 |
98-9542 |
GEAR-DRIVE, OIL PUMP Price: $89.04 |
| 140 |
98-9522 |
SLEEVE-CRANKSHAFT Price: $116.47 |
| 150 |
98-9521 |
COLLAR-CRANKSHAFT Price: $84.21 |
| 160 |
105-3783 |
O-RING Price: $6.33 |
| 170 |
112-7005 |
BEARING-MAIN (STD) This part replaces 98-9523. Price: $66.99 |
| 170 |
98-9528 |
BEARING-MAIN (-0.2MM) Price: $15.04 |
| 170 |
98-9529 |
BEARING-MAIN (0.4MM) Price: $40.04 |
| 180 |
127-0433 |
METAL-CRANKSHAFT (-0.2MM) This part replaces 98-9530. Price: $60.46 |
| 180 |
98-9524 |
METAL-CRANKSHAFT (STD SET) Price: $62.26 |
| 180 |
98-9531 |
BEARING-MAIN (0.4MM) Price: $39.97 |
| 190 |
112-7039 |
METAL-CRANKSHAFT (0.2MM) This part replaces 105-3719. Price: $60.46 |
| 190 |
112-7040 |
METAL-CRANKSHAFT (-0.4MM) This part replaces 105-3720. Price: $66.64 |
| 190 |
115-4121 |
METAL-CRANKSHAFT (STD) This part replaces 98-9556. Price: $86.06 |
| 200 |
127-0416 |
METAL-SIDE (+0.2MM) This part replaces 98-9414. Price: $21.04 |
| 200 |
98-9413 |
BEARING-THRUST (STD) Price: $16.90 |
| 200 |
98-9415 |
BEARING-THRUST (0.4MM) Price: $9.77 |
| 210 |
127-0437 |
METAL-SIDE (+0.2MM) This part replaces 98-9689. Price: $18.42 |
| 210 |
98-9688 |
BEARING-THRUST (STD) Price: $16.90 |
