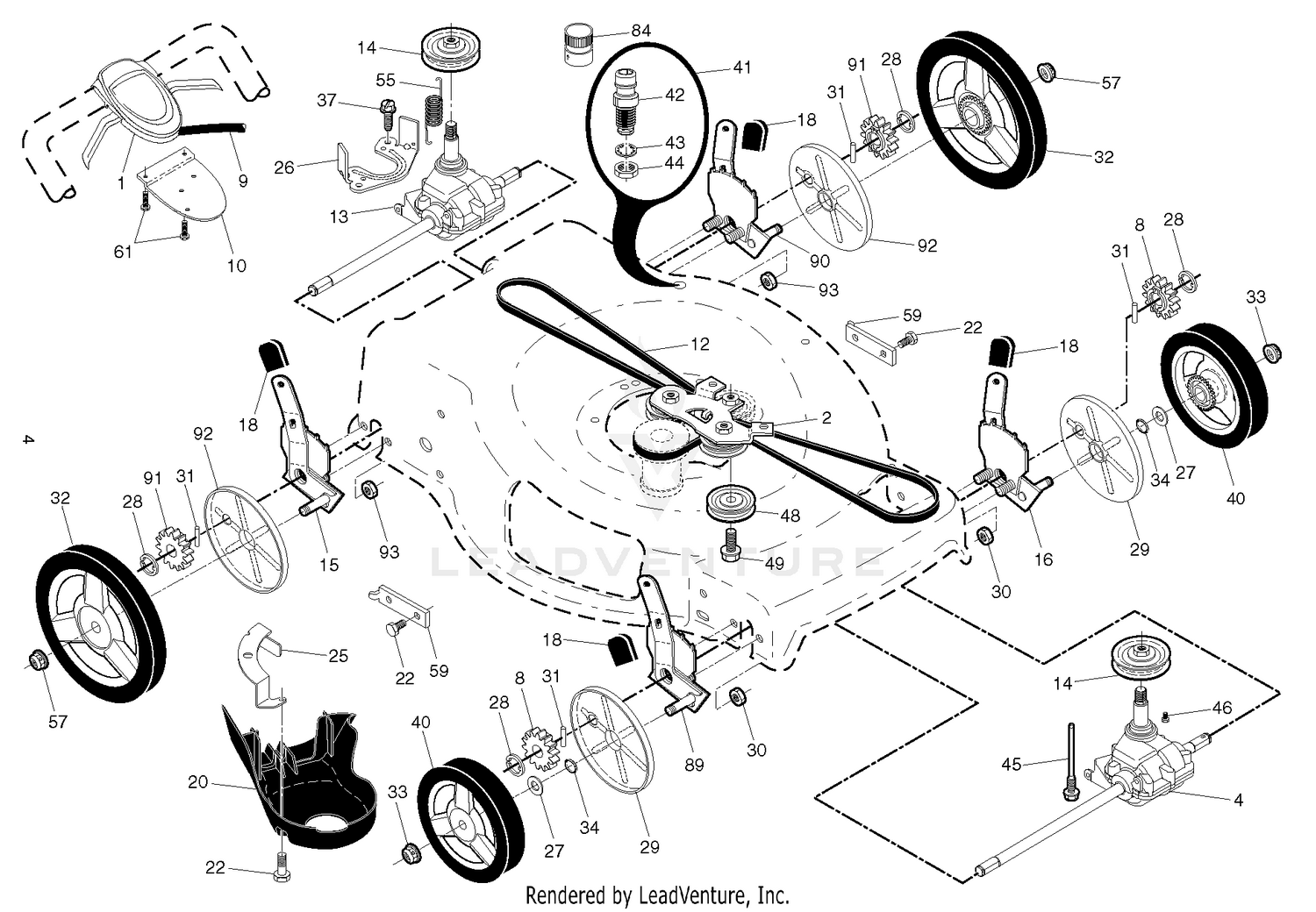

| Ref | Part Number | Description |
|---|
| 1 |
501407502 |
CONTROL.AW2.22+AWD.BS.HUSQ.E/F Price: $44.99 |
| 2 |
586072802 |
BRACKET.ASM.AWD.BZP.BLACK Price: $6.99 |
| 4 |
589599201 |
TRANSMISSION.22+.AWD.FRT Price: $119.99 |
| 8 |
532404835 |
PINIION.14.TOOTH.RGD Price: $5.99 |
| 9 |
581952101 |
CABLE.DRIVE.RWD.WALK. Price: $29.99 |
| 10 |
587249302 |
BRACKET DUAL TRIGGER CONTROL Price: $2.99 |
| 12 |
580364610 |
BELT V3L 64.10 CLUTCHING COVER This part replaces 580364603. Price: $14.99 |
| 13 |
581680801 |
TRANSMISSION.22+AWD.WALK.MOWER Price: $129.99 |
| 14 |
586963002 |
PULLEY AWD/RGD, SCREW-ON AWD/R This part replaces 586963001. Price: $9.99 |
| 18 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 20 |
580806901 |
COVER.REAR.DRIVE.22+2013 Price: $19.99 |
| 22 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 25 |
532426065 |
BRACKET.DRIVE.COVER.RGD.BZP Price: $6.99 |
| 26 |
581152502 |
BRACKET.TRAN.BELTKEEPER.22+RGD Price: $5.99 |
| 27 |
532067725 |
WASHER FLUT Price: $5.99 |
| 28 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 29 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK Price: $5.99 |
| 30 |
596041001 |
Hardware This part replaces 532438130. Price: $2.99 |
| 32 |
501067001 |
WHEEL.11.H3SP.AWD.LC.460.BB2 Price: $59.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 34 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 37 |
532163409 |
SCREW Price: $3.99 |
| 40 |
580365301 |
WHEEL.8".AWD.3SP.EXT.DR.GREY Price: $37.99 |
| 41 |
532438489 |
KIT.WASH-OUT.PORT.ZINC.WALK Price: $14.99 |
| 42 |
532438489 |
KIT.WASH-OUT.PORT.ZINC.WALK This part replaces 532434994. Price: $14.99 |
| 43 |
532415585 |
WASHER.LOCK.INTERNAL.TOOTH Price: $2.99 |
| 44 |
532415586 |
LOCKNUT.HEX.WITH.O-RING Price: $4.99 |
| 45 |
587438201 |
SCREW.HI-LO.5/16-14 X 4.10 Price: $2.99 |
| 46 |
584299401 |
SCREW.HI-LO. 5/16 X 1.00 Price: $2.99 |
| 48 |
587973001 |
PULLEY.ASM.22+ AWD Price: $19.99 |
| 49 |
581334501 |
SCREW Price: $11.99 |
| 55 |
581351301 |
SPRING.RETURN.AUTO. Price: $4.99 |
| 57 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $3.99 |
| 59 |
532442113 |
BRACKET.SUPPORT.22+RWGD.BZP Price: $3.99 |
| 61 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 84 |
532416405 |
COUPLING.QUICK CONNECT Price: $8.99 |
| 89 |
581497908 |
ADJUSTER.ASM.22+FGD.RF /AWD RT Price: $19.99 |
| 90 |
587486501 |
ADJUSTER.ASM.HW.AWD.QK.LR.BZ Price: $22.99 |
| 91 |
587232401 |
PINION.16.TEETH.HW.AWD.REAR Price: $3.99 |
| 92 |
587251701 |
COVER.DUST.WHEEL.HW.AWD.REAR Price: $6.99 |
| 93 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
