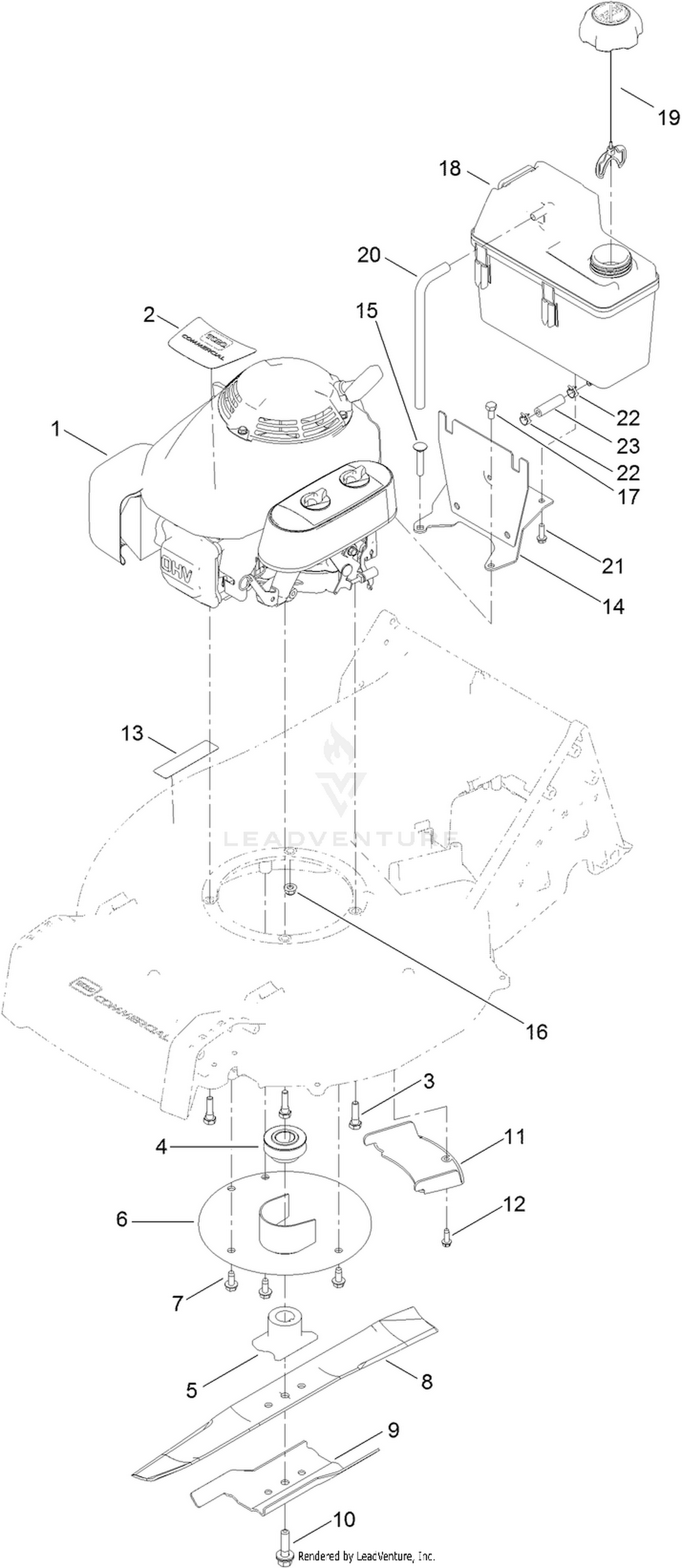

Engine and Blade Assembly
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 125-8405 | DECAL-ENGINE, HONDA Price: $4.42 |
| 3 | 125-1074 | SCREW-HH Price: $2.22 |
| 4 | 125-8396 | PULLEY-DRIVER Price: $31.78 |
| 5 | 125-1004 | DRIVER-BLADE Price: $22.28 |
| 6 | 125-8370 | PROTECTOR-CRANKSHAFT Price: $67.71 |
| 7 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 8 | 133-8183-03 | BLADE-RECYCLING, 21IN Price: $19.68 |
| 9 | 125-1069-03 | ACCELERATOR-BLADE Price: $11.38 |
| 10 | 125-2466 | BOLT-BLADE Price: $2.20 |
| 11 | 125-1024 | COVER-BELT Price: $7.42 |
| 12 | 49-2040 | SCREW-HWHTF Price: $1.99 |
| 13 | 133-8062 | DECAL-ARRESTOR, SPARK Price: $2.39 |
| 14 | 119-7837-03 | MOUNT-TANK Price: $46.50 |
| 15 | 3230-5 | BOLT-CAR Price: $0.54 |
| 16 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 17 | 3210-2 | SCREW-HH Price: $0.41 |
| 18 | 114-0280 | TANK-FUEL Price: $91.81 |
| 19 | 137-4127 | CAP-FUEL Price: $22.05 |
| 20 | 115-0962 | HOSE-VENT, CANISTER Price: $5.77 |
| 21 | 46-8091 | SCREW-HWH Price: $3.59 |
| 22 | 2412-98 | CLAMP-HOSE Price: $1.39 |
