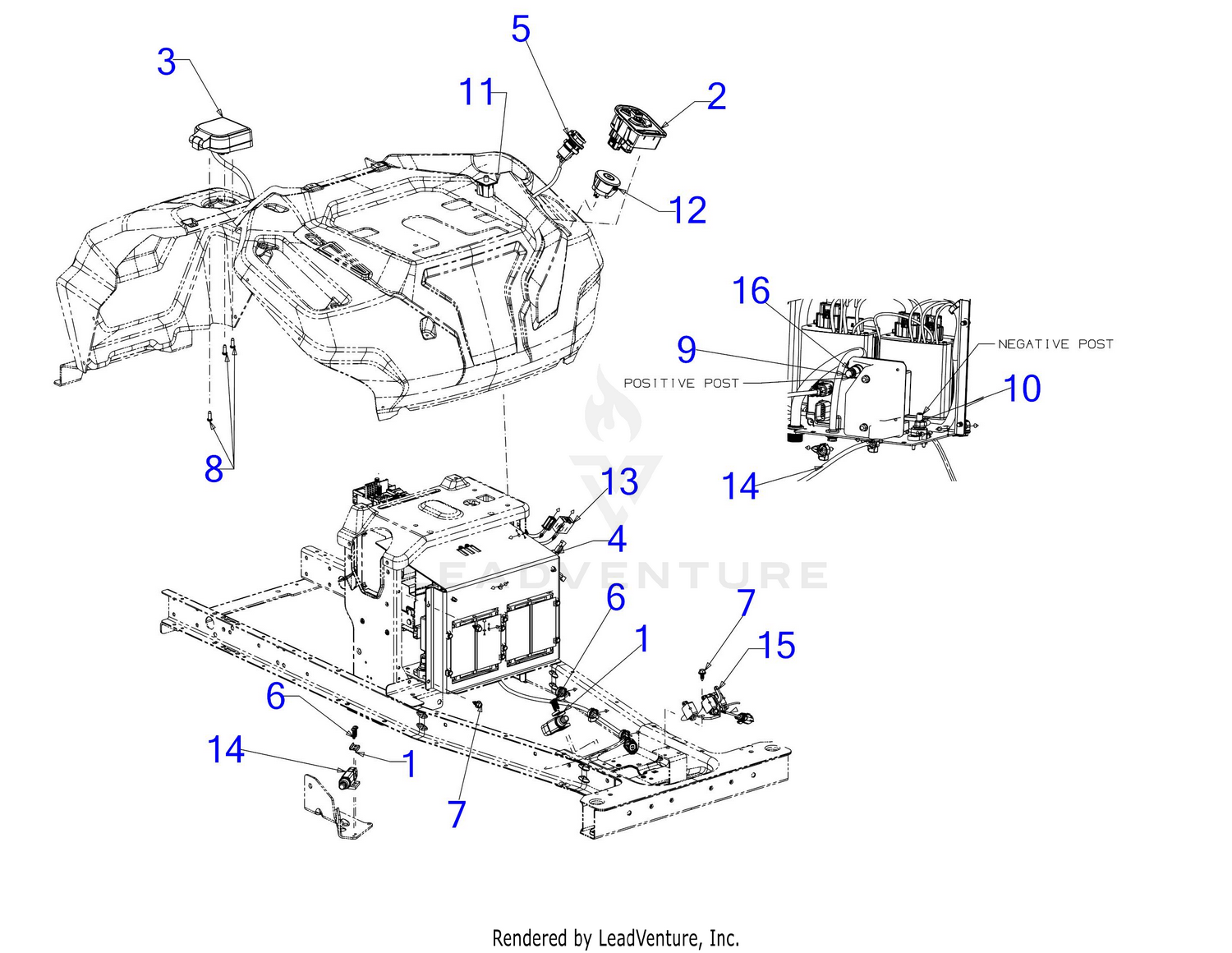

| Ref | Part Number | Description |
|---|
| 1 |
17962 |
PLATE-SWITCH Price: $4.36 |
| 2 |
753-11121B |
VCM SERVICE KIT (CR12/ECR12) This part replaces 925-05174. Price: $396.83 |
| 3 |
625-05181 |
CHARGE PORT PLUG ASSEMBLY Price: $351.44 |
| 4 |
753-10264 |
CONTROL PANEL/DECK MOTOR KIT This part replaces 925-05193. Price: $1,411.67 |
| 5 |
625-05198A |
USB RECEPTACLE 12V W/JMPR Not Available This part replaces 625-05198. Price: |
| 6 |
791-182195 |
SCREW #10-24X11/16 T-25 Price: $6.20 |
| 7 |
710-1652 |
SCREW 1/4-20X.625 Price: $3.86 |
| 8 |
710-1823 |
SCREW #12-16 x .625 Price: $3.14 |
| 9 |
710-3013 |
SCREW 1/4-20X.5 GR5 Price: $4.02 |
| 10 |
712-04065 |
NUT Price: $3.68 |
| 11 |
725-05472 |
SEAT SWITCH Price: $16.76 |
| 12 |
925-05476 |
KEY SWITCH 2 POSITION Price: $41.01 |
| 13 |
925-07269B |
MAIN WIRING HARNESS This part replaces 925-07269. Price: $268.00 |
| 14 |
725-07432 |
PLUNGER SWITCH-NO/NO Price: $42.18 |
| 15 |
725-07539B |
THROTTLE SENSOR (DUEL CLIP) This part replaces 725-07539. Price: $150.56 |
| 16 |
936-0329 |
LOCK WASHER Price: $3.90 |
