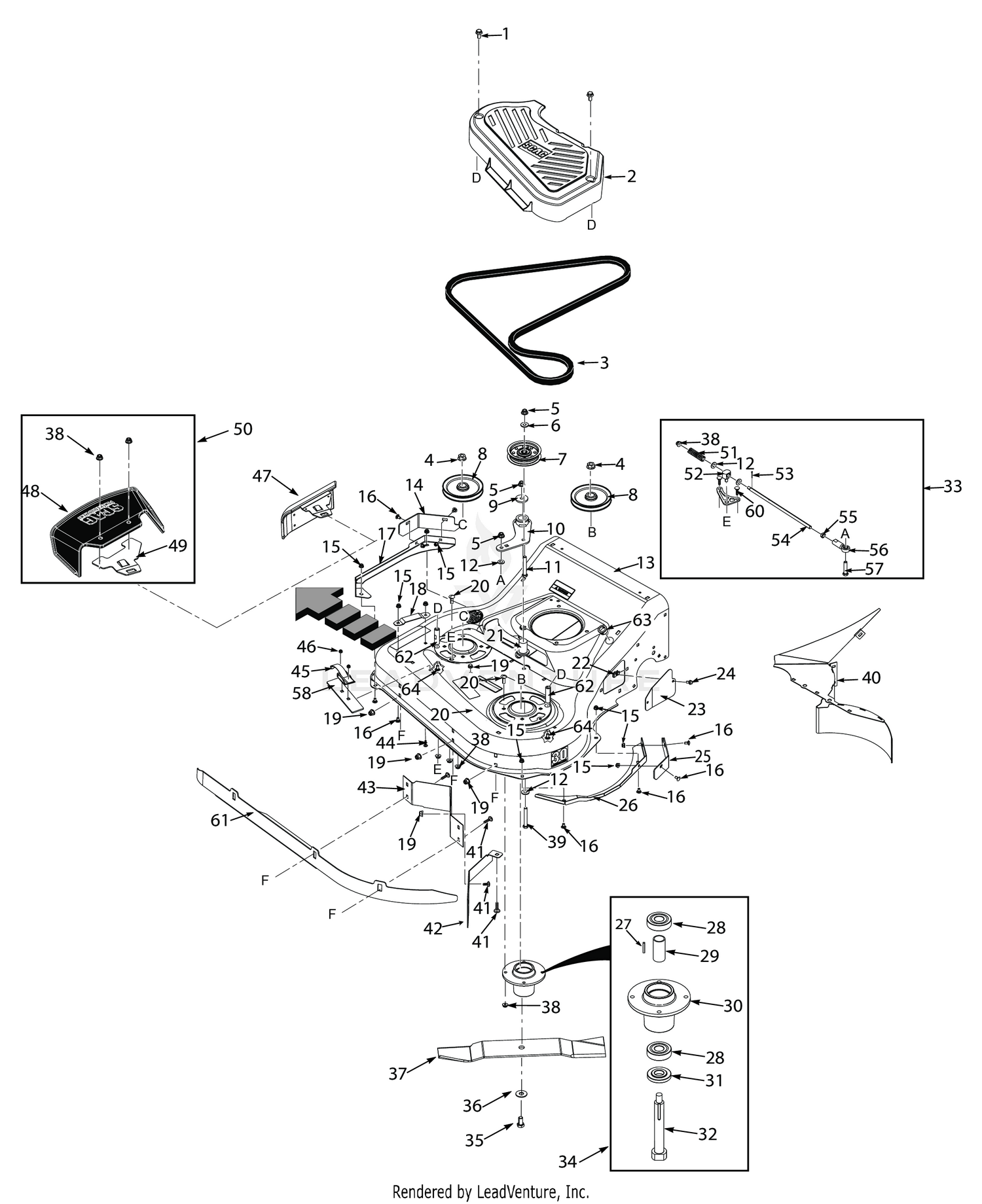

| Ref | Part Number | Description |
|---|
| 1 |
04013-05 |
Screw, 3/8-16 x 3/4" (61H) Price: Call Us |
| 1 |
5-3555 |
Transaxle Price: Call Us |
| 2 |
32121-36 |
PIN-SPRING Price: $2.56 |
| 2 |
487693 |
Belt Cover Price: Call Us |
| 3 |
3296-19 |
NUT-HEX This part replaces 32146-11. Price: $0.65 |
| 3 |
487918 |
Belt , Cutter Deck SFC30 Price: Call Us |
| 4 |
04112-05 |
Locknut, 1/2-13 Spiral Lock Price: Call Us |
| 4 |
8-1630 |
TRANSAXLE PULLEY WA *B Price: Call Us |
| 5 |
04117-02 |
Nut, Flange Elastic Stop Nut, 3/8-16 Price: Call Us |
| 6 |
04043-04 |
Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us |
| 6 |
3246-3 |
SCREW-HSH Price: $12.70 |
| 7 |
486869 |
Pulley, Idler 3-1/2" Price: Call Us |
| 7 |
5-3557 |
Brake Drum Price: Call Us |
| 8 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 8 |
487849 |
Pulley, Deck Price: Call Us |
| 9 |
04041-11 |
Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge Price: Call Us |
| 9 |
5-0738 |
KEY Price: $13.57 |
| 10 |
11-1579 |
DISCONTINUED-SEE MPV NOTES This part replaces 215-73. Price: Call Us |
| 11 |
04001-22 |
Capscrew, Hex Head 3/8-16 x 2.75" Price: Call Us |
| 11 |
215-76 |
DISCONTINUED Price: Call Us |
| 12 |
04040-05 |
Flatwasher, 3/8 (.406 x .812 x .065) Price: Call Us |
| 12 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 13 |
3210-3 |
SCREW-HH Price: $5.29 |
| 13 |
463623 |
Cutter Deck w/Decals Price: Call Us |
| 14 |
329-3 |
SCREW-HH Price: $0.22 |
| 14 |
429669 |
Guard, RH Price: Call Us |
| 15 |
04117-03 |
Nut, Flanged Elastic Stop 1/4-20 Price: Call Us |
| 15 |
242-34 |
STUD-DRIVE Price: $11.61 |
| 16 |
04003-07 |
Bolt, Carriage 1/4-20 x 1/2" Price: Call Us |
| 16 |
3-6951 |
Brake Drum Price: Call Us |
| 17 |
429519 |
Deck Guard, RH Price: Call Us |
| 17 |
5-3803 |
Wheel Hub Price: Call Us |
| 18 |
231-101 |
TIRE (23X8.5-12) 4-PLY TURF SAVER This part replaces 231-41. Price: $147.85 |
| 18 |
429845 |
Mounting Bracket, Side Discharge Price: Call Us |
| 19 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 19 |
32547 |
Lockwasher Price: Call Us |
| 20 |
04003-04 |
Bolt, Carriage 5/16-18x1" (large frame units only) Price: Call Us |
| 20 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 21 |
242-35 |
NUT-WHEEL Price: $9.04 |
| 21 |
431260 |
Pivot, Idler Price: Call Us |
| 22 |
04110-01 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 22 |
217-102 |
Rim Price: Call Us |
| 23 |
429731 |
Door, Side Access Price: Call Us |
| 23 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 24 |
04017-04 |
CAP SCREW, 1/4-20 X 1/2" SERRATED FLANGE HEX Price: Call Us |
| 24 |
215-74 |
DISCONTINUED Price: Call Us |
| 25 |
32153-3 |
NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 25 |
429668 |
Guard, LH Price: Call Us |
| 26 |
3-7035 |
Bracket Price: Call Us |
| 26 |
429534 |
Guard, LH Price: Call Us |
| 27 |
04063-05 |
KEY, 3/16 X 3/16 X 1-1/2 Price: Call Us |
| 27 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 28 |
3219-1 |
NUT-HEX Price: $0.47 |
| 28 |
486710 |
Bearing Price: Call Us |
| 29 |
3220-1 |
NUT-JAM Price: $0.99 |
| 29 |
431115 |
Spacer, Bearing Price: Call Us |
| 30 |
3272-1 |
PIN-COTTER Price: $0.25 |
| 30 |
431112 |
Housing, Spindle Price: Call Us |
| 31 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black Price: Call Us |
| 31 |
282-17 |
YOKE Price: $35.96 |
| 32 |
283-3 |
PIN-CLEVIS Price: $0.20 |
| 32 |
431113 |
Spindle Shaft Price: Call Us |
| 33 |
3-6918 |
BRAKE CABLE ASM Price: Call Us |
| 33 |
488214 |
Linkage Assembly, Idler Spring Price: Call Us |
| 34 |
3-7036 |
U-Bolt Price: Call Us |
| 34 |
463271 |
Spindle Assembly Price: Call Us |
| 35 |
04001-57 |
Bolt, Hex Head 1/2-13 x 1" Price: Call Us |
| 35 |
3-6945 |
Brake Arm L.H. Price: Call Us |
| 36 |
04043-08 |
Washer, Flat, 1/2-.562 x 1.375 x .109 HD Price: Call Us |
| 36 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 37 |
329-7 |
SCREW-HH Price: $0.22 |
| 37 |
486882 |
Cutter Blade, 15-1/4" Price: Call Us |
| 38 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 38 |
3296-3 |
NUT-LOCK Price: $0.54 |
| 39 |
04001-22 |
Capscrew, Hex Head 3/8-16 x 2.75" Price: Call Us |
| 39 |
99-5652 |
BRAKE ASM & LEVER This part replaces 3-6944. Price: $179.21 |
| 40 |
453466 |
Rear Baffle Wlmt Price: Call Us |
| 41 |
04003-14 |
Carriage Bolt, 5/16-18 x 1/2" Price: Call Us |
| 42 |
429573 |
Baffle, Rear Discharge Price: Call Us |
| 43 |
429574 |
Baffle, Rear Discharge Price: Call Us |
| 44 |
04003-43 |
Bolt, Carriage #10-24 x 1/2" Price: Call Us |
| 45 |
481309 |
LATCH, HOOD Price: Call Us |
| 46 |
04021-26 |
Nut, Elastic Stop #10-24 Price: Call Us |
| 47 |
487886 |
Blockoff Plate, Side Discharge Price: Call Us |
| 48 |
486888 |
Discharge Chute, 30 Price: Call Us |
| 49 |
453575 |
WLMT, Chute MTG Price: Call Us |
| 50 |
463634 |
Discharge Chute Assembly Price: Call Us |
| 51 |
484535 |
Spring, Brake Price: Call Us |
| 52 |
488216 |
Swivel, Brake Price: Call Us |
| 53 |
04061-02 |
Pin, Cotter 3/32 x .75" Price: Call Us |
| 54 |
04004-64 |
Stud - Tabulated, Price: Call Us |
| 55 |
04020-25 |
Nut, 3/8-24 UNF R.H. Thread Price: Call Us |
| 56 |
482330 |
Rod End, 3/8-24 RH Female Price: Call Us |
| 57 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 58 |
4200807 |
Plate, Latch Spacer Price: Call Us |
| 59 |
4200689 |
Idler Spring Rod MTG Price: Call Us |
| 60 |
04003-37 |
Bolt, Carriage 5/16-18 x 1-1/4" Price: Call Us |
| 61 |
4200524 |
Baffle, Lower Price: Call Us |
| 62 |
431282 |
Standoff, Belt Cover Price: Call Us |
| 63 |
486019 |
Bushing, Thick Panel Snap - 1" Price: Call Us |
