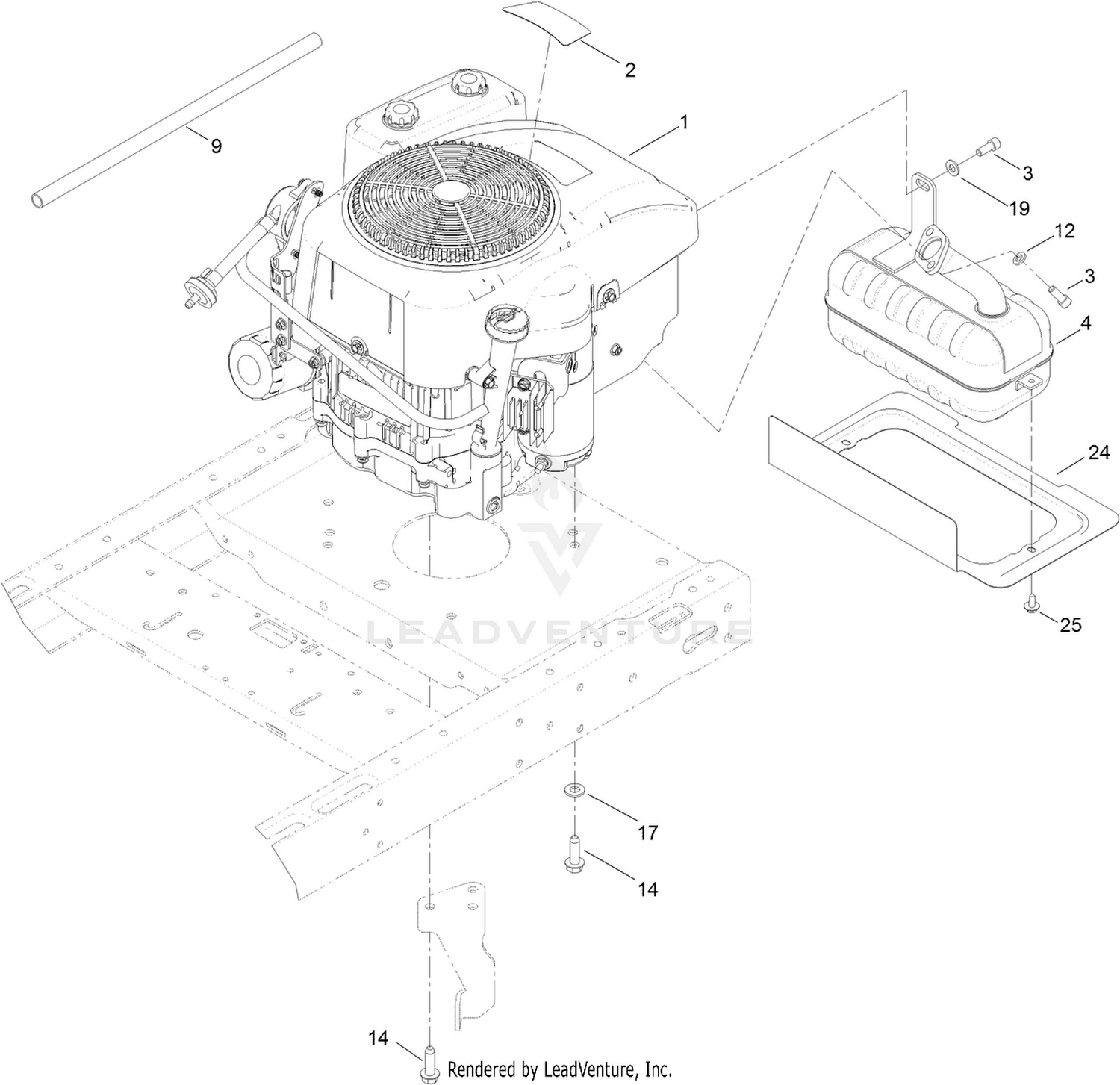

Engine and Muffler Assembly
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 133-9971 | ENGINE-1P92F-1 This part replaces 120-4335. Price: $1,172.06 |
| 2 | 125-1700 | DECAL-ENGINE Price: $6.35 |
| 3 | 3274-10 | SCREW-HSH Price: $0.47 |
| 4 | 130-0691 | MUFFLER This part replaces 117-7412. Price: $80.05 |
| 9 | 106-7022 | TUBE-DRAIN, OIL Price: $8.99 |
| 12 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 14 | 32144-109 | SCREW-THD Price: $1.29 |
| 17 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 19 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 24 | 121-2973-03 | SHIELD-HEAT Price: $21.75 |
