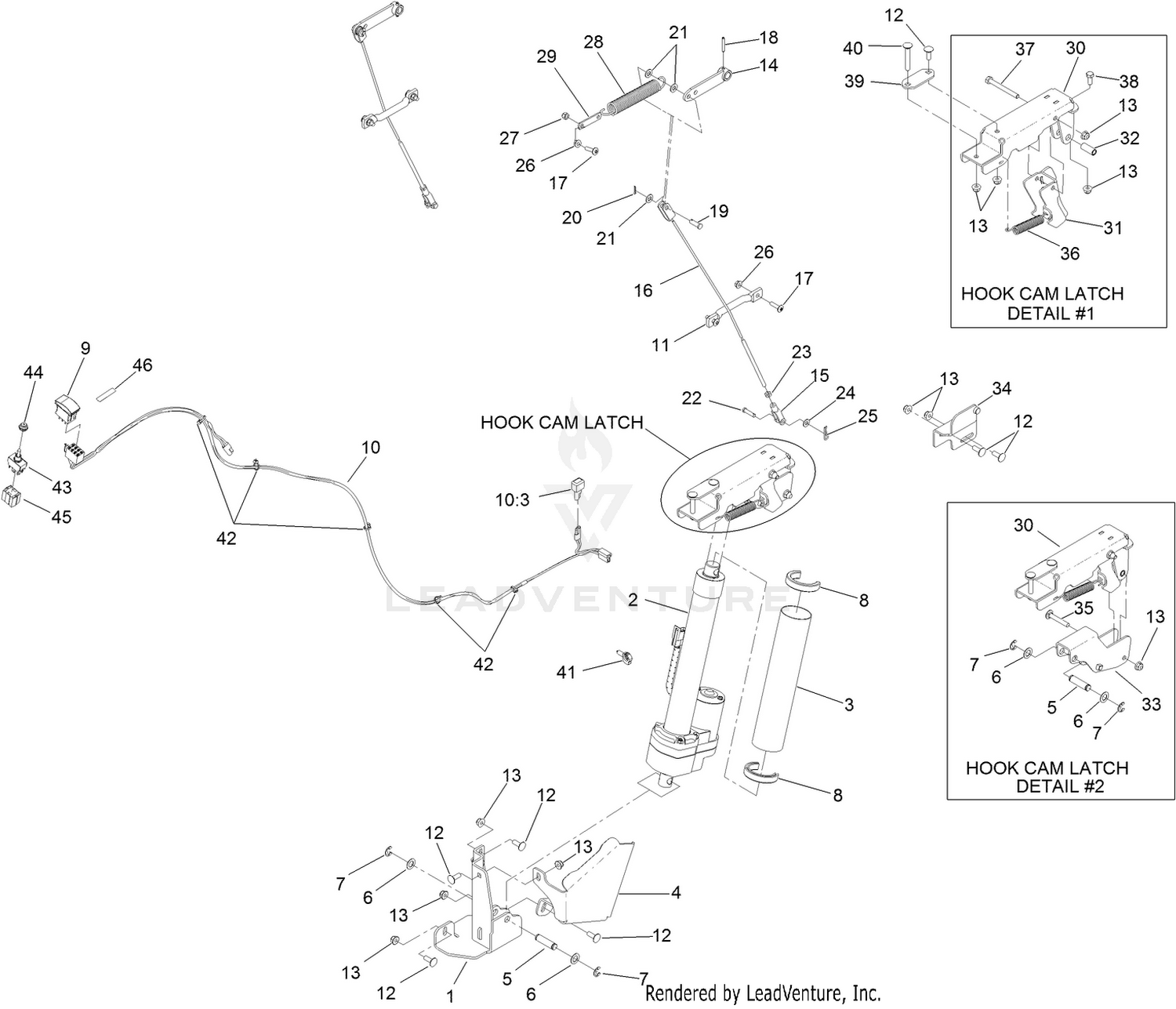

| Ref | Part Number | Description |
|---|
| 1 |
116-8678-03 |
BRACKET-HOPPER LIFT Price: $111.99 |
| 2 |
116-8402 |
ACTUATOR Price: $1,000.99 |
| 3 |
116-9008-03 |
TUBE-HEAT SHIELD Price: $96.99 |
| 4 |
116-8995-03 |
BRACKET-ACTUATOR SHIELD Price: $35.99 |
| 5 |
116-8997 |
PIN-CLEVIS Price: $32.99 |
| 6 |
36-4780 |
WASHER-PLAIN Price: $7.09 |
| 7 |
32120-47 |
RING-RETAINING, EXTERNAL Price: $1.19 |
| 8 |
1-413541 |
TRIM-LOK Price: $4.59 |
| 9 |
100-1535 |
SWITCH Price: $78.99 |
| 10 |
116-9561 |
HARNESS-WIRE Price: $141.99 |
| 11 |
103-8209 |
GUIDE-CABLE Price: $18.99 |
| 12 |
3230-10 |
BOLT-CARR Price: $3.49 |
| 13 |
104-8300 |
NUT-HF, NI Price: $0.89 |
| 14 |
103-8190 |
ARM-DOOR Price: $52.99 |
| 15 |
103509 |
YOKE Price: $43.99 |
| 16 |
103-8194 |
CABLE ASM Price: $68.99 |
| 17 |
32105-32 |
SCREW-TTH Price: $1.29 |
| 18 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.59 |
| 19 |
1-808280 |
PIN-CLEVIS Price: $2.29 |
| 20 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 21 |
3256-23 |
WASHER-PLAIN Price: $1.99 |
| 22 |
283-26 |
PIN Price: $4.08 |
| 23 |
3220-1 |
NUT-JAM Price: $0.99 |
| 24 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 25 |
1-806003 |
PIN-COTTER Price: $1.39 |
| 26 |
32128-33 |
NUT-HF Price: $0.69 |
| 27 |
3296-42 |
NUT-LOCK, NI Price: $0.39 |
| 28 |
106-2177 |
SPRING-EXTENSION Price: $13.99 |
| 29 |
116-9011 |
PLATE-LINK, SPRING Price: $20.99 |
| 30 |
126-0543-03 |
BRACKET-LIFT, HOPPER Price: $138.99 |
| 31 |
126-0546-03 |
HOPPER LATCH ASM Price: $62.99 |
| 32 |
126-0547 |
SPACER Price: $42.99 |
| 33 |
126-0550-03 |
ACTUATOR LINK ASM Price: $47.99 |
| 34 |
126-0553-03 |
BRACKET-CAM Price: $44.99 |
| 35 |
126-0699 |
BOLT-CARR Price: $10.99 |
| 36 |
109-7692 |
SPRING-EXTENSION Price: $6.09 |
| 37 |
322-14 |
SCREW-HH Price: $2.39 |
| 38 |
322-3 |
SCREW-HH Price: $0.79 |
| 39 |
116-9007 |
PLATE-HOPPER, LEFT RETAINER Price: $10.99 |
| 40 |
3230-7 |
BOLT-CARR Price: $0.59 |
| 41 |
32180-037 |
CLIP-HARNESS Price: $1.59 |
| 42 |
1-303287 |
TIE-CABLE Price: $1.19 |
| 43 |
1-543385 |
SWITCH-TOGGLE, DPDT Price: $120.99 |
| 44 |
1-543386 |
BOOT-SWITCH, TOGGLE Price: $29.99 |
| 45 |
32160-042 |
CONNECTOR Price: $2.29 |
