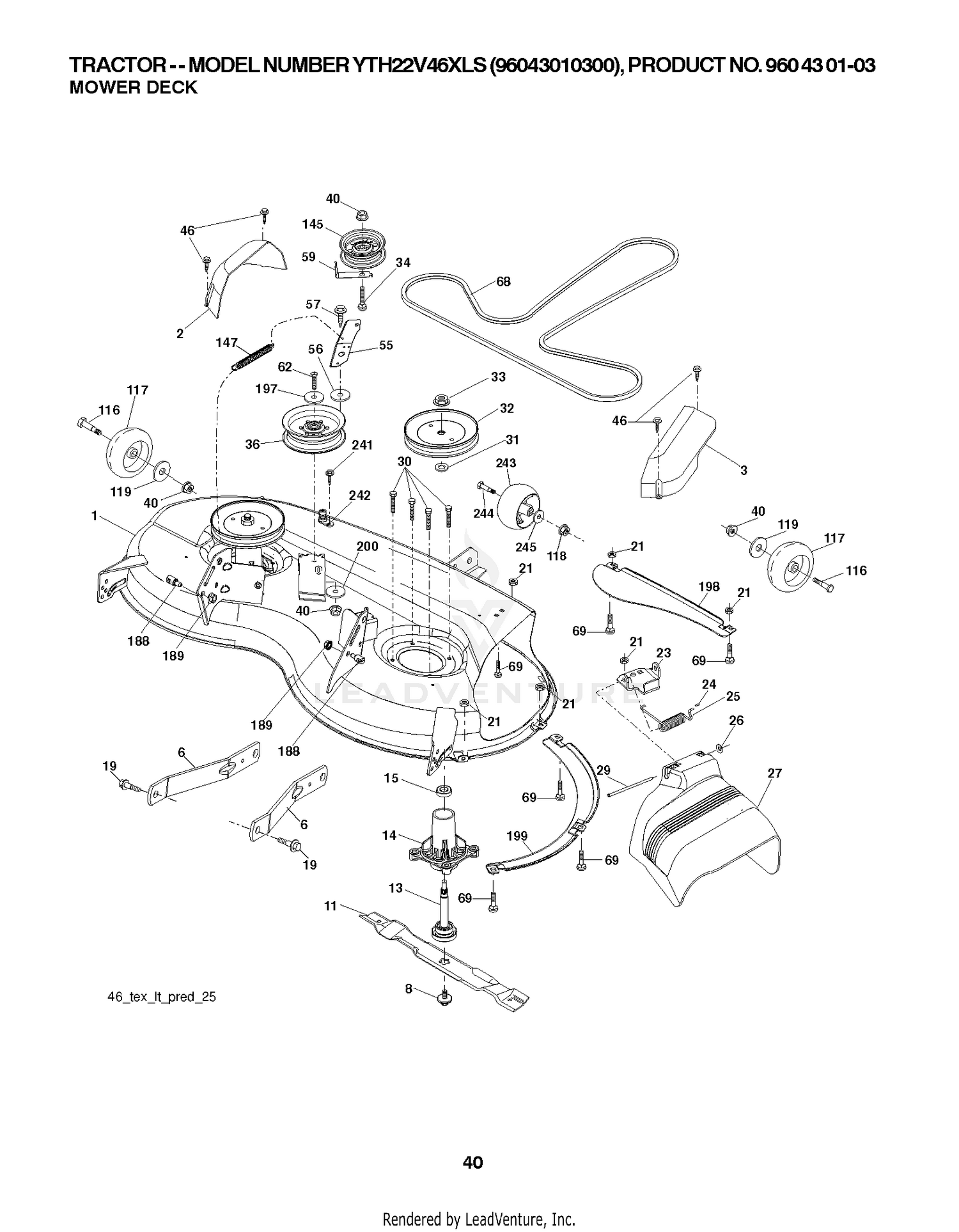

| Ref | Part Number | Description |
|---|
| 1 |
547746001 |
KIT.SVC.DECK.WELD.46.TEX_668 This part replaces 532421649. Price: $449.99 |
| 1 |
67-4630 |
ALTERNATOR ASSEMBLY Price: $550.36 |
| 2 |
67-4670 |
NUT Price: $1.65 |
| 3 |
67-3260 |
WASHER Price: $1.58 |
| 4 |
42-9660 |
WASHER Price: $2.50 |
| 5 |
43-0370 |
DISCONTINUED Price: Call Us |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 6 |
67-4870 |
REAR BEARING Price: $46.57 |
| 7 |
67-4860 |
DISCONTINUED Price: Call Us |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 8 |
67-4930 |
DISCONTINUED Price: Call Us |
| 9 |
67-4890 |
REAR BRACKET ASSEMBLY Price: $997.52 |
| 10 |
67-4880 |
DISCONTINUED Price: Call Us |
| 11 |
67-4900 |
DISCONTINUED Price: Call Us |
| 12 |
67-4910 |
REGULATOR ASSEMBLY Price: $649.68 |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 13 |
67-4920 |
BRUSH Price: $19.03 |
| 14 |
43-0510 |
BRUSH SPRNG Price: $6.49 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 15 |
67-4830 |
FRONT BRACKET ASSEMBLY Price: $283.39 |
| 16 |
67-4810 |
PULLEY SET Price: $48.24 |
| 17 |
51-7850 |
NUT SET This part replaces 43-1920. Price: $1.46 |
| 18 |
67-4840 |
SCREW SET Price: $5.18 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 19 |
67-4850 |
FRONT BEARING Price: $24.45 |
| 20 |
67-4820 |
BOLT SET Price: $9.73 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 21 |
67-4620 |
SPACER Price: $17.73 |
| 22 |
67-4640 |
BOLT Price: $9.56 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 23 |
75-4940 |
BRACE Price: $20.68 |
| 24 |
42-9440 |
BOLT/WASHER Price: $4.52 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 25 |
54-8660 |
WASHER Price: $2.23 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 26 |
67-4660 |
BOLT-FLANGE Price: $2.64 |
| 27 |
532405357 |
SHIELD.DEFLECTOR.MOWER.46"BLAC Price: $49.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
532195945 |
PULLEY.MANDREL.5.438.P This part replaces 532197473. Price: $12.99 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 36 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 55 |
531169401 |
SERVICE KIT IDLER.ARM This part replaces 532197249. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 62 |
596564404 |
Bolts This part replaces 874520636. Price: $2.99 |
| 68 |
584453101 |
V-BELT.DRIVE.MWR.MECHANICL.46" This part replaces 532405143. Price: $49.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 147 |
532197251 |
SPRING.MOWER.DRIVE.ELECTRIC Price: $9.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 197 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 198 |
531170601 |
SERVICE KIT BAFFLE CENT This part replaces 532403149. Price: $9.99 |
| 199 |
531170701 |
SERVICE KIT BAFFLE FRONT This part replaces 532403150. Price: $11.99 |
| 200 |
596135501 |
Washers This part replaces 532413524. Price: $4.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 243 |
589527401 |
WHEEL.GAUGE.RALLY.NARROW This part replaces 532188606. Price: $9.99 |
| 244 |
596434402 |
Bolts This part replaces 532124842. Price: $3.99 |
| 245 |
532416405 |
COUPLING.QUICK CONNECT Price: $8.99 |
| 245 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
