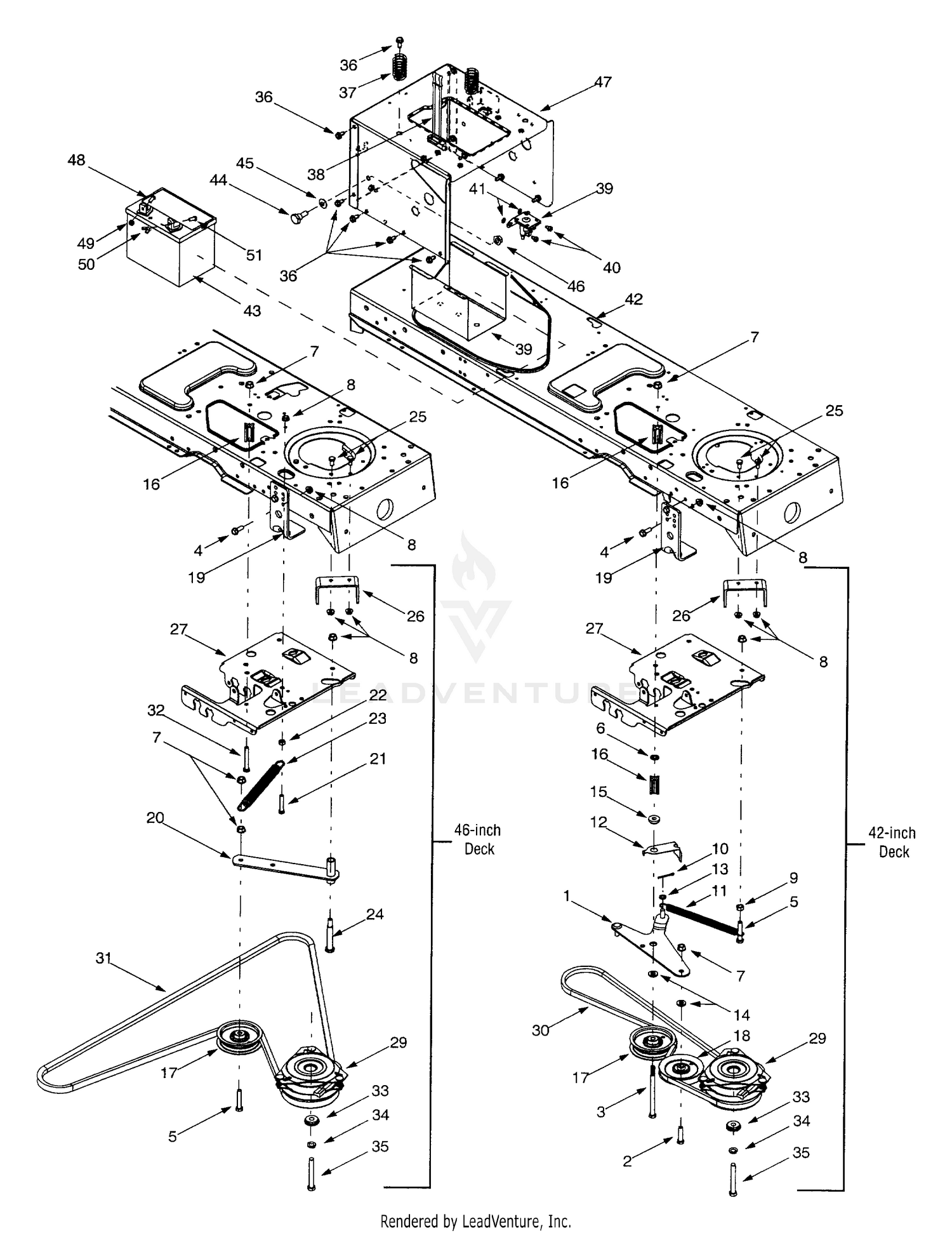

| Ref | Part Number | Description |
|---|
| 1 |
683-0450 |
ENGAGEMENT PLATE ASSEMBLY Not Available Price: |
| 2 |
710-0520 |
Hex Cap Screw, 3/8-16 x 1.5 Price: $3.93 |
| 3 |
710-0831 |
SCREW 3/8-16 x 5.5" GR5 Not Available Price: |
| 4 |
710-1238A |
SCREW 5/16-18 x .875 GR5 HXFLG HD This part replaces 710-1238. Price: $3.74 |
| 5 |
710-3144 |
Hex Cap Screw, 3/8-16 x 2.0 Price: $4.02 |
| 6 |
712-0229 |
Push Nut, 3/8 Price: $3.14 |
| 7 |
912-0431 |
Flange Lock Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 8 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 9 |
712-3017 |
HEX NUT 3/8-16 GR5 Price: $3.90 |
| 10 |
714-0470 |
Cotter Pin, 1/8 x 1.25 Price: $3.90 |
| 11 |
932-0384 |
EXTENSION SPRING Not Available This part replaces 732-0384. Price: |
| 12 |
732-0991A |
BELT GUARD Not Available Price: |
| 13 |
736-0140 |
Flat Washer, .385 x .62 x .063 Price: $6.20 |
| 14 |
736-3010 |
Flat Washer, .407 x .812 x .135 Price: $4.02 |
| 15 |
738-0372B |
Shoulder Spacer, .380 ID This part replaces 738-0372A. Price: $8.78 |
| 16 |
748-0415B |
SPACER .385ID x 1.54" Not Available This part replaces 748-0415A. Price: |
| 17 |
756-0627D |
Fl-Idler Pulley 3.5" O.D. This part replaces 756-0627B. Price: $28.58 |
| 18 |
756-1208 |
Idler Pulley, 4.0 Price: $32.98 |
| 19 |
783-04467-0637 |
DECK UP STOP BRACKET Not Available This part replaces 783-0891B. Price: |
| 20 |
683-0297 |
IDLER BRACKET ASSEMBLY Not Available Price: |
| 21 |
710-3180 |
Hex Cap Screw, 5/16-18 x 1.75 Price: $4.93 |
| 22 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 23 |
732-0978 |
Extension Spring, .62 x 5.62 Not Available Price: |
| 24 |
938-3056 |
Shoulder Bolt This part replaces 738-3056. Price: $8.53 |
| 25 |
710-3025 |
Hex Cap Screw, 5/16-18 x .625 Price: $3.64 |
| 26 |
783-1003-0637 |
CLUTCH BRACKET Not Available This part replaces 783-1003. Price: |
| 27 |
783-04612-0637 |
Steering Support Bracket This part replaces 783-0653D. Price: $78.74 |
| 29 |
917-1708 |
Electric PTO Clutch This part replaces 717-1708. Price: $545.53 |
| 32 |
710-0859 |
Hex Cap Screw, 3/8-16 x 2.5 Price: $5.99 |
| 33 |
938-0785 |
Shld. Spacer .445" I.D. This part replaces 738-0785. Price: $24.12 |
| 34 |
736-0171 |
Lock Washer, 7/16 Price: $3.86 |
| 35 |
710-3157A |
Screw, Hx. Hd., 7/16-20 x 3.25 This part replaces 710-3157. Price: $9.67 |
| 36 |
710-0604A |
Self Tapping Screw, 5/16-18 x .625 Price: $3.96 |
| 37 |
732-3080A |
Compression Spring This part replaces 732-3080. Price: $12.91 |
| 38 |
723-0444 |
BATTERY STRAP Not Available Price: |
| 39 |
925-1426A |
Solenoid This part replaces 725-1426. Price: $24.63 |
| 40 |
710-0599 |
Self Tapping Screw, 1/4-20 x.5 Price: $3.86 |
| 41 |
736-0222 |
Lock Washer, 1/4 Price: $5.07 |
| 42 |
683-0304 |
LOWER FRAME Not Available Price: |
| 43 |
925-1707D |
BATTERY Not Available This part replaces 725-1706. Price: |
| 44 |
738-1020 |
Shoulder Screw, .625 x .5, 7/16-20 Price: $6.88 |
| 45 |
736-0407 |
Bell Washer, .45 x 1.0 x .062 Price: $3.64 |
| 46 |
712-0459 |
Flange Lock Nut, 7/16-20 Price: $4.39 |
| 47 |
783-1031A |
UPPER HITCH PLATE Not Available Price: |
| 48 |
710-0703 |
Hex Cap Screw, 1/4-20 x .75 Price: $3.66 |
| 49 |
712-0271 |
Hex Sems Nut, 1 /4-20 Price: $3.78 |
| 50 |
712-3087 |
WING NUT 1/4-20 Price: $3.53 |
