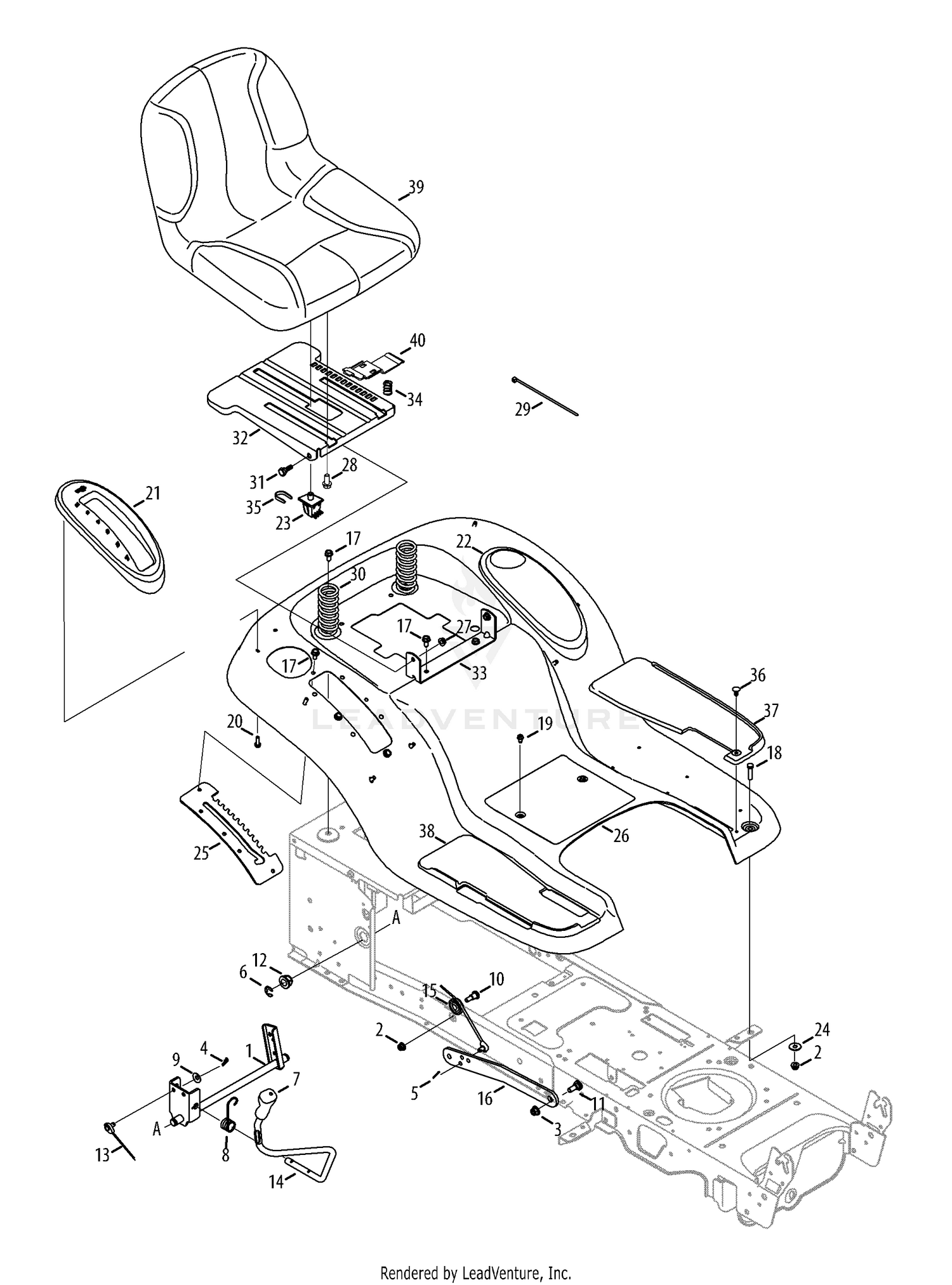

| Ref | Part Number | Description |
|---|
| 1 |
683-04223-0637 |
LIFT SHAFT ASSEMBLY (POWDER BLACK) Not Available Price: |
| 2 |
712-04063 |
Nut, Flange Lock, 5/16-18, Grf Price: $3.56 |
| 3 |
712-04065 |
Nut, Flange Lock, 3/8-16, Grf Price: $3.68 |
| 4 |
714-0104 |
Hairpin Clip This part replaces 914-0104. Price: $3.90 |
| 5 |
714-04040 |
Pin, Cotter, Bow-Tie 72, 46" Price: $1.28 |
| 6 |
716-0106A |
Ring, E Type, .625 Dia. Shaft Price: $4.42 |
| 7 |
720-0311 |
Grip, Handle, 1/2 Price: $13.26 |
| 8 |
732-0874 |
Spring, Torsion Price: $4.02 |
| 9 |
736-0105 |
Washer, Spring, .401 x .870 x .063 Price: $3.96 |
| 10 |
738-0138A |
Screw, Shoulder, .437 x .470, 5/16-18 Price: $5.81 |
| 11 |
738-0380 |
Shld. Bolt 3/8-16 x .500" Dia. This part replaces 938-0380. Price: $7.34 |
| 12 |
941-0225 |
Bearing, Hex Flange Price: $6.55 |
| 13 |
746-0968 |
Cable, Lift, 16.16 Price: $18.10 |
| 14 |
747-04962A |
Handle, Lift, Price: $33.15 |
| 15 |
756-04331 |
Pulley, Roller, Cable Price: $5.78 |
| 16 |
783-05546A-0637 |
Lift Link, 46" Price: $17.96 |
| 17 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 18 |
710-1260A |
Taptite Screw, 5/16-18:.750 Price: $3.34 |
| 19 |
710-0599 |
Screw, Self-tapping, 1/4-20, 0.500, Price: $3.86 |
| 20 |
710-0895 |
Screw, HL, 1/4-15, 0.750, Price: $5.82 |
| 21 |
731-06795 |
Cover, Lift Lever Price: $21.39 |
| 22 |
731-1993A |
COVER-W/CUP HOLDER Not Available Price: |
| 23 |
925-05013 |
Switch, Seat Price: $28.07 |
| 24 |
736-3078 |
Washer, Flat .344 x 1.00 x .063 Price: $3.95 |
| 25 |
783-06443-0637 |
Bracket, Lift, Man PTO, 6 Pos Price: $17.76 |
| 26 |
783-06259-0638 |
FENDER (MTD RED) Not Available Price: |
| 27 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 29 |
725-0157 |
Cable, Tie, 3/16 x .05 x 7.4 Price: $3.46 |
| 30 |
732-04849 |
Spring, Comprs, 1.50 x 3.90 x .200 Price: $11.50 |
| 31 |
738-0296 |
Shoulder Screw, .437 x .286 This part replaces 938-0296. Price: $3.93 |
| 32 |
783-06049-0637 |
Bracket, Mounting, Seat Price: $60.14 |
| 33 |
783-06088A-0637 |
Seat Pivot Bracket This part replaces 783-06088-0637. Price: $18.96 |
| 34 |
732-04563 |
Comp. Spring, .68 x 1.065 x .055 Price: $4.74 |
| 35 |
783-06448 |
Clip, Retaining, Switch Price: $5.26 |
| 36 |
726-3046 |
Clip, Ratchet, .250 Dia Price: $3.71 |
| 37 |
735-04138 |
FOOT PAD (LH) Not Available Price: |
| 38 |
735-04158 |
FOOT PAD (RH) Not Available Price: |
| 39 |
757-05232 |
HI BACK SEAT, BLACK (3 PT) This part replaces 757-04086. Price: $255.26 |
