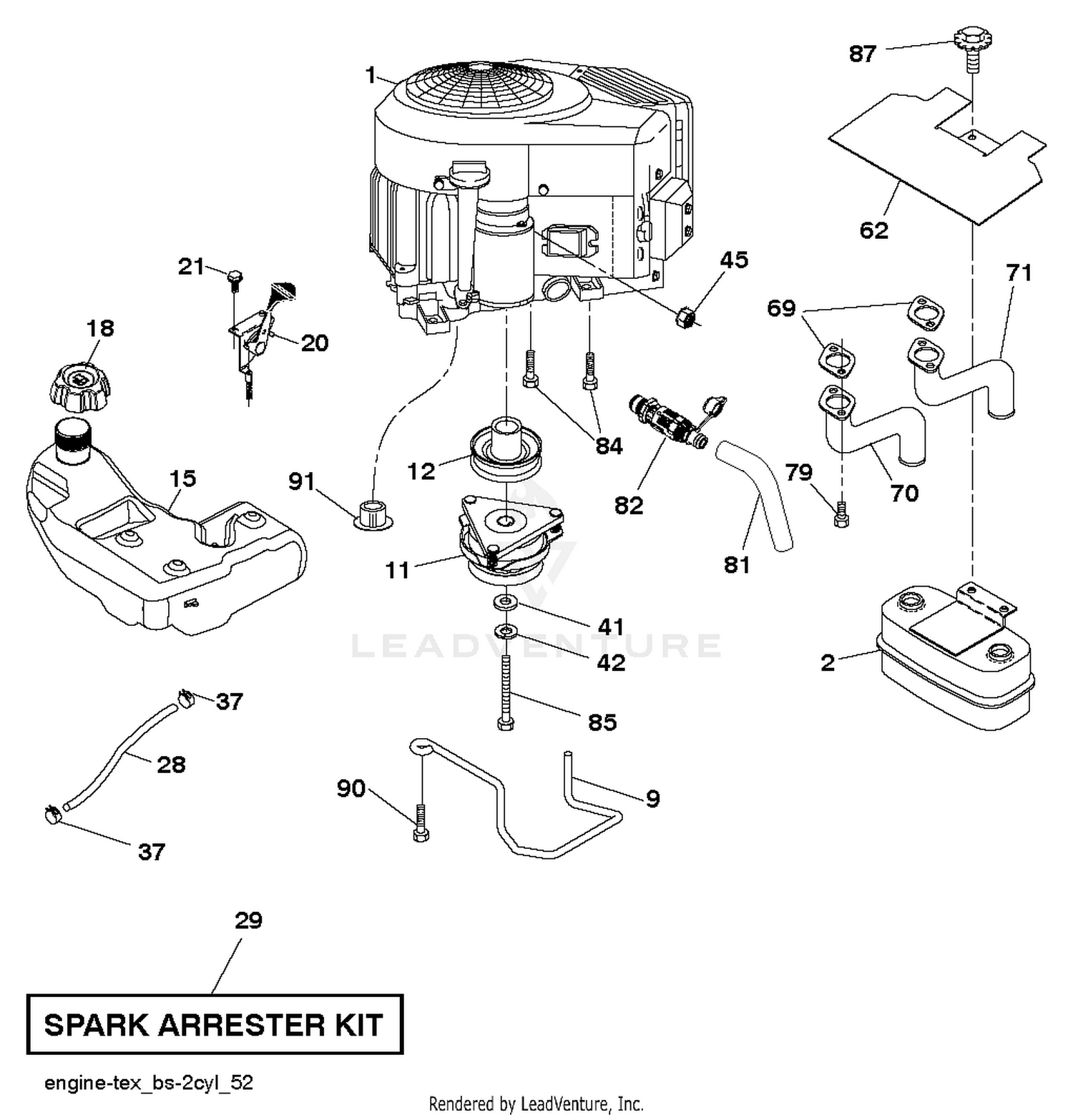

ENGINE

ENGINE

Parts (35)

RefPart NumberDescription
1 3296-50 NUT-LOCK, NI This part replaces 32153-10. Price: $2.68
2 3-8448 WASHER-THRUST Price: $2.58
2 532149723 MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99
3 26-8310-01 BAIL-LIFT This part replaces 26-8310. Price: $233.66
4 32153-5 NUT-HEX Price: $1.59
5 6-1030 HOUSING This part replaces 1-6559. Price: $158.52
6 302-5 FITTING-GREASE Price: $0.59
7 125-5196 BUSHING This part replaces 3-0348. Price: $6.00
8 325-17 SCREW-HH Price: $2.90
9 5-1091 SPACER Price: $4.98
9 596501502 Keepers This part replaces 532194320. Price: $9.99
10 3-9280-01 DRAWBAR This part replaces 3-9280. Price: $321.93
11 325-14 SCREW-HH Price: $2.64
11 532414336 KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532400008. Price: $329.99
12 5-1706 SPRING-EXTENSION Price: $12.91
12 532405097 PULLEY.ENGINE.TUFFTORQ Price: $49.99
15 599306004 FUEL TANK, 3GAL, 2.25"NECK, 20 This part replaces 532438080. Price: $199.99
18 532439208 CAP.ASM.FL.RITCH.3"E10.SYM.498 Price: $37.99
20 532423502 CONTROL.TH/CK.COBRA.B&S.TWN.BK Price: $24.99
21 596321701 Screws This part replaces 532416358. Price: $2.99
29 532137180 KIT.SPARK ARRESTOR 794945 B&S Price: $109.99
37 532123487 HOSE CLAMP Price: $3.99
41 532126197 WASHER Price: $6.99
42 596238901 Washers This part replaces 810040700. Price: $2.99
45 586668901 NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99
62 531154901 SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99
69 532165391 GASKET.MUFFLER Price: $9.99
79 596134202 Screws This part replaces 532183906. Price: $2.99
81 532148456 TUBE, DRAIN OIL ASM. Price: $5.99
82 532428287 VALUE.OIL.DRAIN Price: $14.99
84 817060620 SCREW.3/8-16 Price: $5.99
85 501606501 BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99
87 532171877 BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99
90 817000616 SCREW 3/8-16X1 Price: $5.99
91 532187495 BUSHING.1.375OD Price: $4.99
