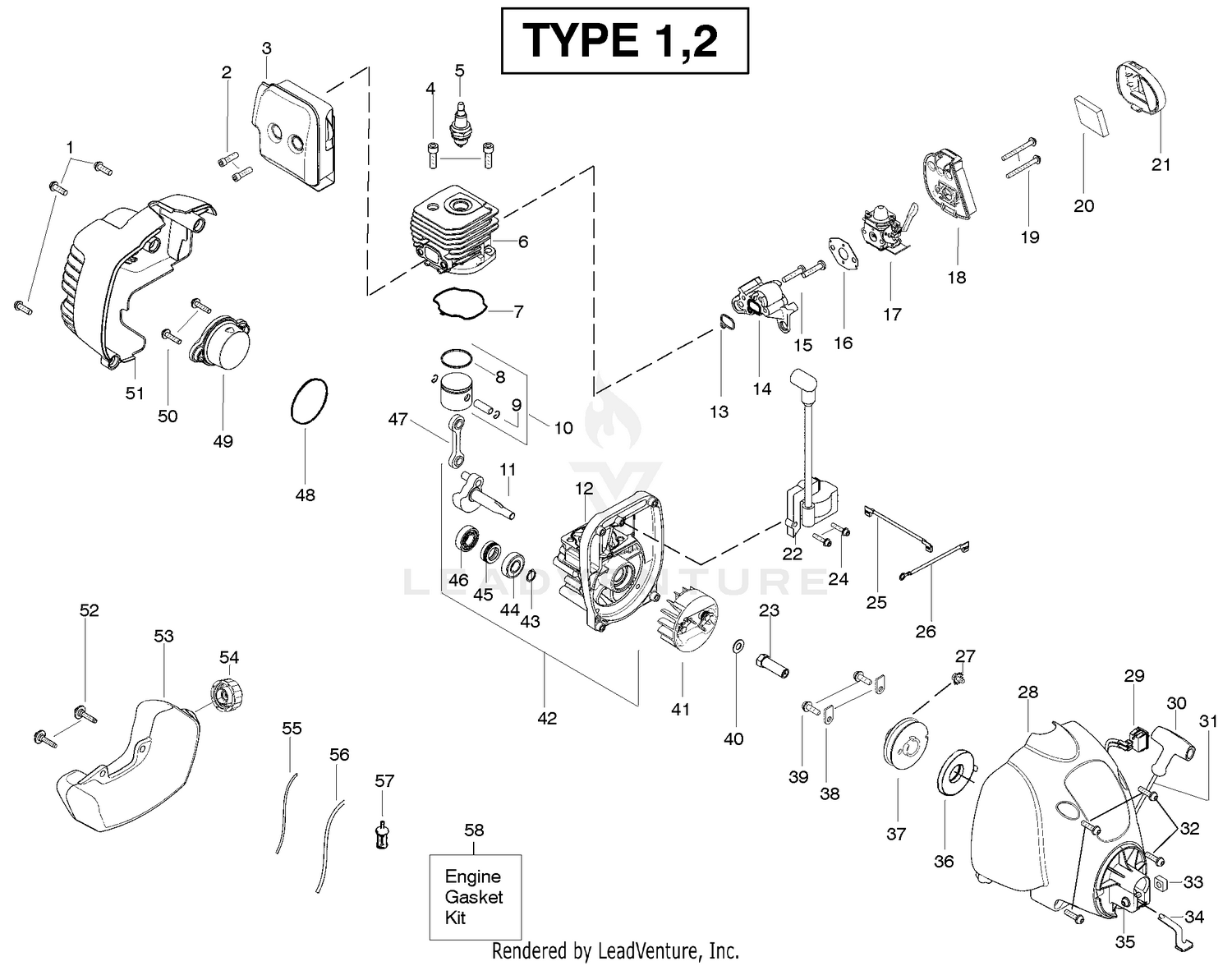

| Ref | Part Number | Description |
|---|
| 1 |
530015880 |
Screw Price: $1.99 |
| 2 |
530058982 |
Bolt-Muffler Price: $1.99 |
| 4 |
530015953 |
Screw-Cylinder Price: $1.99 |
| 5 |
952030249 |
Spark Plug (RCJ 6Y) Price: Call Us |
| 6 |
530012541 |
Cylinder Price: $11.99 |
| 7 |
530071750 |
Seal-Cylinder (kit) Price: $8.99 |
| 8 |
545154001 |
RING PISTON This part replaces 530055120. Price: $1.99 |
| 9 |
530015162 |
Retainer-Piston Pin Price: $1.99 |
| 10 |
112-7018 |
VALVE-INLET This part replaces 98-9494. Price: $41.87 |
| 11 |
530057829 |
Assy-Crankshaft Price: $12.99 |
| 13 |
530071750 |
Seal-Cyl/Carb.(kit) Price: $8.99 |
| 14 |
530057547 |
Adapter-Carb. Price: $7.99 |
| 15 |
530016309 |
Screw Price: $1.99 |
| 16 |
530071750 |
Gasket-Carb. (kit) Price: $8.99 |
| 17 |
530071752 |
Kit-Carb. Zama (C1U-W18) Price: $29.99 |
| 18 |
530057585 |
Air Box Price: $7.99 |
| 19 |
530016429 |
Screw Price: $1.99 |
| 20 |
112-7019 |
VALVE-EXHAUST This part replaces 98-9625. Price: $56.65 |
| 20 |
530057781 |
Foam-Air Filter Price: $1.99 |
| 21 |
530057584 |
Cover-Air Box Price: $4.99 |
| 22 |
530039237 |
IGNITION MODULE This part replaces 545024901. Price: $22.99 |
| 23 |
530038604 |
Coupling-Drive Price: $1.99 |
| 24 |
530016357 |
Screw Price: $1.99 |
| 25 |
530014663 |
Assy-Leadwire Price: $5.99 |
| 26 |
530014662 |
Assy-Ground Wire Price: $4.99 |
| 27 |
530016392 |
Screw Price: $1.99 |
| 28 |
530058600 |
Assy.-Fan Hsg Price: $14.99 |
| 29 |
530071356 |
Kit-Switch Price: $4.99 |
| 30 |
530027569 |
Handle-Starter Price: $1.99 |
| 30 |
98-9626 |
SPRING-VALVE Price: $10.57 |
| 31 |
530071767 |
Kit - Rope Price: $3.99 |
| 32 |
530016386 |
Screw This part replaces 530015810. Price: $5.99 |
| 33 |
530016124 |
Nut Price: $1.99 |
| 34 |
530057588 |
Clip-Spring Price: $1.99 |
| 35 |
530016430 |
Screw Price: $2.99 |
| 36 |
545008010 |
STARTER SPRING This part replaces 530042085. Price: $3.99 |
| 37 |
530071786 |
Kit-Pulley-Starter Price: $3.99 |
| 38 |
530027523 |
Retainer-Pulley Price: $2.99 |
| 39 |
530015775 |
Screw Price: $1.99 |
| 40 |
107-9092 |
RETAINER-SPRING This part replaces 98-9498. Price: $2.58 |
| 40 |
530015828 |
Washer-Flat Price: $1.99 |
| 41 |
530054115 |
Assy-Flywheel This part replaces 545005101. Price: $27.99 |
| 43 |
530015941 |
Retain. Ring-C'shaft Price: $1.99 |
| 44 |
530055728 |
Outer Bearing Price: $6.99 |
| 45 |
530019264 |
Seal-C'case Price: $2.99 |
| 46 |
738210101 |
BEARING BALL 6001 This part replaces 530032125. Price: $8.99 |
| 47 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 48 |
530071750 |
O-Ring-C'case (kit) Price: $8.99 |
| 50 |
117-7572 |
COLLET-SPRING, VALVE This part replaces 98-9390. Price: $9.43 |
| 50 |
530016386 |
Screw Price: $5.99 |
| 51 |
530057580 |
Shroud-Rear Green Price: $7.99 |
| 51 |
545011004 |
Shroud-Rear Black Price: $2.99 |
| 52 |
530016445 |
Retainer-Tank Price: $1.99 |
| 54 |
530014347 |
Assy-Fuel Cap Price: $4.49 |
| 55 |
530069247 |
Kit-Fuel Line (Small) Price: $3.69 |
| 56 |
530069216 |
Kit-Fuel Line (Large) Price: $3.99 |
| 57 |
530095646 |
Assy-Fuel Pickup Price: $2.69 |
| 60 |
99-8385 |
SEAL-STEM, VALVE Price: $7.29 |
| 70 |
98-9497 |
CAP-VALVE Price: $8.36 |
| 80 |
105-3757 |
SHAFT-ARM, ROCKER Price: $40.00 |
| 90 |
100-1762 |
BOLT This part replaces 100-9265. Price: $1.68 |
| 100 |
98-9505 |
BRACKET-ARM, ROCKER Price: $22.17 |
| 110 |
98-9506 |
STUD Price: $5.98 |
| 120 |
98-9393 |
NUT Price: $2.72 |
| 130 |
98-9385 |
WASHER-FLAT Price: $1.24 |
| 140 |
105-3758 |
PIN-SPRING Price: $0.57 |
| 150 |
98-9507 |
WASHER-SHAFT, ROCKER ARM Price: $0.85 |
| 160 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 170 |
98-9504 |
SPRING-ARM, ROCKER Price: $0.66 |
| 190 |
98-9501 |
ROCKER ARM ASM Price: $28.78 |
| 200 |
98-9502 |
SCREW-ADJUSTING Price: $2.78 |
