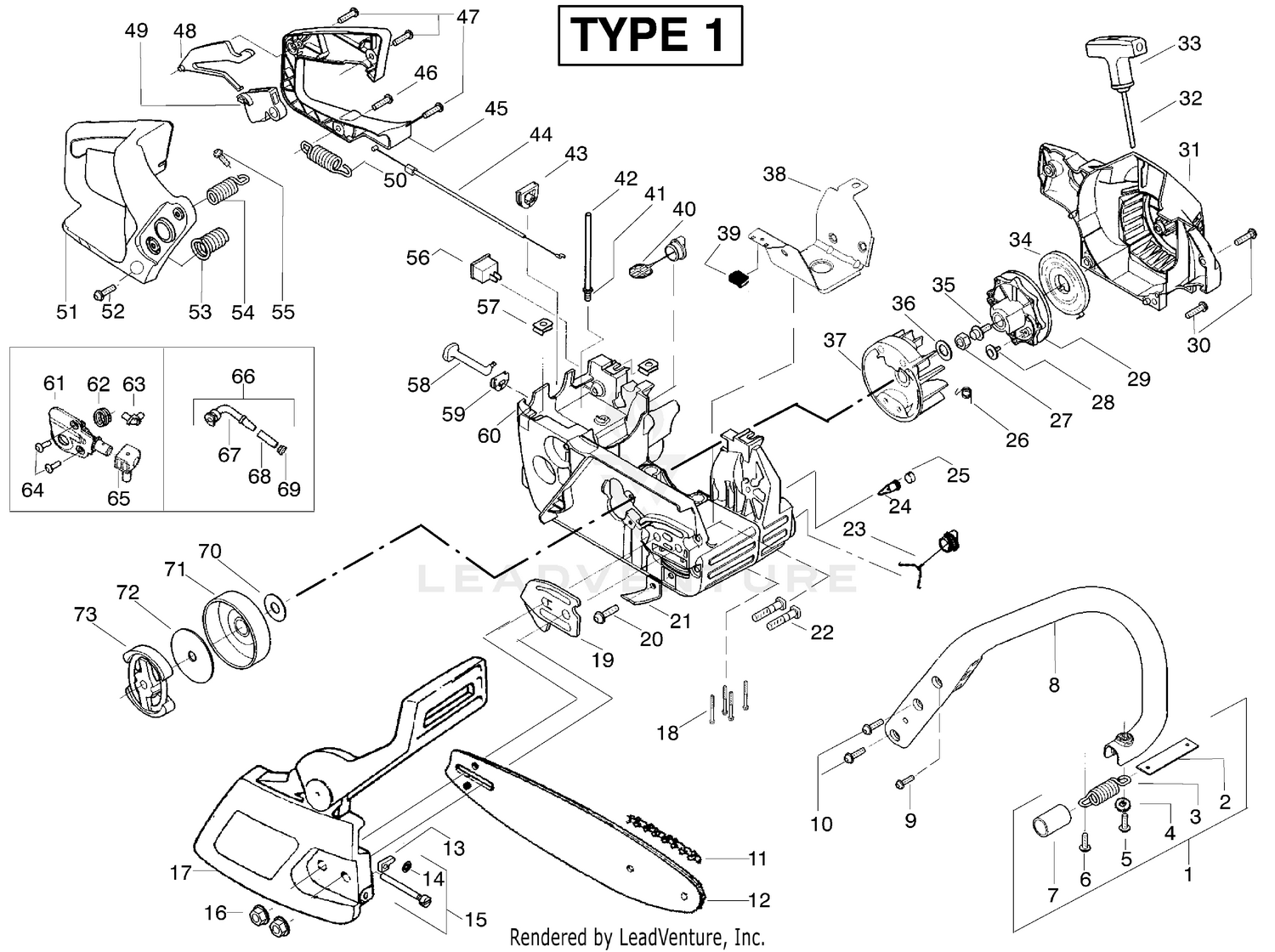

| Ref | Part Number | Description |
|---|
| 1 |
108-6715 |
GAUGE BAR ASM Price: $148.12 |
| 1 |
545006036 |
SPRING This part replaces 530047963. Price: $5.99 |
| 2 |
29-9100 |
BRUSH AND HANDLE ASM Price: $58.15 |
| 3 |
545006036 |
SPRING This part replaces 530042082. Price: $5.99 |
| 4 |
115-0803 |
ROLLER REBUILD TOOL KIT Price: $122.41 |
| 4 |
530015123 |
Washer Price: $1.99 |
| 5 |
125-5610 |
PAPER-REEL, TORO (10 PACK) Price: $6.02 |
| 5 |
530016018 |
Screw Price: $1.99 |
| 6 |
140-5531 |
SHIM-TORO REEL (.002IN) This part replaces 125-5611. Price: $6.67 |
| 6 |
530015843 |
Screw Price: $1.99 |
| 7 |
131-6828 |
INDICATOR-ANGLE Price: $69.10 |
| 7 |
530036142 |
Sleeve-AV Spring Price: Call Us |
| 8 |
545048001 |
HANDLE This part replaces 530047583. Price: $27.99 |
| 9 |
530015940 |
Screw Price: $1.99 |
| 10 |
530015814 |
Screw Price: $1.99 |
| 11 |
581562301 |
P/PP CHN 18" 62DL 3/8 .050 This part replaces 952051338. Price: $19.99 |
| 12 |
952044418 |
Bar-18" Price: $30.95 |
| 13 |
530015826 |
Pin-Bar Adjust Price: $1.99 |
| 14 |
530038593 |
Retainer - Bar Adjust Price: $0.99 |
| 16 |
530015917 |
Nut-Bar Mounting Price: $0.99 |
| 17 |
545139906 |
Assy-Chain Brake This part replaces 530054735. Price: $29.99 |
| 18 |
530016132 |
Screw Price: $1.99 |
| 19 |
530038238 |
Plate-Bar Mounting Price: $1.99 |
| 20 |
530015814 |
Screw Price: $1.99 |
| 21 |
530029850 |
Chain Catcher Price: $1.99 |
| 22 |
530016133 |
Bolt-Bar Price: $1.99 |
| 23 |
530057236 |
OIL TANK CAP This part replaces 530010846. Price: $5.99 |
| 24 |
530026119 |
Check Valve Price: $1.99 |
| 25 |
530038264 |
Plug-Bronze Vent Price: $1.99 |
| 26 |
530023817 |
Spring-Starter Dog Price: $1.99 |
| 27 |
530016134 |
Nut- Flywheel Price: $1.99 |
| 28 |
530016080 |
Screw Price: $1.99 |
| 29 |
545034301 |
STARTER PULLEY This part replaces 530037817. Price: $8.99 |
| 30 |
530015892 |
Screw Price: $1.99 |
| 31 |
530049334 |
Fan Housing Price: $8.99 |
| 32 |
530069232 |
Kit - Rope Price: $3.99 |
| 33 |
530056402 |
Handle-Starter This part replaces 530037485. Price: $2.99 |
| 34 |
545008015 |
SPRING STARTER This part replaces 530027531. Price: $2.99 |
| 35 |
530015920 |
Screw Price: $1.99 |
| 36 |
530015127 |
Washer- Flywheel Price: $1.99 |
| 37 |
530047534 |
FLYWHEEL ASSY This part replaces 530039209. Price: $22.99 |
| 38 |
530055183 |
Shield - Heat Price: $5.99 |
| 39 |
530055322 |
Clip - "U" Price: $1.99 |
| 40 |
580940901 |
FUEL CAP ASSY This part replaces 530047192. Price: $3.99 |
| 41 |
530023877 |
Fitting- fuel line Price: $1.99 |
| 43 |
530047631 |
Grommet-Cable Price: $1.99 |
| 44 |
530047602 |
Cable-Throttle Price: $3.99 |
| 45 |
530047581 |
Cover-Rear Handle Price: $3.99 |
| 46 |
530015886 |
Screw Price: $1.99 |
| 47 |
530015906 |
Screw Price: $1.99 |
| 48 |
530036098 |
Throttle Lockout Price: $1.99 |
| 49 |
530036097 |
Trigger-Throttle Price: $1.99 |
| 50 |
545006036 |
SPRING This part replaces 530042082. Price: $5.99 |
| 51 |
530047582 |
Handle - Rear Price: $11.99 |
| 52 |
530015814 |
Screw Price: $1.99 |
| 53 |
545006036 |
SPRING This part replaces 530053274. Price: $5.99 |
| 55 |
530015875 |
Screw Price: $1.99 |
| 56 |
530069572 |
Kit-Switch Price: $4.99 |
| 57 |
530015922 |
Nut- "U"-Type Price: $1.99 |
| 58 |
530047605 |
Knob-Choke Price: $1.99 |
| 59 |
530049005 |
Grommet-Knob Price: $1.99 |
| 61 |
530071259 |
Kit - Oil Pump Price: $11.99 |
| 62 |
530037820 |
Gear-Worm Spring Price: $1.99 |
| 63 |
530049477 |
Elbow-Oil Pickup Price: $1.99 |
| 64 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 65 |
530019206 |
Seal Block Price: $1.99 |
| 67 |
530038373 |
Pick-up Oiler Price: $1.99 |
| 68 |
530056533 |
Filter-Oil This part replaces 530037821. Price: $2.99 |
| 69 |
530056533 |
Filter-Oil This part replaces 530030189. Price: $2.99 |
| 70 |
530015907 |
Washer-Thrust Price: $1.99 |
| 71 |
530047061 |
Assy.-Clutch Drum w/bearing Price: $11.99 |
| 72 |
530015611 |
Washer-Clutch Price: $1.99 |
