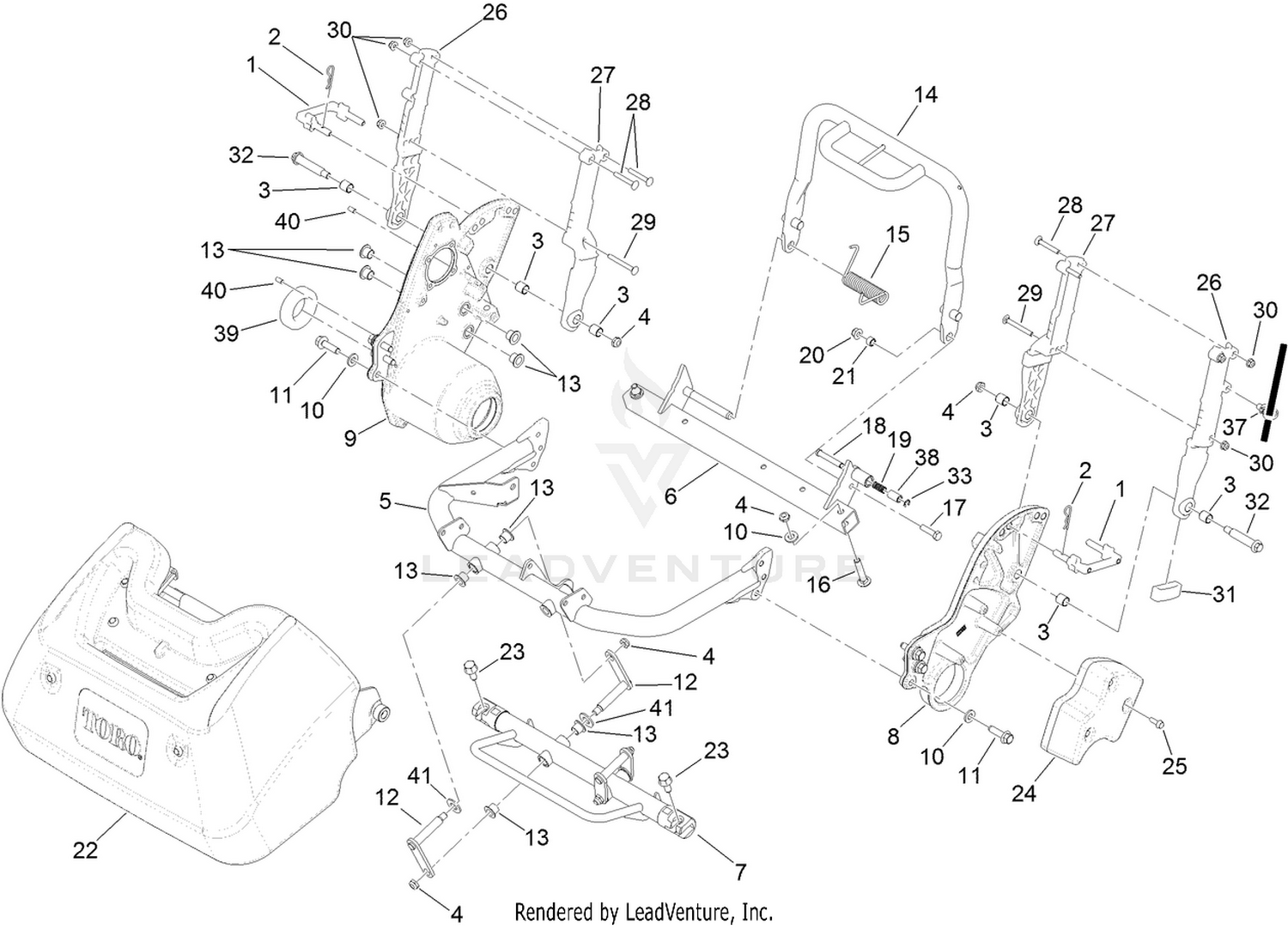

Frame and Handle Mount Assembly
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-9241 | RETAINER-HANDLE Price: $41.27 |
| 2 | 120-9717 | PIN-HAIR Price: $0.41 |
| 3 | 115-7295 | BUSHING-STRAIGHT Price: $3.19 |
| 4 | 121-4600 | NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 5 | 132-6977-01 | FRAME Price: $578.95 |
| 6 | 115-7179-01 | FRAME-REAR Price: $148.19 |
| 7 | 132-6974-01 | FRAME-ROLL Price: $308.02 |
| 8 | 115-7160 | PLATE-SIDE, LH Price: $152.80 |
| 9 | 115-7154 | HOUSING-DRIVE, DRUM Price: $313.53 |
| 10 | 115-7293 | WASHER-HARDENED Price: $0.75 |
| 11 | 115-7024 | SCREW-HHF Price: $1.83 |
| 12 | 117-1396 | LINK Price: $35.54 |
| 13 | 125-5239 | BUSHING-FLANGE Price: $4.21 |
| 14 | 121-4623-03 | KICKSTAND Price: $243.95 |
| 15 | 115-7258 | SPRING-TORSION, RH Price: $9.47 |
| 16 | 120-9715 | SCREW-CARR Price: $1.15 |
| 17 | 120-9696 | SCREW-HH Price: $0.31 |
| 18 | 120-9739 | PIN-LOCK Price: $10.45 |
| 19 | 107-8885 | SPRING-COMPRESSION Price: $2.39 |
| 20 | 119-4041 | NUT-HF Price: $0.48 |
| 21 | 120-9697 | SPACER Price: $5.16 |
| 23 | 131-6211 | SCREW-HH Price: $7.79 |
| 24 | 115-7234-03 | WEIGHT-COUNTER Price: $109.28 |
| 25 | 131-6150 | SCREW-HWHTF Price: $0.28 |
| 26 | 125-3522 | CLAMP-HANDLE Price: $34.95 |
| 27 | 125-3524 | CLAMP-HANDLE, OFFSET Price: $35.83 |
| 28 | 120-9698 | BOLT-CARR Price: $0.41 |
| 29 | 120-9699 | SCREW-CARR Price: $0.68 |
| 30 | 119-4040 | NUT-FLANGE, NI Price: $0.52 |
| 31 | 125-3525 | BUMPER-HANDLE Price: $4.28 |
| 32 | 127-1510 | SCREW-SHOULDER Price: $8.14 |
| 33 | 701197 | E-RING Price: $2.99 |
| 37 | 32180-030 | CLIP-TIE Price: $4.19 |
| 38 | 120-9740 | SPACER Price: $35.75 |
| 39 | 115-6860 | BEARING-BALL, STAINLESS Price: $91.56 |
| 40 | 95-0715 | PIN-DOWEL Price: $0.81 |
