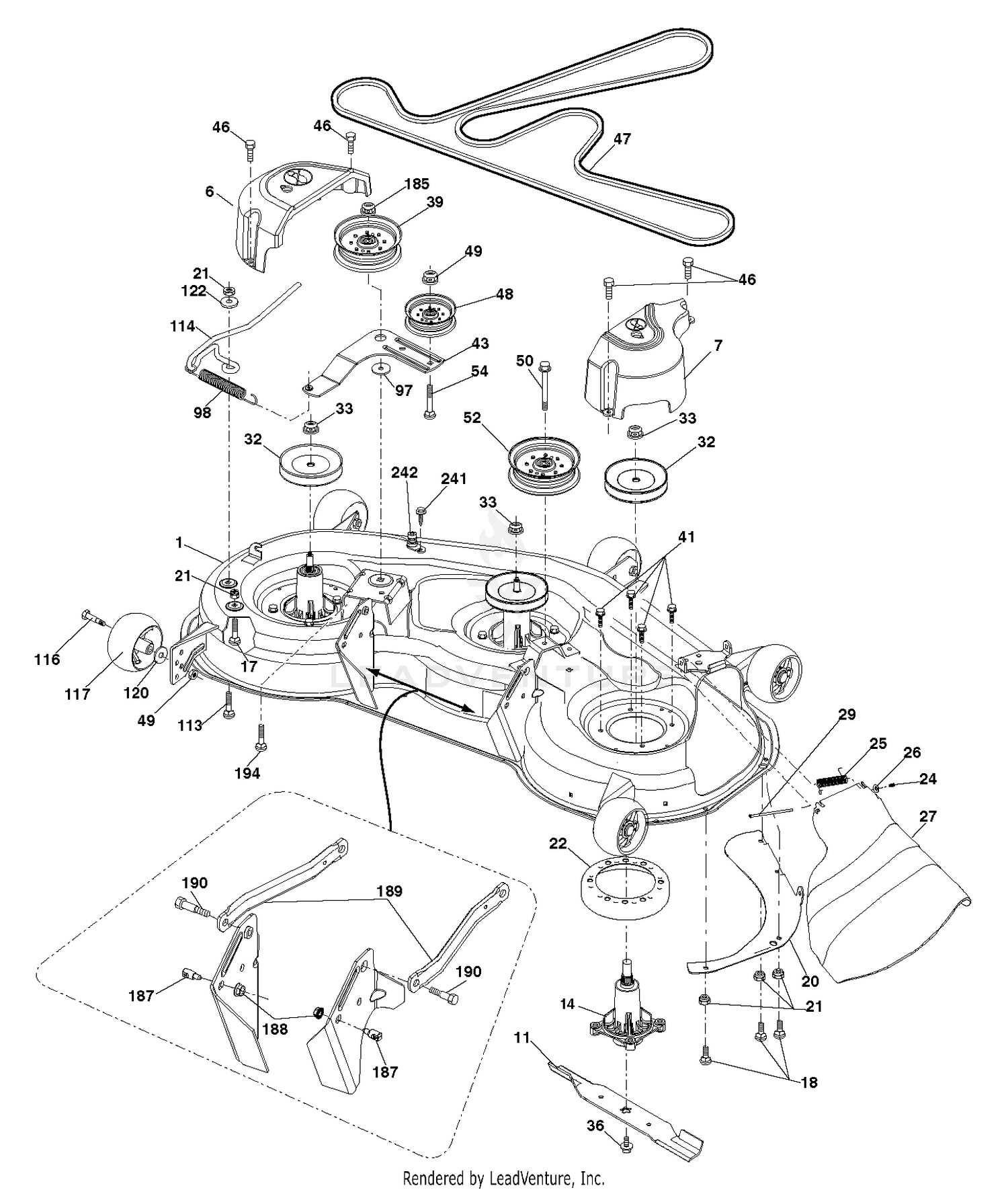

| Ref | Part Number | Description |
|---|
| 1 |
532439818 |
DECK SVC 48" 4GWB 197216X431 This part replaces 532401239. Price: $599.99 |
| 6 |
532197248 |
COVER.MANDREL.LH.48"(2 2) Price: $19.99 |
| 7 |
587452401 |
COVER.RH.MANDREL Price: $17.99 |
| 14 |
587820301 |
KIT.MANDREL.GREASEABLE.TALL Price: $49.99 |
| 17 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872110505. Price: $2.99 |
| 18 |
596136401 |
Bolts Price: $2.99 |
| 20 |
531167501 |
SERVICE KIT BAFFLE BAFFLE This part replaces 532174378. Price: $12.99 |
| 21 |
596040501 |
Hardware Price: $2.99 |
| 22 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532174493. Price: $6.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $4.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532180655 |
DEFLECTOR.ASM.BLACK.48" This part replaces 532181707. Price: $39.99 |
| 29 |
595297001 |
Rods Price: $4.99 |
| 32 |
532173435 |
MANDREL.PULLEY.38.BRIGHT.ZINC This part replaces 532153532. Price: $19.99 |
| 33 |
596134801 |
Nuts Price: $1.00 |
| 36 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 584309301. Price: $6.99 |
| 39 |
532196104 |
PULLEY.IDLER.MWR.STATI.LH This part replaces 532197380. Price: $37.99 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 43 |
531169301 |
SERVICE KIT ARM.IDLER This part replaces 532196065. Price: $9.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
593773401 |
Belts- 197242 Price: $54.99 |
| 48 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 50 |
596564004 |
SCREW TT 3/8-16X2.31 UNC This part replaces 817490636. Price: $1.99 |
| 52 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 54 |
596136101 |
GSPW Bolts Price: $2.99 |
| 97 |
532178515 |
WASHER Price: $5.99 |
| 98 |
547878302 |
SPRING BELT TENSIONER BLACK This part replaces 532196105. Price: $5.99 |
| 113 |
596435701 |
Bolts Price: $2.99 |
| 114 |
532197451 |
ROD.TENSION.RELIEF.TEX (2 2) Price: $14.99 |
| 116 |
596434404 |
Bolts Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY Price: $8.99 |
| 120 |
596134901 |
GSPH Price: $2.99 |
| 122 |
532187557 |
BUSHING.RELIEF.TENSION Price: $7.99 |
| 185 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 187 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
536050602 |
LINK FIXED MOWER DRAWBAR BLACK This part replaces 587140502. Price: $5.99 |
| 190 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 194 |
874490736 |
BOLT.HEX.WASHER.HEAD.7/16-24X Price: $9.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 531229002 |
DECAL.DECK.BELT.ROUTING.48/54 |
This part replaces 581580002. Price: $1.99 531229002 |
| 532145498 |
DECAL |
READ OWNER'S MAN SYMS Price: $3.99 532145498 |
| 595845001 |
NEEDS |
DESCRIPTION Price: Call Us 595845001 |
| 598531601 |
Decks |
Price: $1,099.99 598531601 |
