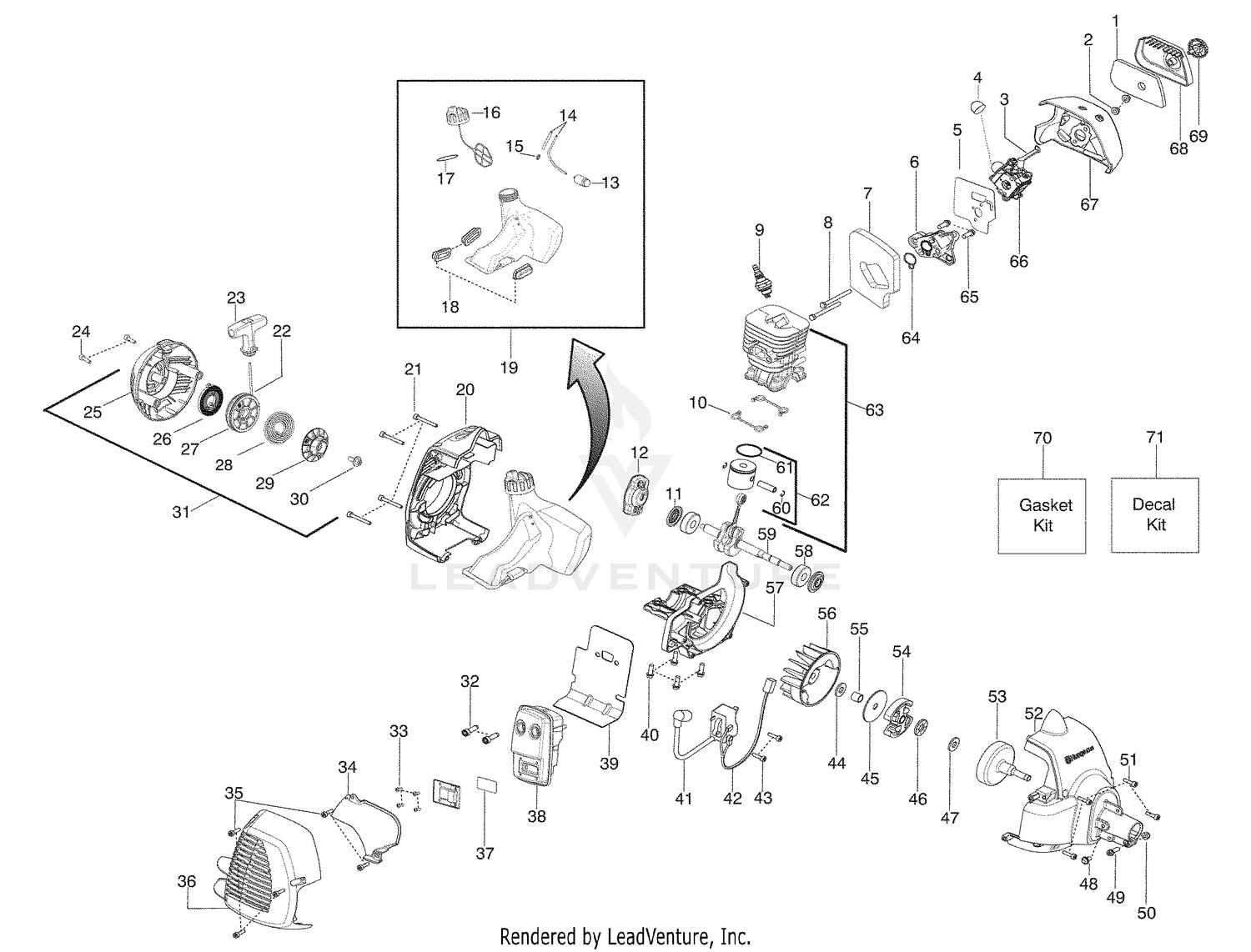

| Ref | Part Number | Description |
|---|
| 1 |
530150253 |
FILTER AIRBOX Price: $2.99 |
| 2 |
530016101 |
NUT Price: $4.99 |
| 3 |
530057844 |
CHOKE LEVER Price: $5.99 |
| 4 |
530058709 |
PURGE BULB ZAMA Price: $6.99 |
| 6 |
530035596 |
CARB ADAPTOR Price: $7.99 |
| 8 |
530016400 |
BOLT CARB ADAPTOR Price: $3.99 |
| 9 |
503235112 |
BPMR6A NGK SPARK PLUG This part replaces 952030201. Price: $8.99 |
| 12 |
503873305 |
STARTER PAWL BRIDGE Price: $22.99 |
| 13 |
530095646 |
FUEL PICK-UP ASSY Price: $5.99 |
| 15 |
530023877 |
FUEL LINE FITTING Price: $4.99 |
| 18 |
530059780 |
ISOLATOR FUEL TANK Price: $4.99 |
| 20 |
576153201 |
REAR SHROUD ORANGE This part replaces 530057851. Price: $11.99 |
| 21 |
530016448 |
SCREW Price: $2.99 |
| 22 |
545008079 |
KIT ROPE Price: $9.99 |
| 23 |
545043204 |
STARTER HANDLE Price: $6.99 |
| 24 |
530016426 |
SCREW M5-0.8X30MM Price: $4.99 |
| 25 |
579066901 |
KIT HOUSING STARTER This part replaces 545186502. Price: $29.99 |
| 26 |
545008087 |
KIT STARTER SPRING Price: $7.99 |
| 27 |
585530301 |
KIT PULLEY/SPRING This part replaces 545008078. Price: $9.99 |
| 28 |
544038802 |
SPRING - DRIVER Price: $5.99 |
| 29 |
579366201 |
PULLEY STARTER DRIVE This part replaces 544038702. Price: $5.99 |
| 30 |
530016468 |
SCREW Price: $2.99 |
| 32 |
530058982 |
BOLT MUFFLER Price: $2.99 |
| 33 |
545227101 |
SCREW 6-19X.437 This part replaces 530015241. Price: $2.99 |
| 34 |
530150440 |
SHIELD HEAT Price: $5.99 |
| 35 |
530016449 |
SCREW M4 X 1.75 PT 16MM Price: $3.99 |
| 36 |
576215001 |
KIT MUFFLER GUARD HVA This part replaces 545104901. Price: $12.99 |
| 40 |
530015897 |
SCREW-M5-0.8 X 25MM(TAP) Price: $2.99 |
| 41 |
545046701 |
IGNITION MODULE MBU-7 Price: $49.99 |
| 42 |
530039227 |
ASSY MODULE LEAD WIRE Price: $6.99 |
| 43 |
530016456 |
SCREW M4 X .70 TT 16MM Price: $2.99 |
| 44 |
530016463 |
WASHER CLUTCH Price: $5.99 |
| 45 |
530094189 |
WASHER-CLUTCH Price: $5.99 |
| 46 |
545173401 |
BEARING THRUST Price: $6.99 |
| 47 |
530016420 |
WASHER THRUST Price: $3.99 |
| 48 |
530016469 |
SCREW Price: $3.99 |
| 49 |
530016470 |
SCREW Price: $3.99 |
| 50 |
530403094 |
NUT HEX LOCK 10-24 Price: $2.99 |
| 51 |
530016456 |
SCREW M4 X .70 TT 16MM Price: $2.99 |
| 52 |
545017501 |
FAN HSG ASSY Price: $17.99 |
| 53 |
587126401 |
ASSY CLUTCH DRUM This part replaces 530150039. Price: $24.99 |
| 54 |
530055122 |
ASSEMBLY CLUTCH Price: $17.99 |
| 55 |
530057852 |
SPACER FLYWHEEL Price: $8.99 |
| 56 |
530039242 |
FLYWHEEL Price: $29.99 |
| 57 |
577929502 |
CRANKCASE CAST 128 This part replaces 545195601. Price: $34.99 |
| 58 |
545013401 |
BEARING RADIAL BALL (6201) Price: $5.99 |
| 59 |
585415401 |
CRANKSHAFT This part replaces 545195202. Price: $44.99 |
| 60 |
530015162 |
WRIST PIN RET. Price: $2.99 |
| 61 |
575227901 |
RING PISTON This part replaces 530019283. Price: $5.99 |
| 65 |
530015897 |
SCREW-M5-0.8 X 25MM(TAP) Price: $2.99 |
| 67 |
576459001 |
AIRBOX HVA 128 HUSKY GRAY This part replaces 545084601. Price: $6.99 |
| 68 |
530057846 |
COVER-AIR BOX Price: $7.99 |
| 69 |
530059796 |
KNOB ASSY AIRBOX COVER Price: $4.99 |
