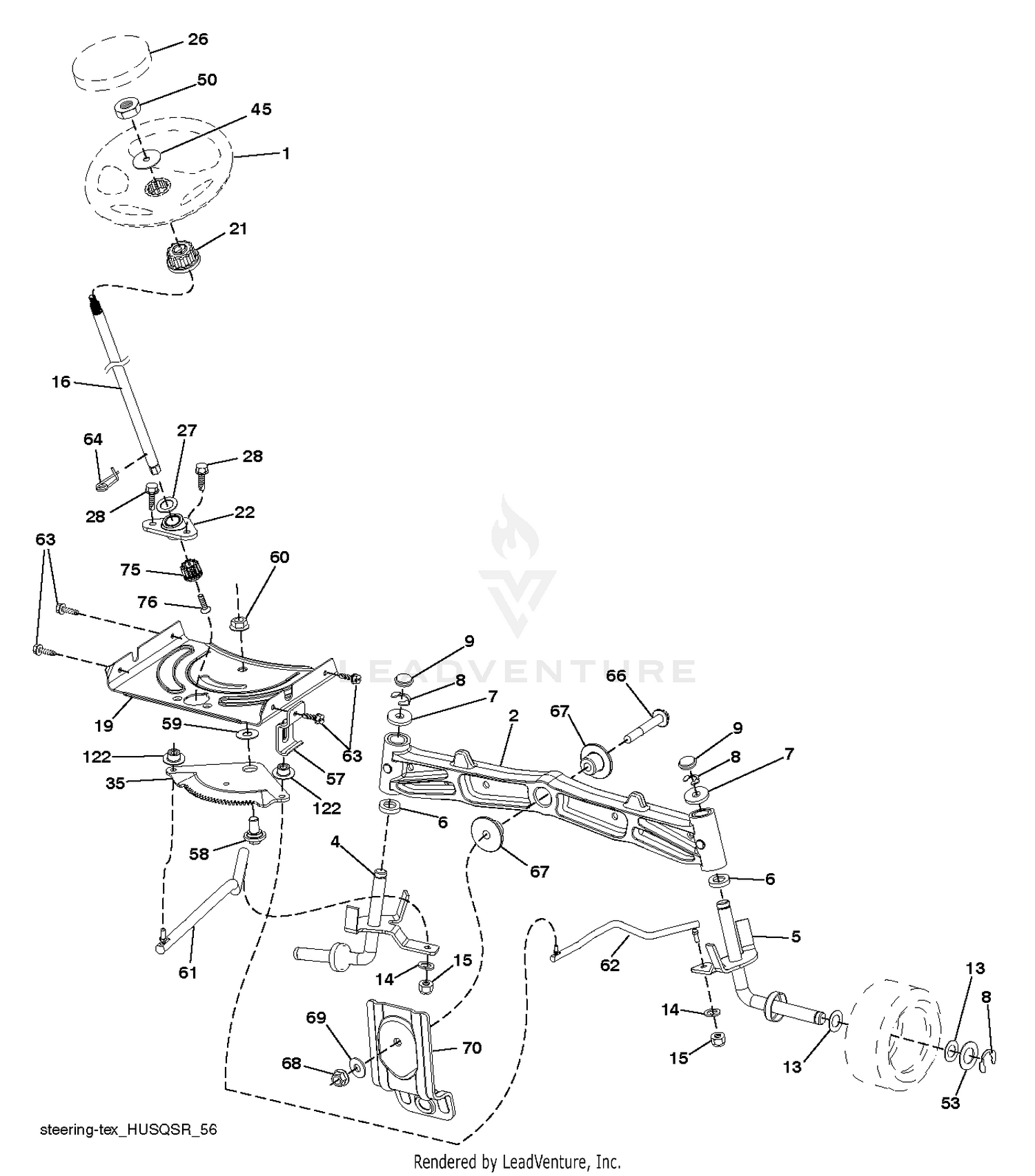

| Ref | Part Number | Description |
|---|
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD Price: $69.99 |
| 1 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 2 |
532413591 |
AXLE.SVC.ASM CAST IRON.TEX This part replaces 532195968. Price: $119.99 |
| 3 |
104-2065 |
SCREW-HWH This part replaces 32144-73. Price: $0.28 |
| 4 |
36-7260 |
BAR-OFF, CUT Price: $24.10 |
| 5 |
75-1840 |
FRONT GRASS SHIELD ASM Price: $71.47 |
| 6 |
321-4 |
SCREW-HH Price: $0.99 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 7 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 8 |
3243-13 |
SCREW-SET, SQH Price: $3.32 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 9 |
75-1560-01 |
REAR DEFLECTOR WA This part replaces 75-1560. Price: $84.79 |
| 10 |
3256-49 |
WASHER-PLAIN Price: $0.33 |
| 11 |
75-1720 |
FLAP-SHIELD, REAR Price: $4.02 |
| 12 |
3290-409 |
RIVET Price: $0.34 |
| 13 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
108-6475 |
KIT-BEARING HOUSING This part replaces 10-5120. Price: $42.60 |
| 15 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 16 |
587738904 |
KIT.SRVC.STEERINGSHAFT.2HISHFT This part replaces 587016002. Price: $34.99 |
| 17 |
3296-60 |
NUT-LOCK, NI Price: $5.08 |
| 18 |
10-5080-01 |
CAP-END This part replaces 10-5080. Price: $94.19 |
| 19 |
12-0460 |
CAPLUG Price: $2.84 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 20 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 21 |
323-2 |
SCREW-HH Price: $0.68 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 586840201. Price: $7.99 |
| 22 |
253-61 |
SEAL-OIL Price: $9.11 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 585029802. Price: $14.99 |
| 23 |
10-4930-01 |
BAR-BED This part replaces 10-4930. Price: $194.64 |
| 24 |
137-6097 |
BEDKNIFE-FAIRWAY This part replaces 63-8610. Price: $61.01 |
| 25 |
119-4151 |
SCREW-BEDKNIFE This part replaces 57-4910. Price: $0.41 |
| 26 |
130-0088 |
REEL-5IN FWY, (21) 5 BLD This part replaces 14-0659. Price: $398.11 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM Price: $8.99 |
| 27 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 27 |
75-6660 |
DISCONTINUED Price: Call Us |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 28 |
93-1394 |
NUT-SPLINE This part replaces 77-0340. Price: $27.80 |
| 29 |
92-8759 |
HYDRAULIC MOTOR This part replaces 75-1400. Price: $944.20 |
| 30 |
57-3210 |
SCREW Price: $2.28 |
| 31 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 32 |
253-96 |
SEAL-OIL Price: $6.85 |
| 33 |
217-74 |
BOLT-WHEEL Price: $4.87 |
| 34 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 45 |
587016401 |
WASHER.3/8ID.2-3/8OD.12GA.PLTD Price: $2.99 |
| 50 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 57 |
532197246 |
BRKT.UPSTOP.GT/LT.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
597047802 |
Links This part replaces 532194740. Price: $11.99 |
| 62 |
597047902 |
Links This part replaces 532194741. Price: $11.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 532196197. Price: $14.99 |
| 75 |
587738906 |
KIT.SRVC.STEERINGSHAFT.PINION This part replaces 580683701. Price: $4.99 |
| 76 |
580683601 |
SCREW HEAD SOCKET LRVB Price: $2.99 |
| 122 |
583576601 |
CAP.GEAR.SECTOR.TEX This part replaces 532444962. Price: $4.99 |
