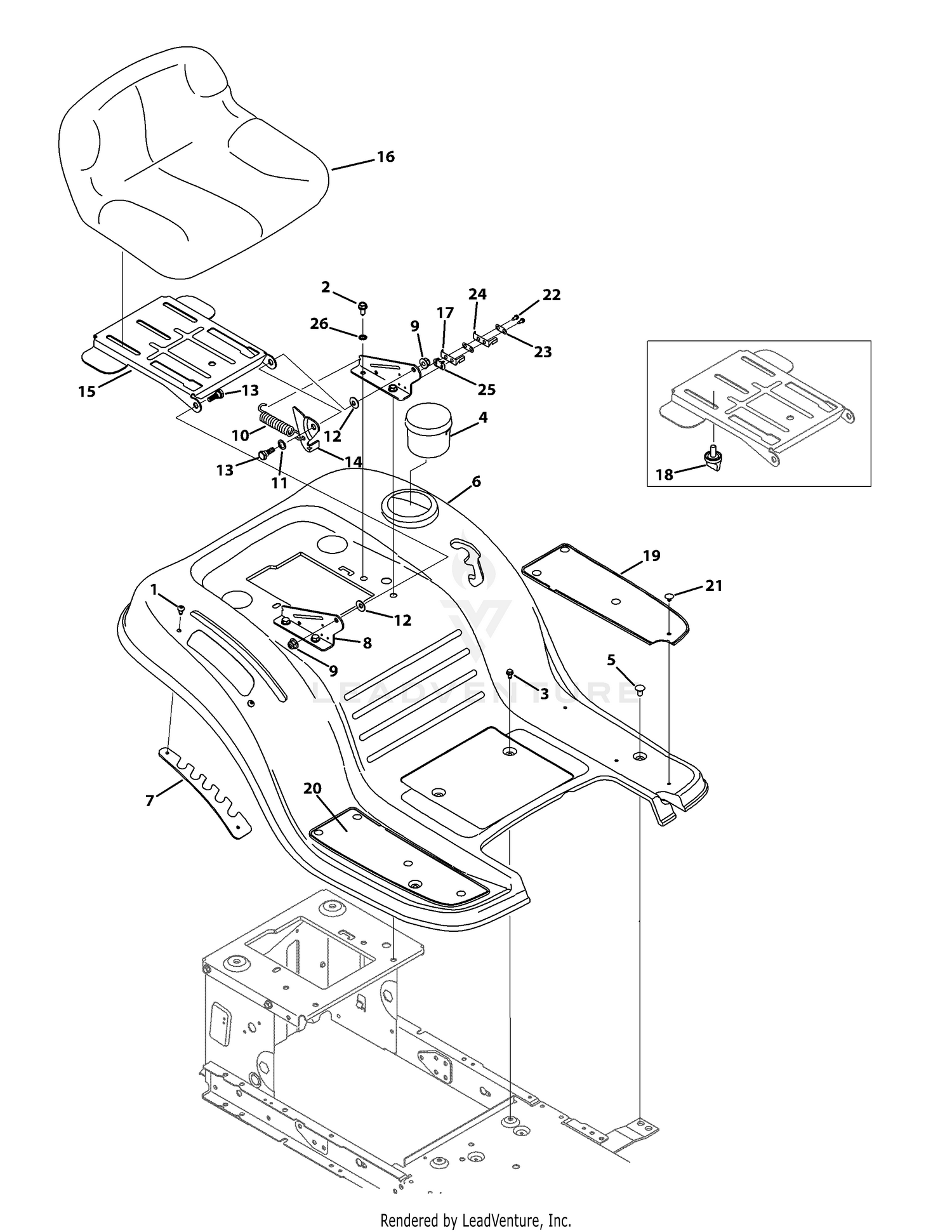

| Ref | Part Number | Description |
|---|
| 1 |
710-05070A |
Screw, 1/4-20 x .500 Price: $6.01 |
| 2 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 3 |
710-0599 |
Screw Pan Torx Head, 1/4-20 x .500 Price: $3.86 |
| 4 |
731-04591A |
Cup Holder Price: $13.84 |
| 5 |
710-0134 |
Screw Carriage, 1/4-20 x .62 Price: $3.71 |
| 6 |
783-04587E-0638 |
FENDER (MTD RED) This part replaces 783-04587D-0638. Price: $370.25 |
| 7 |
783-04843-0637 |
Lift Adjuster Bracket - Powder Black Price: $32.50 |
| 8 |
783-1489D-0637 |
Seat Mount Bracket - Powder Black Price: $20.69 |
| 9 |
712-04063 |
Flangelock Nut, 5/16-18 Price: $3.56 |
| 10 |
732-1184 |
Extension Spring Price: $10.23 |
| 11 |
936-0108 |
Flat Washer, .510x .750 x .033 Price: $6.07 |
| 12 |
736-0242 |
Bell Washer, .340 x .872 x .060 Price: $3.75 |
| 13 |
738-0296 |
Shoulder Screw, .437 x .286 This part replaces 938-0296. Price: $3.93 |
| 14 |
783-0209D |
Lift Seat Bracket Price: $14.21 |
| 15 |
783-04081D-0637 |
Pivot Seat Manual Adjust Bracket Price: $36.03 |
| 16 |
757-05229 |
MED BACK SEAT, BLACK (3 PT) This part replaces 757-04083A. Price: $203.38 |
| 17 |
725-1439 |
Inner Seat Spring Price: $7.18 |
| 18 |
720-04061 |
Knob, 3/8-16 x .875 Price: $4.67 |
| 19 |
735-04047 |
Foot Pad, LH Price: $16.65 |
| 20 |
735-04048 |
Foot Pad, RH Price: $16.72 |
| 21 |
726-3046 |
Ratchet Clip, .250 x .500 Price: $3.71 |
| 22 |
710-0227 |
Screw, 8-18 x .500 Price: $3.90 |
| 23 |
726-0279 |
Insulator Plate Price: $3.22 |
| 24 |
925-1308A |
WIRE HARNESS Not Available Price: |
| 25 |
726-0278 |
Insulator Boss Plate Price: $5.95 |
