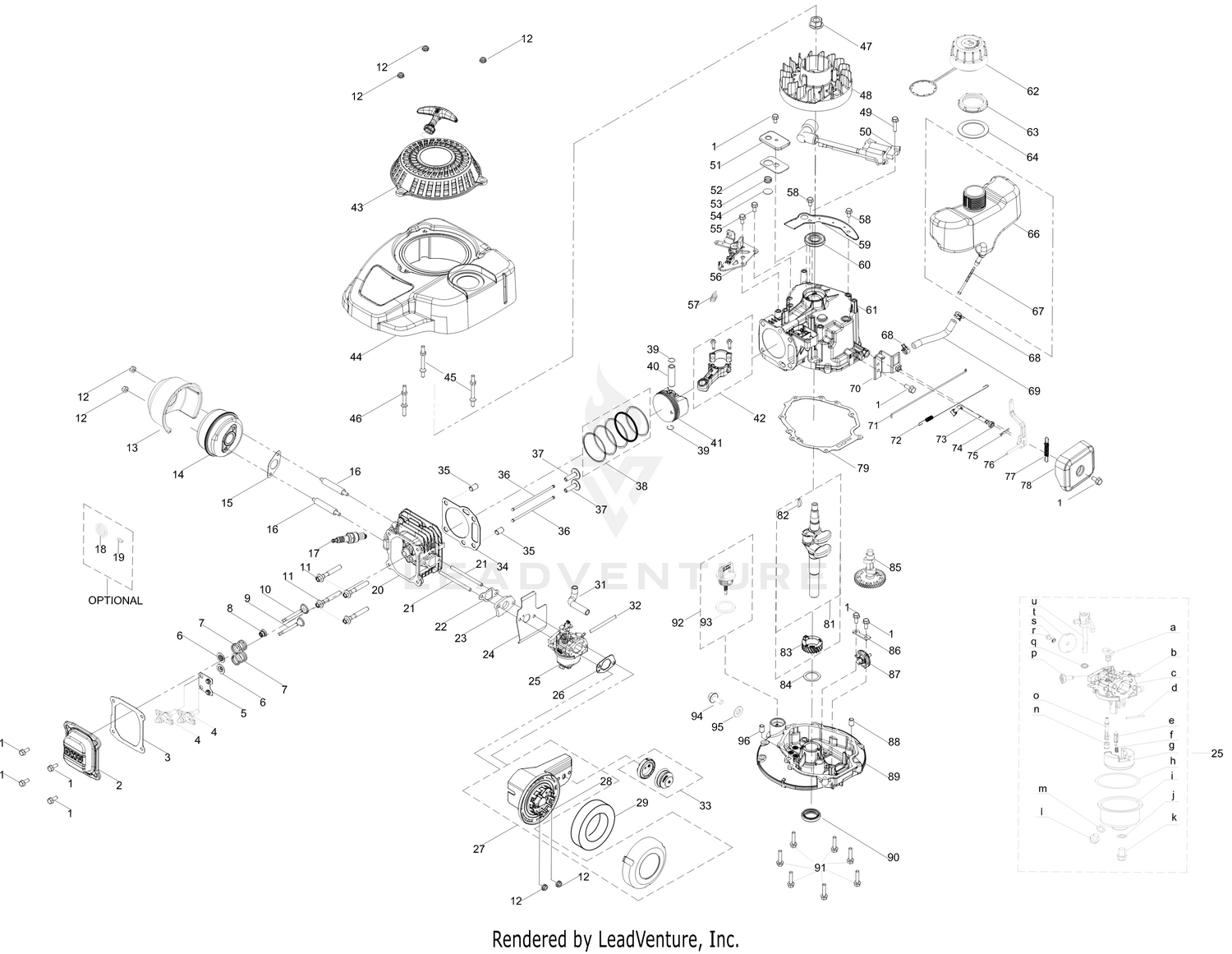

1T65NUC General Assembly
Parts (113)
| Ref | Part Number | Description |
|---|---|---|
| a | None | Idle Jet Assembly |
| b | None | Primer Port |
| c | None | Carburetor Body |
| d | 711-06043A | FLOAT PIN This part replaces 711P06043. Price: $0.56 |
| e | 793P00165A | NEEDLE VALVE Price: $4.13 |
| f | 732P05251A | NEEDLE VALVE SPRING Price: $1.70 |
| g | 731P09132A | FLOAT Price: $4.45 |
| h | 951-11589A | FUEL BOWL O-RING Price: $6.04 |
| i | 908-05001 | FLOAT BOWL Price: $7.16 |
| j | 951-11348A | FUEL BOWL GASKET Price: $5.07 |
| k | 710-04945 | BOLT M8-1 x 10 Price: $3.66 |
| l | 710-04938 | FUEL DRAIN PLUG Price: $3.66 |
| m | 951-11349A | FUEL DRAIN PLUG GASKET Price: $3.66 |
| n | None | Main Jet |
| o | None | Emulsion Tube |
| p | 710P06038A | SPEED IDLE SCREW Price: $2.45 |
| q | 721P04427A | THROTTLE SHAFT GASKET Price: $2.45 |
| r | 710-06230 | SCREW-3Mx6 Price: $2.98 |
| s | 736P05209A | LOCK WASHER 3MM Price: $2.45 |
| t | None | Throttle Plate |
| u | None | Throttle Shaft |
| 1 | 710-04916 | BOLT M6-1 x 14 GR8.8 Price: $3.86 |
| 2 | 908-05094 | VALVE COVER Price: $8.96 |
| 3 | 751P18586A | VALVE COVER GASKET Price: $3.94 |
| 4 | 951-11606A | ROCKER ARM Price: $29.12 |
| 5 | 951-11687A | PUSH ROD GUIDE This part replaces 951-11687. Price: $6.12 |
| 6 | 908-04094A | VALVE RETURN SPRING Price: $3.20 |
| 7 | 751P12004A | VALVE SPRING Price: $1.74 |
| 8 | 921-04705 | INTAKE VALVE SEAL Price: $5.48 |
| 9 | 951-14641A | EXHAUST VALVE Price: $8.71 |
| 10 | 951-14640A | INTAKE VALVE Price: $8.71 |
| 11 | 710-06200 | SCREW M8 x 54 GR10 Price: $5.59 |
| 12 | 712-05015 | HEX NUT Price: $5.78 |
| 13 | 951-14752 | MUFFLER SHIELD Price: $11.49 |
| 14 | 951-14692A | MUFFLER ASSEMBLY Price: $14.44 |
| 15 | 951-14427A | MUFFLER GASKET Price: $6.38 |
| 16 | 710-06204 | STUD M6-1 x 76 Price: $5.38 |
| 17 | 951-14437A | SPARK PLUG (F5RTC/RN11YC4/BPR5ES) Price: $6.35 |
| 18 | 951-10351A | SPARK ARRESTOR Price: $48.91 |
| 19 | 710-04983 | SCREW M3.5 x 9.5 Price: $3.65 |
| 20 | 951-14689 | CYLINDER HEAD Price: $107.46 |
| 21 | 710-06205 | STUD M6 x 98 Price: $5.59 |
| 22 | 751P18606A | CARBURETOR INSULATOR GASKET This part replaces 751P18606. Price: $4.14 |
| 23 | 951-14698 | CARBURETOR INSULATOR Price: $9.11 |
| 24 | 921-04706A | CARBURETOR GASKET This part replaces 921-04706. Price: $5.10 |
| 25 | 651P06675H | CARBURETOR This part replaces 651-06675H. Price: $48.20 |
| 26 | 951-14419A | AIR FILTER BASE GASKET Price: $7.08 |
| 27 | 951-05226A | AIR FILTER ASSEMBLY This part replaces 951-05226. Price: $16.26 |
| 28 | 731P10637 | AIR FILTER BASE Price: $1.80 |
| 29 | 951-14627A | FOAM AIR FILTER This part replaces 951-14627. Price: $9.11 |
| 31 | 735-05055 | BREATHER HOSE Price: $5.48 |
| 32 | 735-05056 | PRIMER HOSE Price: $6.38 |
| 33 | 951-05177A | PRIMER ASSEMBLY Price: $12.83 |
| 34 | 751P18607A | HEAD GASKET This part replaces 751P18607. Price: $4.14 |
| 35 | 715P04090A | PIN (10MMx16MM) Price: $2.95 |
| 36 | 747P04862A | PUSH ROD This part replaces 747-04862. Price: $5.10 |
| 37 | 951-11607A | TAPPET Price: $6.12 |
| 38 | 951-14433A | PISTON RING SET Price: $34.45 |
| 39 | 951-11603A | WRIST PIN CLIP Price: $2.90 |
| 40 | 951-14435A | PISTON PIN Price: $9.22 |
| 41 | 951-14434A | PISTION Price: $56.68 |
| 42 | 951-05163A | CONNECTING ROD This part replaces 951-05163. Price: $14.09 |
| 43 | 951-05320A | STARTER RECOIL ASSEMBLY Price: $57.94 |
| 44 | 931-05602A | ENGINE SHROUD This part replaces 931-05602. Price: $22.87 |
| 45 | 710-06208 | STUD M6 x 75 Price: $5.59 |
| 46 | 710-06209 | STUD M6 x 73 Price: $5.59 |
| 47 | 712-04287A | FLYWHEEL NUT M14-1.5 Price: $5.33 |
| 48 | 925-06190A | ENGINE FLYWHEEL Price: $84.73 |
| 49 | 710-04919 | BOLT M6-1 x 25 GR8.8 Price: $3.86 |
| 50 | 925-07231 | IGNITION COIL ASSEMBLY Price: $64.63 |
| 51 | 908-05092 | BREATHER COVER PLATE Price: $5.48 |
| 52 | 921-04703 | BREATHER COVER GASKET Price: $6.38 |
| 53 | 732-04718A | BREATHER VALVE SPRING Price: $3.30 |
| 54 | 951-11614A | BREATHER VALVE Price: $3.13 |
| 55 | 710-04915 | BOLT M6-1 x 12 GR8.8 Price: $3.82 |
| 56 | 951-05551 | ENGINE BRAKE ASSEMBLY Price: $28.97 |
| 57 | 932-05580 | BRAKE SPRING Price: $5.35 |
| 58 | 710-04914 | BOLT M6-1 x 10 GR8.8 Price: $3.71 |
| 59 | 908-05269 | SHROUD COVER PLATE Price: $7.23 |
| 60 | 921-04700A | UPPER SEAL Price: $7.39 |
| 61 | 751P18608 | CRANKCASE Price: $69.30 |
| 62 | 951-15255A | FUEL CAP W/TETHER Price: $23.25 |
| 63 | 931-10290A | FUEL TANK NUT Price: $4.85 |
| 64 | 951-14406A | FUEL TANK GROMMET Price: $9.68 |
| 66 | 931-10291A | FUEL TANK This part replaces 931-10291. Price: $53.51 |
| 67 | 951-12296A | FUEL FILTER Price: $8.68 |
| 68 | 951-11700A | CARBURETOR HOSE CLAMP Price: $3.60 |
| 69 | 735-05053A | FUEL HOSE Price: $8.96 |
| 70 | 908-05135 | COMPONENT BRACKET Price: $8.22 |
| 71 | 951-14696 | THROTTLE LINKAGE Price: $6.51 |
| 72 | 732P05188A | THROTTLE LINKAGE SPRING This part replaces 732-05188. Price: $6.05 |
| 73 | 951-11621 | GOVERNOR ARM SHAFT Price: $8.68 |
| 74 | 951-11902A | OIL SEAL Price: $3.36 |
| 75 | 714-04078A | COTTER PIN Price: $3.19 |
| 76 | 951-05160A | GOVERNOR ARM ASSEMBLY Price: $5.37 |
| 77 | 951-14411 | GOVERNOR SPRING Price: $8.34 |
| 78 | 931-10287 | GOVERNOR SHIELD Price: $8.96 |
| 79 | 751P18609A | CRANKCASE COVER GASKET This part replaces 751P18609. Price: $5.02 |
| 81 | 751-19748 | Crankshaft Assembly Price: Call Us |
| 82 | 751P10307A | WOODRUFF KEY Price: $2.01 |
| 83 | 931-10288A | GEAR Price: $8.18 |
| 84 | 736-04491A | THRUST WASHER Price: $3.30 |
| 85 | 751P18628A | CAMSHAFT This part replaces 751P18628. Price: $17.80 |
| 87 | 951-11549 | GOVERNOR GEAR/SHAFT ASSEMBLY Price: $10.58 |
| 88 | 715-04092A | DOWEL PIN 7 X 14 Price: $2.97 |
| 89 | 951-14688A | CRANKCASE COVER This part replaces 951-14688. Price: $66.28 |
| 90 | 951-11545A | LOWER CRANKSHAFT SEAL Price: $9.07 |
| 91 | 710-04943 | BOLT-M6-1 x 28 GR8.8 Price: $3.76 |
| 92 | 951-05161 | DIPSTICK ASSEMBLY Price: $8.96 |
| 93 | 721P04704 | DIPSTICK O-RING This part replaces 721-04704. Price: $1.80 |
| 94 | 710-04906 | OIL DRAIN PLUG Price: $5.86 |
| 95 | 736-04440A | FLAT WASHER Price: $6.01 |
| 96 | 715-04096A | DOWEL PIN 9 X 14 Price: $3.66 |
