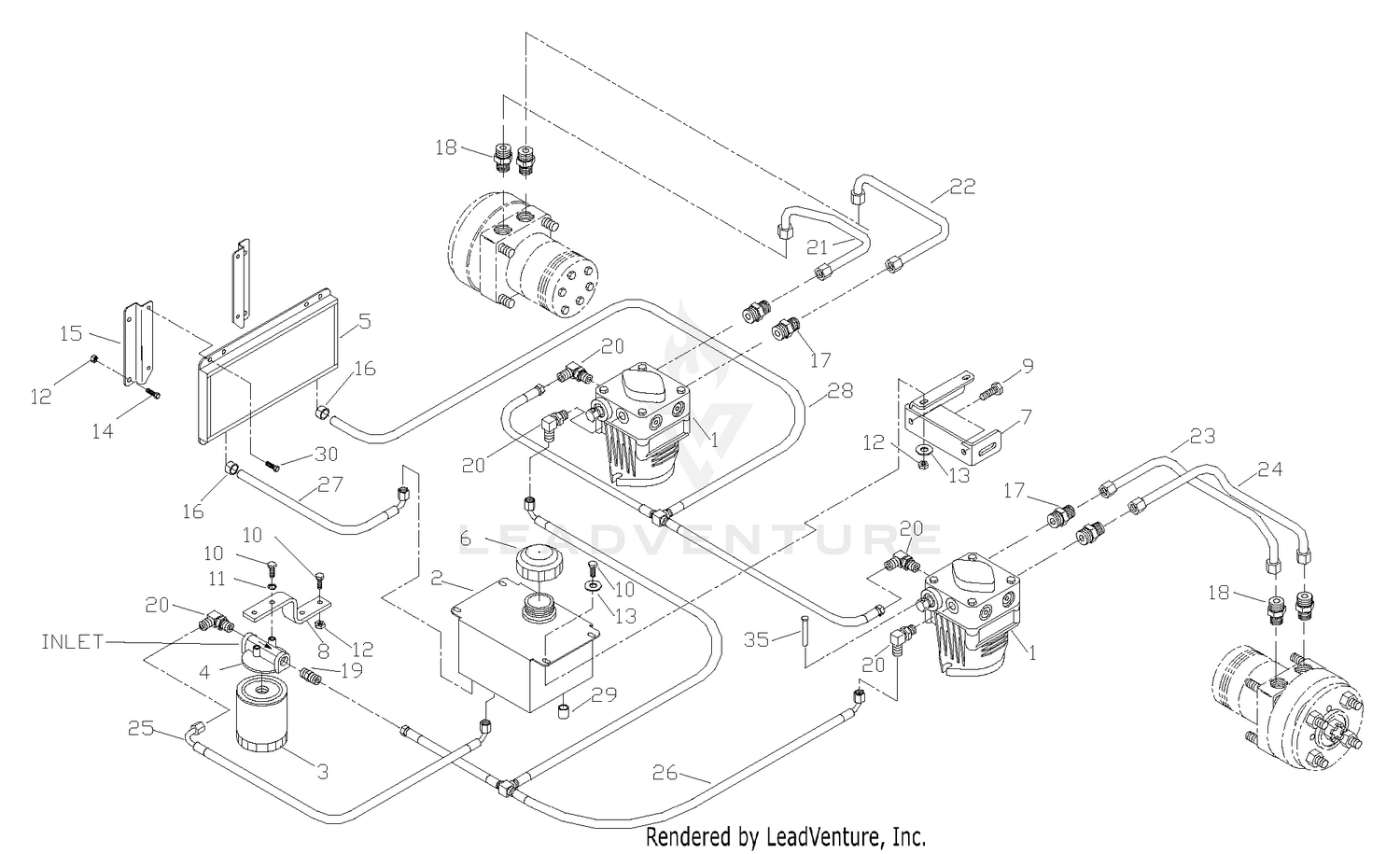

Hydraulic System Assembly
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 131017340 | Injection Pipe Price: Call Us |
| 1 | 539132147 | HG_PUMP, 10CC W/O FAN OR RTN This part replaces 539107749. Price: $1,099.99 |
| 2 | 131296665 | Housing Price: Call Us |
| 2 | 539105024 | OIL TANK Price: $249.99 |
| 3 | 131196120 | Holder Price: Call Us |
| 3 | 539102606 | HYDRAULIC OIL FILTER This part replaces 539113480. Price: $22.99 |
| 4 | 131226170 | Seal-O-Ring Price: Call Us |
| 4 | 539101165 | FILTER HEAD Price: $37.99 |
| 5 | 131176430 | Spring Price: Call Us |
| 5 | 539105167 | COOLER Price: $89.99 |
| 6 | 131186050 | Gasket Price: Call Us |
| 6 | 539101202 | HYDRAULIC CAP Price: $19.99 |
| 7 | 131156160 | Valve Price: Call Us |
| 7 | 539105026 | TANK MOUNT RT Price: $20.99 |
| 7 | 539105027 | TANK MOUNT LT Price: $20.99 |
| 8 | 131116410 | Element Price: Call Us |
| 8 | 539105028 | FILTER MOUNT Price: $10.99 |
| 9 | 131296951 | Sleeve Price: Call Us |
| 9 | 596030501 | SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 10 | 131296620 | Seat Price: Call Us |
| 10 | 596230901 | Screws This part replaces 539990580. Price: $2.99 |
| 11 | 131176440 | Spring Price: Call Us |
| 11 | 596564801 | Washers This part replaces 539990052. Price: $1.99 |
| 12 | 131296621 | Seat Price: Call Us |
| 12 | 539990761 | NUT 1/4C CENTER LOCK This part replaces 539990372. Price: $2.99 |
| 13 | 597338501 | Washers This part replaces 539990598. Price: $12.99 |
| 14 | 131256120 | Tappet Price: Call Us |
| 14 | 539101313 | HCS 1/4C X 2 Price: $2.99 |
| 15 | 131296636 | Rack Price: Call Us |
| 15 | 539105767 | COOLER BRACKET Price: $12.99 |
| 15 | 539105769 | FRONT COOLER BRKT Price: $12.99 |
| 16 | 131296650 | Bracket Price: Call Us |
| 16 | 539976966 | HOSE CLAMP T-1865 Price: $3.99 |
| 17 | 131136320 | Screw Price: Call Us |
| 17 | 539101237 | FITTING, STRAIGHT F6400-8-8-0 Price: $7.99 |
| 18 | 131236190 | Bolt Price: Call Us |
| 18 | 539102396 | FITTING Price: $11.99 |
| 19 | 131246180 | Washer Price: Call Us |
| 19 | 539103316 | STRAIGHT FITG Price: $9.99 |
| 20 | 131246130 | Nipple Price: Call Us |
| 20 | 539101238 | ELBOW, F6801-6-6-0 90 DEGREE Price: $12.99 |
| 21 | 131296662 | Plate Price: Call Us |
| 21 | 539106067 | RUBBER HYDRAULIC HOSE (1) Price: $37.99 |
| 22 | 131136330 | Screw Price: Call Us |
| 22 | 539106067 | RUBBER HYDRAULIC HOSE (1) Price: $37.99 |
| 23 | 131296651 | Pin Price: Call Us |
| 23 | 539106067 | RUBBER HYDRAULIC HOSE (1) Price: $37.99 |
| 24 | 131406340 | Atomiser Price: Call Us |
| 24 | 539106067 | RUBBER HYDRAULIC HOSE (1) Price: $37.99 |
| 25 | 131446069 | Nut Price: Call Us |
| 25 | 539104722 | HOSE 7" Price: $19.99 |
| 26 | 131426210 | Washer Price: Call Us |
| 26 | 539104723 | T ASM Price: $34.99 |
| 27 | 131446065 | Body Price: Call Us |
| 27 | 539104896 | HOSE Price: $11.99 |
| 28 | 131437250 | Shim +.090mm Price: Call Us |
| 28 | 131437263 | Shim +1.225mm Price: Call Us |
| 28 | 539105154 | T-ASSY Price: $27.99 |
| 29 | 131446066 | Spring Price: Call Us |
| 29 | 539105168 | NUT 9/16-18 JIC CAP Price: $2.99 |
| 30 | 131446070 | Pin Price: Call Us |
| 31 | 131446068 | Spacer Price: Call Us |
| 32 | 131416150 | Nozzle Price: Call Us |
