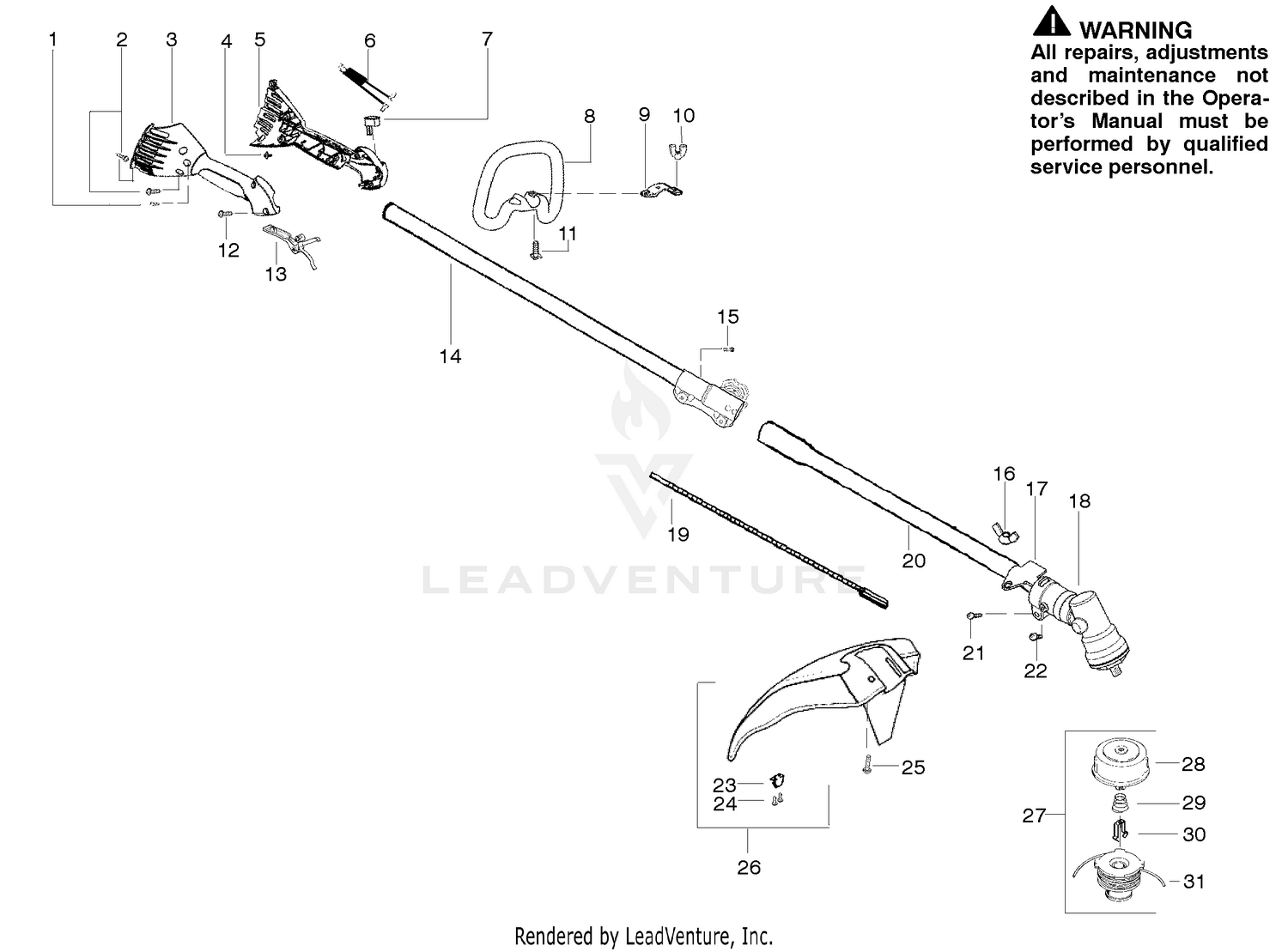

Handle & Controls
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530015805 | Screw-alignment Price: $1.99 |
| 2 | 530015886 | Screw Price: $1.99 |
| 3 | 530057983 | Hsg.-Throttle right Price: $7.99 |
| 4 | 530016326 | Screw-Cable Retention Price: $1.99 |
| 5 | 530057984 | Hsg.-Left throttle Price: $6.99 |
| 6 | 530058843 | Assy-Wire Price: $5.99 |
| 7 | 530069572 | Kit-Switch Price: $4.99 |
| 8 | 530059101 | ASSY HANDLE GAS ASSIST 1 This part replaces 530056251. Price: $6.99 |
| 9 | 530059185 | Clamp-Handle Price: $2.99 |
| 10 | 530091373 | Nut This part replaces 530016152. Price: $1.99 |
| 11 | 530015820 | Bolt Price: $1.99 |
| 12 | 530015886 | Screw Price: $1.99 |
| 13 | 545017701 | TRIGGER THROTTLE RED This part replaces 530058759. Price: $1.99 |
| 15 | 530016344 | Screw Price: $1.99 |
| 16 | 530091373 | Nut This part replaces 530016152. Price: $1.99 |
| 17 | 530057554 | Bracket-Shield Price: $2.99 |
| 18 | 530096099 | Gearbox Price: $32.99 |
| 19 | 530096218 | Shaft-Flex (lower) Price: $6.99 |
| 20 | 530071789 | Assy-Lower Shaft Price: $17.99 |
| 21 | 530016014 | Screw Price: $1.99 |
| 22 | 530016224 | Screw Price: $1.99 |
| 23 | 530052285 | Limiter-Line Price: $1.99 |
| 24 | 530015814 | Screw Price: $1.99 |
| 25 | 530015820 | Bolt Price: $1.99 |
| 28 | 530095772 | Assy-Hub/Arbor Price: $5.42 |
| 29 | 530053241 | Spring-Return Price: $1.99 |
| 30 | 530401957 | Retainer-Spool Price: $1.99 |
| 31 | 952711551 | Accy--Spool w/Line This part replaces 952711580. Price: $8.95 |
