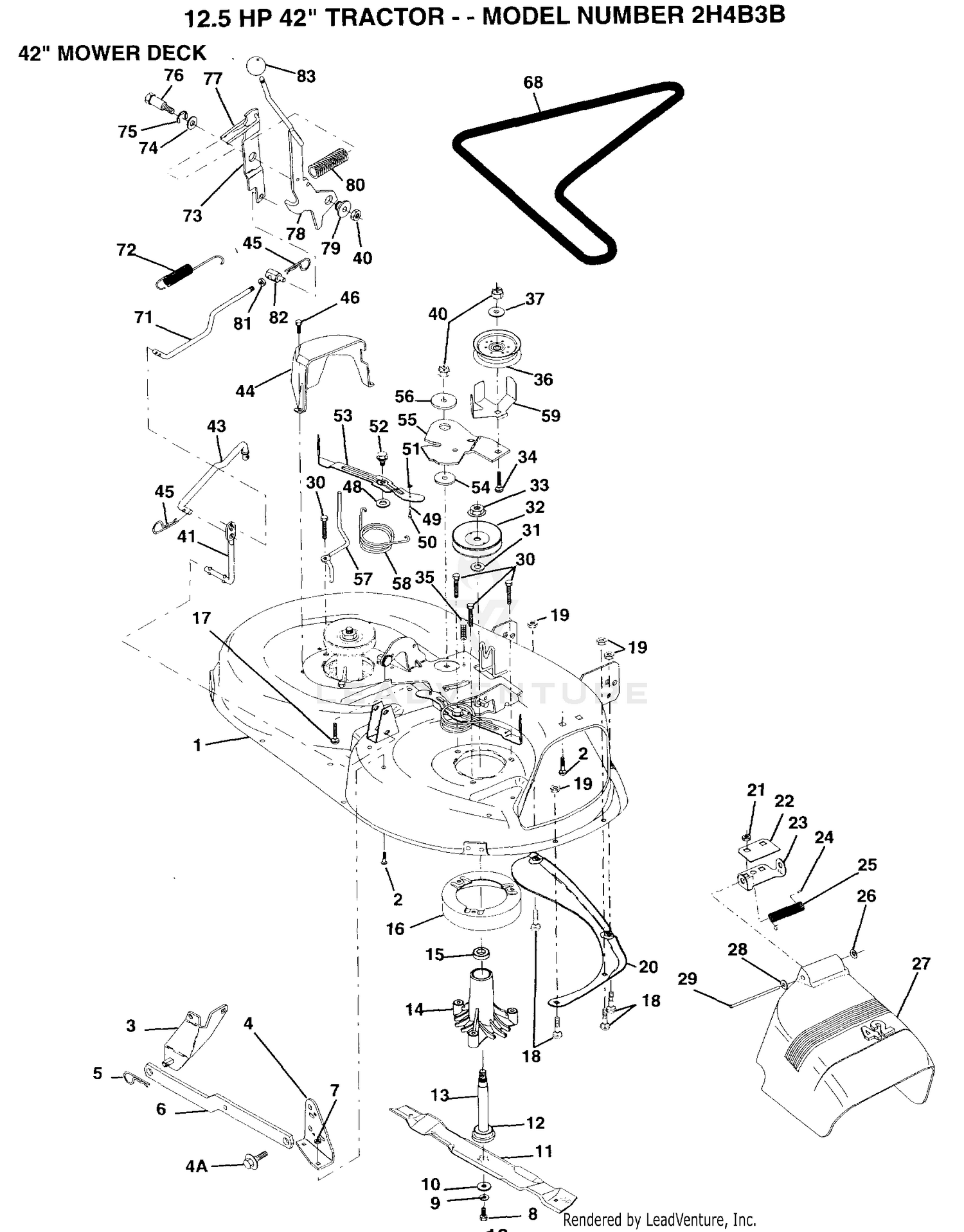

| Ref | Part Number | Description |
|---|
| 1 |
140081 |
SUB= 144393 Price: Call Us |
| 2 |
72140506 |
BOLT Price: Call Us |
| 2 |
86-5780 |
RH REAR STEERING TUBE ASM Price: $109.22 |
| 3 |
138017 |
BRKT ASM SWAY BAR Price: Call Us |
| 3 |
86-5790 |
LH REAR STEERING TUBE ASM Price: $104.10 |
| 4 |
138440 |
BRKT DECK SW BAR Price: Call Us |
| 4 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 4A |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 6 |
110-4750 |
DRIVE AXLE ASM This part replaces 100-3784. Price: $8,909.28 |
| 6 |
130832 |
SUB= 130833 Price: Call Us |
| 7 |
73800500 |
NUT Price: Call Us |
| 7 |
74-6450 |
BRACKET-BULKHEAD, STEERING Price: $44.73 |
| 8 |
76-9290 |
BRACKET-DRAIN, CASE Price: $9.53 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 10 |
32128-33 |
NUT-HF Price: $0.25 |
| 11 |
340-70 |
NUT-LOCK Price: $2.10 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 12 |
86-3140 |
HOSE ASM Price: $68.42 |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 13 |
76-9590 |
HOSE ASM Price: $73.44 |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 14 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 15 |
110485X |
BEARING Price: Call Us |
| 15 |
98-7076 |
STOP-AXLE Price: $19.04 |
| 16 |
136929 |
SUB= 140329 Price: Call Us |
| 16 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 17 |
72110610 |
BOLT RDHD 3/8-16 Price: Call Us |
| 18 |
72140505 |
BOLT Price: Call Us |
| 18 |
98-3867 |
WASHER-THRUST Price: $3.21 |
| 19 |
73800500 |
NUT Price: Call Us |
| 19 |
74-5700 |
BEARING-NEEDLE, ROLLER Price: $27.84 |
| 20 |
136888 |
SUB= 918136888 Price: Call Us |
| 20 |
340-74 |
NUT-LOCK, BULKHEAD Price: $4.83 |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 21 |
86-2730 |
DISCONTINUED Price: Call Us |
| 22 |
134753 |
STIFFENER BRKT Price: Call Us |
| 22 |
2412-74 |
R-CLAMP Price: $2.37 |
| 23 |
131267 |
DEFLECTOR BRKT Price: Call Us |
| 23 |
325-36 |
SCREW-HH Price: $7.20 |
| 24 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 24 |
32104-37 |
SCREW-HWH, THREAD CUT Price: $3.26 |
| 25 |
123713X |
SPRING TORSION Price: Call Us |
| 25 |
3296-68 |
NUT-LOCK, NI Price: $14.67 |
| 26 |
110452X |
NUT PUSH M Price: Call Us |
| 26 |
92-1765 |
WASHER-THRUST Price: $2.57 |
| 27 |
130968 |
DEFLECTOR.SHIELD Price: Call Us |
| 27 |
99-7500 |
DISCONTINUED Price: Call Us |
| 28 |
19111016 |
WASHER Price: Call Us |
| 28 |
33114-025 |
SCREW-HH Price: $0.70 |
| 29 |
131491 |
HINGE ROD Price: Call Us |
| 29 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 30 |
138776 |
SUB= 157722 Price: Call Us |
| 30 |
95-4393 |
GEAR-DRIVEN Price: $115.85 |
| 31 |
129963 |
WASHER Price: Call Us |
| 31 |
340-156 |
FITTING-ELBOW 45 Price: $67.70 |
| 32 |
129861 |
SUB= 153535 Price: Call Us |
| 32 |
237-166 |
O-RING Price: $10.46 |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 33 |
99-7502 |
PISTON MOTOR ASM Price: $2,330.63 |
| 34 |
340-139 |
FITTING-ELBOW 90 Price: $117.76 |
| 34 |
72110622 |
BOLT Price: Call Us |
| 35 |
133835 |
XMAS TREE FASTNER Price: Call Us |
| 35 |
325-6 |
SCREW-HH Price: $1.42 |
| 36 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 36 |
32120-15 |
RING-SNAP, EXT Price: $1.20 |
| 37 |
19131316 |
WASHER Price: Call Us |
| 37 |
340-18 |
FITTING-HYD, 90 DEG Price: $38.93 |
| 38 |
80-8660 |
SPACER-COUPLER Price: $49.67 |
| 39 |
3256-71 |
WASHER-FLAT Price: $0.81 |
| 40 |
325-35 |
SCREW-HH Price: $2.37 |
| 40 |
73800600 |
NUT Price: Call Us |
| 41 |
133551 |
PIVOT ROD Price: Call Us |
| 42 |
32128-49 |
NUT-HHF Price: $1.04 |
| 43 |
140083 |
ROD CLUTCH W/NIBS Price: Call Us |
| 43 |
32151-104 |
RING-RETAINING, EXTERNAL Price: $4.85 |
| 44 |
140088 |
GUARD MAND LH BLK Price: Call Us |
| 44 |
93-5268 |
NUT-LUG Price: $2.20 |
| 45 |
4497H |
RETAINER M Price: Call Us |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 46 |
353-508 |
PLUG-HH Price: $7.96 |
| 47 |
100-3795 |
JOINT-BALL Price: $76.85 |
| 48 |
100-3796 |
SPACER-JOINT, BALL Price: $13.33 |
| 48 |
133944 |
HARD SMALL WASHER Price: Call Us |
| 49 |
133940 |
SUB= 151785 Price: Call Us |
| 49 |
340-97 |
FITTING-ELBOW, 90 DEG Price: $36.21 |
| 50 |
131340 |
SHOULDER BOLT Price: Call Us |
| 50 |
98-3806 |
HYD CYLINDER ASM Price: $818.91 |
| 51 |
69180 |
LOCKNUT Price: Call Us |
| 51 |
92-5833 |
SPACER-JOINT, BALL Price: $20.71 |
| 52 |
139888 |
BOLT.SHLD.5/16-18 Price: Call Us |
| 52 |
94-8246 |
DISCONTINUED This part replaces 94-8246-03. Price: Call Us |
| 53 |
131845 |
BRAKE PAD ARM ASM Price: Call Us |
| 53 |
325-12 |
SCREW-HH Price: $2.27 |
| 54 |
133943 |
HARDENED WASHER Price: Call Us |
| 54 |
145-8330 |
PIN-AXLE, REAR This part replaces 98-7077. Price: $192.04 |
| 55 |
140084 |
SUB= 151785 Price: Call Us |
| 55 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 56 |
122052X |
SPACER RETAINER Price: Call Us |
| 56 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 57 |
140090 |
KEEPER BELT LH 42 Price: Call Us |
| 57 |
32136-14 |
NUT-HST Price: $3.38 |
| 58 |
140086 |
SPRING TORSN BRAK Price: Call Us |
| 59 |
141043 |
GUARD IDLER TUV Price: Call Us |
| 59 |
92-5836 |
WASHER Price: $5.34 |
| 60 |
106-6774 |
JOINT-BALL This part replaces 92-5838-01. Price: $79.04 |
| 62 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 63 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 65 |
88-7200 |
WASHER-FLAT Price: $2.51 |
| 66 |
33114-025 |
SCREW-HH Price: $0.70 |
| 67 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 68 |
104-2353 |
PIN-DOWEL Price: $2.17 |
| 68 |
140067 |
BELT-V MWR 82.625 Price: Call Us |
| 69 |
340-54 |
ELBOW-45 DEG Price: $40.72 |
| 71 |
142427 |
ROD CLUTCH 38/42 Price: Call Us |
| 72 |
131870 |
RETURN SPRING Price: Call Us |
| 73 |
127847 |
CLUTCH ARM SECOND Price: Call Us |
| 74 |
121748X |
WASHER Price: Call Us |
| 75 |
12000029 |
RING Price: Call Us |
| 76 |
128903 |
SHOULDER BOLT Price: Call Us |
| 77 |
127845 |
SPRING KEEPER Price: Call Us |
| 78 |
140334 |
SUB= 154810 Price: Call Us |
| 79 |
127498 |
BUSHING Price: Call Us |
| 80 |
128759 |
SUB= 918128759 Price: Call Us |
| 81 |
73350600 |
NUT Price: Call Us |
| 82 |
133205 |
TRUNION Price: Call Us |
| 83 |
106932X |
KNOB T(3/8 HOLE) Price: Call Us |
| 130794 |
MANDREL |
ASM Price: Call Us 130794 |
