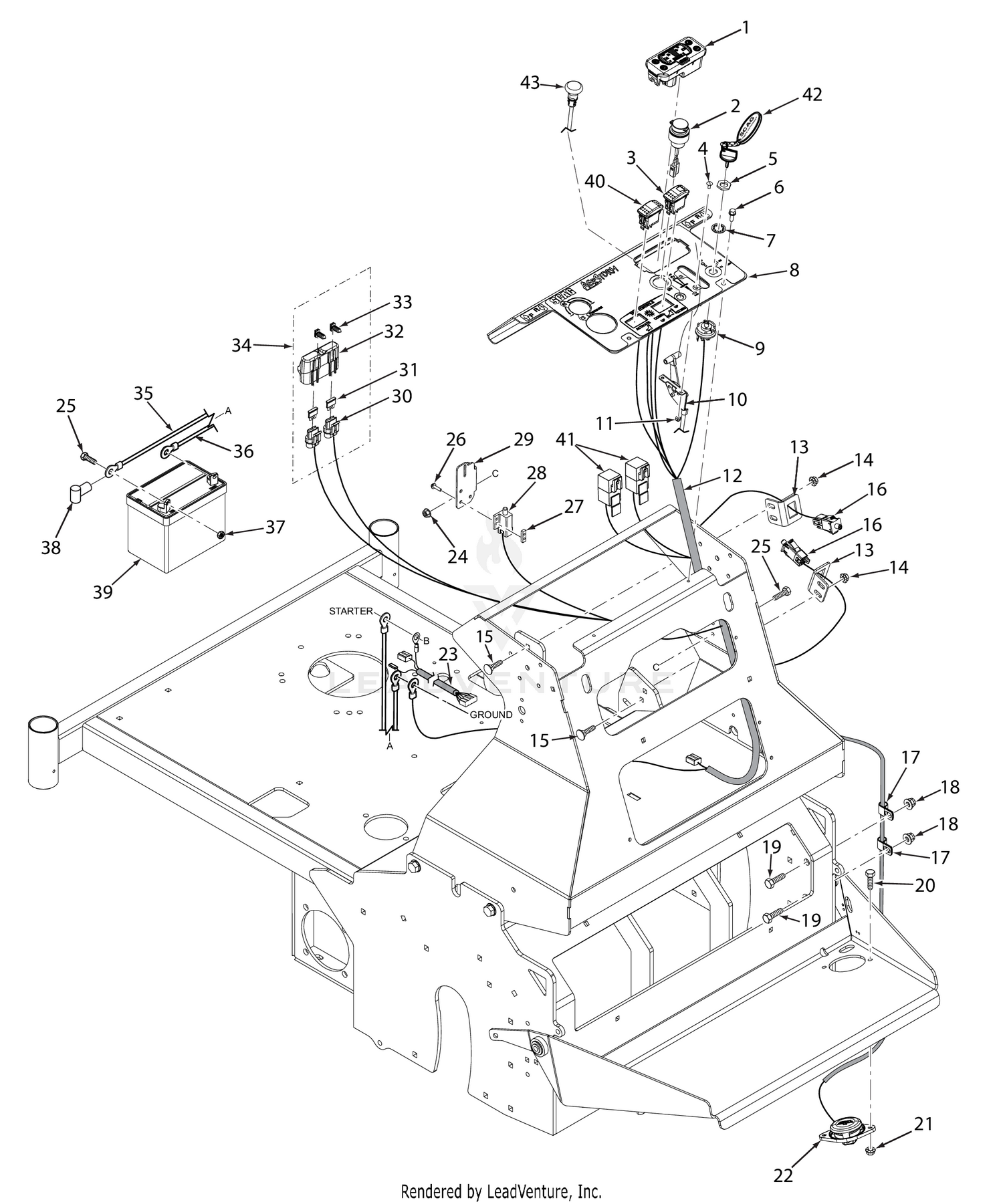

| Ref | Part Number | Description |
|---|
| 1 |
484721 |
Tiger Eye, Cluster Gauge Price: Call Us |
| 2 |
485568 |
Power Plug, 12V Price: Call Us |
| 3 |
487484 |
Switch, Rocker - Lighted Price: Call Us |
| 4 |
04003-43 |
Bolt, Carriage #10-24 x 1/2" Price: Call Us |
| 5 |
48017-04 |
Nut, 5/8-32 Special Price: Call Us |
| 6 |
04011-14 |
Screw, Self-Tapping 1/4-20 x 3/4 Price: Call Us |
| 7 |
48017-03 |
LOCK WASHER, 5/8" INTERNAL TOOTH Price: Call Us |
| 8 |
463520 |
Instrument Panel w/Decal Price: Call Us |
| 9 |
48798 |
KEY SWITCH(INCLUDES MOUNTING HARDWARE) Price: Call Us |
| 10 |
484665 |
Throttle Cable Price: Call Us |
| 11 |
04021-26 |
Nut, Elastic Stop #10-24 Price: Call Us |
| 12 |
487481 |
Wire Harness Price: Call Us |
| 13 |
429195 |
Bracket, Height Switch Price: Call Us |
| 14 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 15 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 16 |
486365 |
Switch, Plunger, Double Pole, Snap Price: Call Us |
| 17 |
48030-15 |
Wire Loom Price: Call Us |
| 18 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 19 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 20 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 21 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 22 |
487354 |
Switch, Foot Price: Call Us |
| 23 |
485673 |
Wire Harness Adapter, Kohler - 23CV Price: Call Us |
| 24 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 25 |
04001-01 |
BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5 Price: Call Us |
| 26 |
04010-12 |
Screw, Hex-Slotted Washer Head #10 32 x 3/4" Price: Call Us |
| 27 |
422373 |
Plate, Threaded Price: Call Us |
| 28 |
481637 |
Switch, Interlock, Park Brake Normally Open Price: Call Us |
| 29 |
427269 |
Bracket, Neutral Switch Price: Call Us |
| 30 |
483629 |
Fuse Holder Assembly Price: Call Us |
| 31 |
48298 |
FUSE, 20 AMP BLADE TYPE AUTOMOTIVE Price: Call Us |
| 32 |
483571 |
Cover, Sealed Double Price: Call Us |
| 33 |
428588 |
Mounting Bracket, Operator Presence Price: Call Us |
| 34 |
483642 |
Double Fuse Assy. Price: Call Us |
| 35 |
48029-38 |
Cable, Battery - Red 60" w/Braid Price: Call Us |
| 36 |
48029-19 |
Battery Cable, Black Price: Call Us |
| 37 |
04020-02 |
Nut, 1/4 - 20 Hex Price: Call Us |
| 38 |
48126 |
RUBBER BOOT Price: Call Us |
| 39 |
483665 |
Battery, 350 CCA (not available through Scag) Price: Call Us |
| 40 |
487483 |
Switch, Rocker Price: Call Us |
