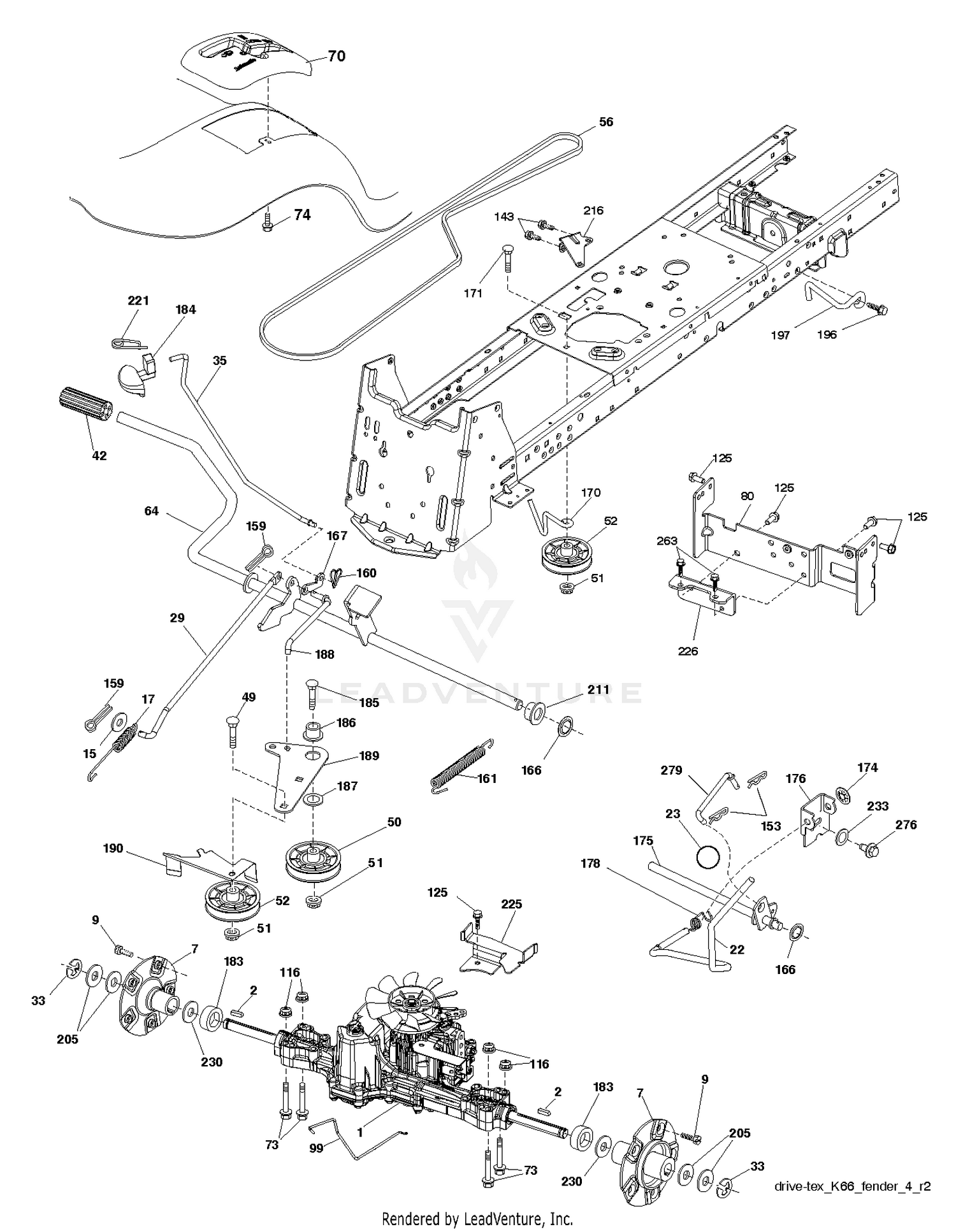

| Ref | Part Number | Description |
|---|
| 1 |
108-2928-01 |
BOX ASM Price: $1,031.60 |
| 2 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 2 |
532007070 |
KEY 1/4 X 2.5 Price: $3.99 |
| 3 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 4 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 5 |
110-1376 |
PIVOT PIN ASM Price: $30.46 |
| 6 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 7 |
144-7097 |
TINE-SCARIFIER This part replaces 110-0259-03. Price: $55.22 |
| 7 |
532199837 |
HUB.ASM.WHEEL.REAR.23"TEX Price: $59.99 |
| 8 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 9 |
283-60 |
PIN-CLEVIS Price: $6.45 |
| 9 |
532140080 |
HUB BOLT Price: $2.99 |
| 10 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 11 |
23-2790-01 |
BLADE-SCRAPER Price: $323.46 |
| 12 |
110-1395-03 |
TOOL BAR ASM Price: $548.35 |
| 14 |
23-2770 |
ROD-ACTUATING Price: $97.95 |
| 15 |
23-2740 |
PIN-ACTUATING Price: $94.46 |
| 15 |
819131316 |
WASHER Price: $2.99 |
| 16 |
108-2288-01 |
SUPPORT-SPRING Price: $45.53 |
| 17 |
20-9420-01 |
COMP SPRING Price: $106.49 |
| 17 |
532401072 |
SPRING.BRAKE.K46 Price: $4.99 |
| 18 |
112-1400 |
PIVOT ASM Price: $241.88 |
| 19 |
3256-7 |
WASHER-FLAT Price: $0.75 |
| 20 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 21 |
62-7400 |
DECAL Price: $24.54 |
| 22 |
323-6 |
SCREW-HH Price: $0.66 |
| 22 |
532197329 |
ROD.SHIFT.FENDER.STGT. Price: $49.99 |
| 23 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $8.99 |
| 29 |
532407245 |
ROD.BRAKE.K66 Price: $19.99 |
| 33 |
812000053 |
E RING HYT Price: $3.99 |
| 35 |
532197722 |
ROD.BRAKE.PARKING.LT.T Price: $8.99 |
| 42 |
532008883 |
PEDAL COVER This part replaces 532124872. Price: $3.99 |
| 49 |
872110614 |
BOLT Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $9.99 |
| 51 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $9.99 |
| 56 |
532125907 |
BELT Price: $27.99 |
| 64 |
532196200 |
SHAFT.ASM.PEDAL.BRAKE. Price: $22.99 |
| 73 |
874490544 |
BOLT HEX 5/16-18 GR 5 Price: $2.99 |
| 74 |
532142432 |
SCREW.HI-LO.CONSOLE Price: $3.99 |
| 80 |
583970702 |
TORQUE STRAP PNT BLACK This part replaces 532407182. Price: $8.99 |
| 99 |
532415744 |
ROD.SPRING.BYPASS.K66.GT.Z Price: $6.99 |
| 116 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
| 143 |
817490508 |
SCREW LT Price: $3.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 159 |
876020412 |
COTTER PIN Price: $3.99 |
| 160 |
532169484 |
RETAINER CLIP Price: $4.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $7.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $2.99 |
| 167 |
532405257 |
LATCH.BRAKE.SPRING Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $3.99 |
| 171 |
872110616 |
BOLT Price: $3.99 |
| 174 |
532197289 |
NUT.PUSH.500.2006 Price: $2.99 |
| 175 |
532408539 |
SHAFT.ASM.SHFT.T2.TLT Price: $14.99 |
| 176 |
532196214 |
ARM.CLEVIS.ROD.SHIFT Price: $4.99 |
| 178 |
532197456 |
SPRING.SHIFT.GT2006 Price: $2.99 |
| 183 |
532197357 |
SPACER.AXLE.HG.TEX Price: $4.99 |
| 185 |
872110622 |
BOLT Price: $0.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $3.99 |
| 187 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $1.99 |
| 189 |
532194317 |
BELLCRANK.GROUND.DRIVE.TEX. Price: $3.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $4.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 197 |
532199769 |
BRKT.ANIT-ROTATION.CLUTCH Price: $4.99 |
| 205 |
532123800 |
WASHER Price: $3.99 |
| 211 |
532196212 |
BUSHING.SHAFT.BRAKE.HAND Price: $2.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $3.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $2.99 |
| 225 |
532407311 |
KEEPER.BELT.TRANSAXLE.K66 Price: $3.99 |
| 226 |
532407109 |
BRACKET.MOUNT.TORQUE.K66.TG Price: $5.99 |
| 230 |
532007563 |
WASHER T Price: $4.99 |
| 233 |
532405296 |
WASHER SERRATED Price: $3.99 |
| 263 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 276 |
874780716 |
BOLT FIN HEX 7/16-14 X 1 Price: $2.99 |
