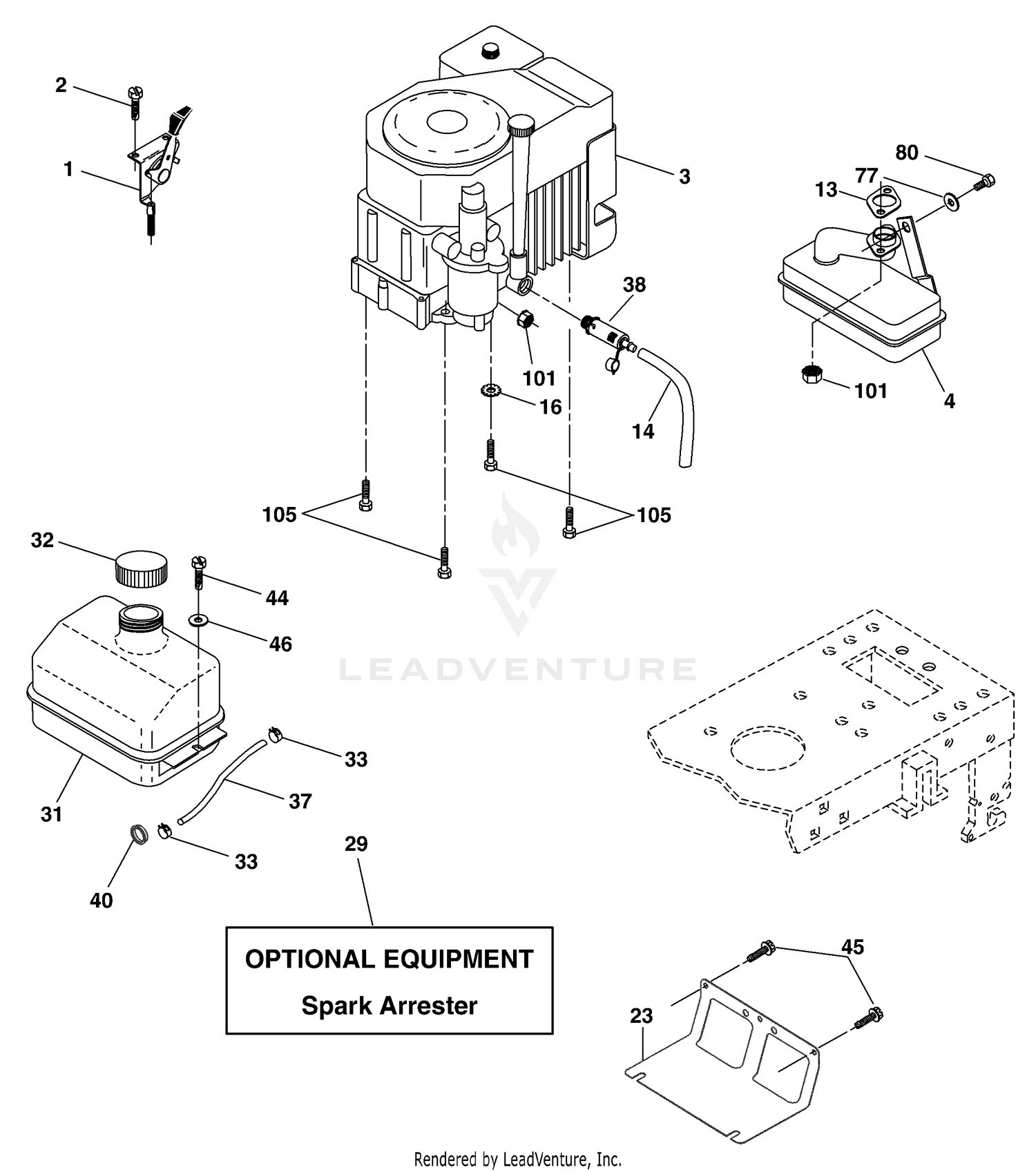

| Ref | Part Number | Description |
|---|
| 1 |
532170805 |
CONTROL.THROTTLE.LT/YT Price: $27.99 |
| 1 |
76-5260 |
DISCONTINUED Price: Call Us |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 2 |
94-3265 |
GLOW PLUG CABLE ASM Price: $26.36 |
| 3 |
94-3264 |
PLUG-GLOW Price: $57.03 |
| 4 |
532174667 |
MUFFLER.KOHL.CV491.W/PORT Price: $119.99 |
| 4 |
76-5290 |
WASHER-SPRING Price: $0.53 |
| 5 |
94-3266 |
NUT Price: $0.75 |
| 6 |
33003-00 |
NUT-HF This part replaces 94-3267. Price: $0.25 |
| 7 |
3255-7 |
WASHER-LOCK/EXT This part replaces 76-5310. Price: $1.39 |
| 8 |
48-7880 |
NUT-HEX This part replaces 94-3251. Price: $0.25 |
| 13 |
532163831 |
KOHLER GASKET Price: $3.30 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532184900 |
TANK.ASM.FUEL.FRONT.W/CAP Price: $39.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 40 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 77 |
734115441 |
WASHER - 26X6.5X1.6 This part replaces 819101216. Price: $0.99 |
| 80 |
874760508 |
Bolt Hex Hd 5/16-18unc x 1/2 Price: $3.99 |
| 101 |
596433401 |
Nuts This part replaces 532163305. Price: $2.99 |
