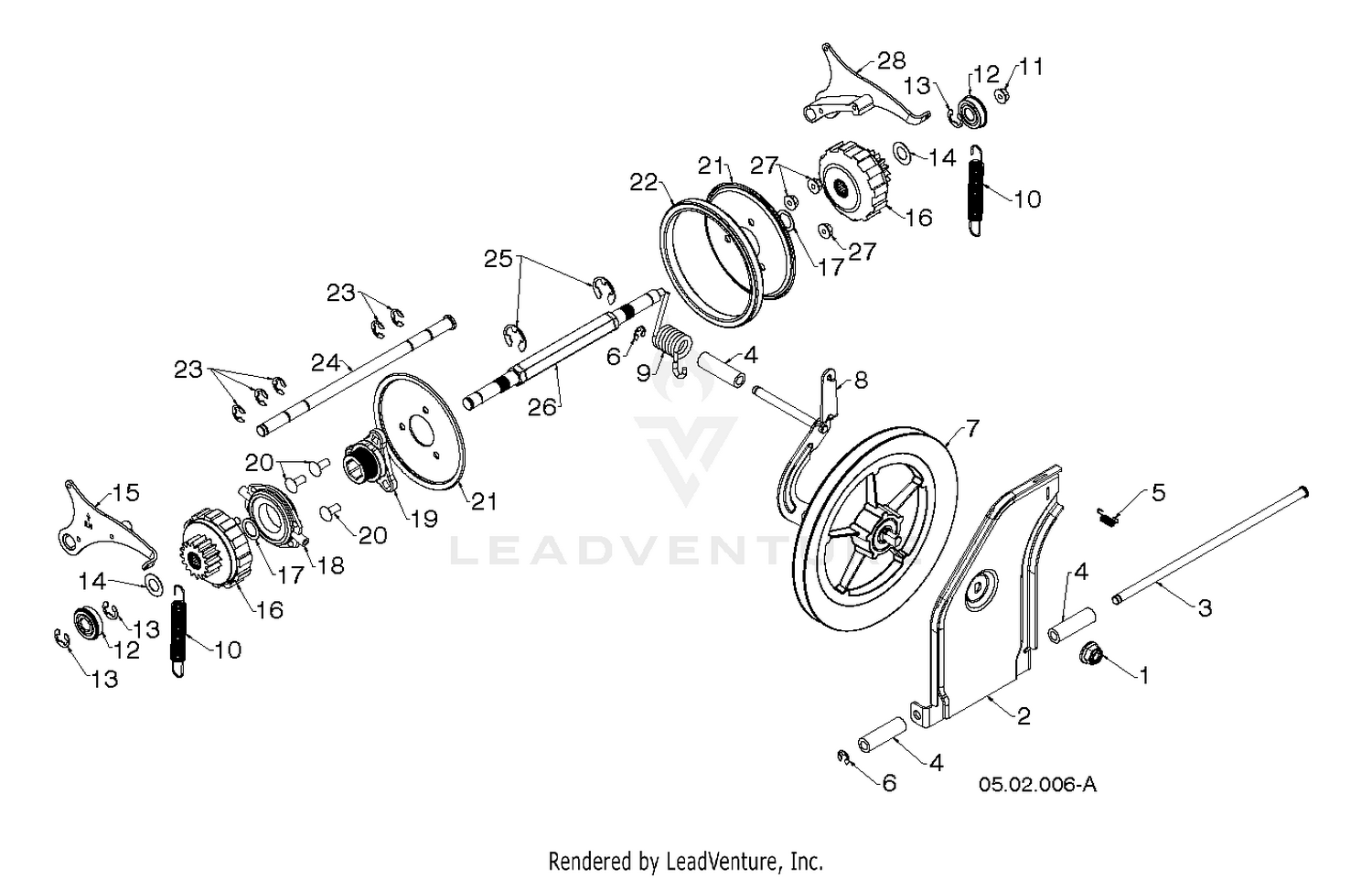

| Ref | Part Number | Description |
|---|
| 1 |
323-7 |
SCREW-HH Price: $0.65 |
| 1 |
521991102 |
NUT 1/2-13 HEX FLANGE NYLOK CL Price: $3.99 |
| 2 |
105-4886 |
NUT-TINNERMAN Price: $2.37 |
| 2 |
592723302 |
Plates Price: $17.99 |
| 3 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 3 |
581123002 |
ROD ROD,PIVOT, SWING PLATE ROD Price: $7.99 |
| 4 |
581732701 |
SPACER YOKE, TORSION SPRING Price: $3.99 |
| 4 |
63-9750 |
MOUNT Price: $18.92 |
| 5 |
532193885 |
SPRING LATCH Price: $3.99 |
| 5 |
63-8410 |
WASHER Price: $1.76 |
| 6 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 6 |
595841101 |
RETAINER RING E-RING CLEAR ZI Price: $1.99 |
| 7 |
104-7201 |
NUT-HF Price: $0.69 |
| 7 |
581328402 |
PULLEY ASSY TEXTURED TEXTURED Price: $32.99 |
| 8 |
1-303352 |
WASHER-SPINDLE Price: $1.20 |
| 8 |
581454203 |
BRACKET YOKE WELDMENT_MS 479 This part replaces 587193403. Price: $5.99 |
| 9 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 9 |
581315301 |
SPRING TORSION DRIVE Price: $3.99 |
| 10 |
119-1409-03 |
MOUNT-PLATE Price: $20.15 |
| 11 |
323-20 |
SCREW-HH Price: $1.28 |
| 11 |
585691501 |
NUT.HEX.FLANGE.LOCK.5/16-18 Price: $2.99 |
| 12 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 12 |
580756201 |
BEARING 9/16 ID. SNR Price: $5.99 |
| 13 |
115-0280 |
STEER SELECTOR VALVE ASM Price: $576.12 |
| 13 |
580756102 |
RING.RETAINING.1622-2RSNR.CLER Price: $2.99 |
| 14 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 14 |
580751301 |
WASHER FLAT.637IDX1.00ODX21GA Price: $2.99 |
| 15 |
321-11 |
SCREW-HH Price: $0.36 |
| 15 |
580756601 |
PAWL.ASM.RH.SNOW Price: $14.99 |
| 16 |
115-0384-03 |
PLATE-VALVE MOUNT Price: $24.74 |
| 16 |
580756001 |
GEAR.ASM.PLANETARY Price: $64.99 |
| 17 |
117-2247 |
CROSS-TRAX TRACTION VALVE ASM Price: $1,280.98 |
| 17 |
580756301 |
WASHER FLAT.59IDX1.065ODX25GA Price: $2.99 |
| 18 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 18 |
597412801 |
BEARING HOUSING ASSY TRUNNION Price: $29.99 |
| 19 |
323-8 |
SCREW-HH Price: $1.20 |
| 19 |
588069201 |
HUB.ASM.RUBBER WHEEL.SNO This part replaces 581090901. Price: $32.99 |
| 20 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 21 |
581091002 |
PLATE.RUBBER.WHEEL.BLACK Price: $9.99 |
| 22 |
597362801 |
Friction Drive Price: $11.99 |
| 23 |
586644301 |
CLIP E-RING_.500 SHAFT Price: $2.99 |
| 24 |
580755101 |
ROD ROD, PAWL ROD Price: $8.99 |
| 25 |
812000022 |
E-RING Price: $3.99 |
| 26 |
599265201 |
HEX SHAFT SERVICE KIT This part replaces 580752401. Price: $84.99 |
| 27 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 28 |
580756701 |
PAWL.ASM.LH.SNOW Price: $14.99 |
