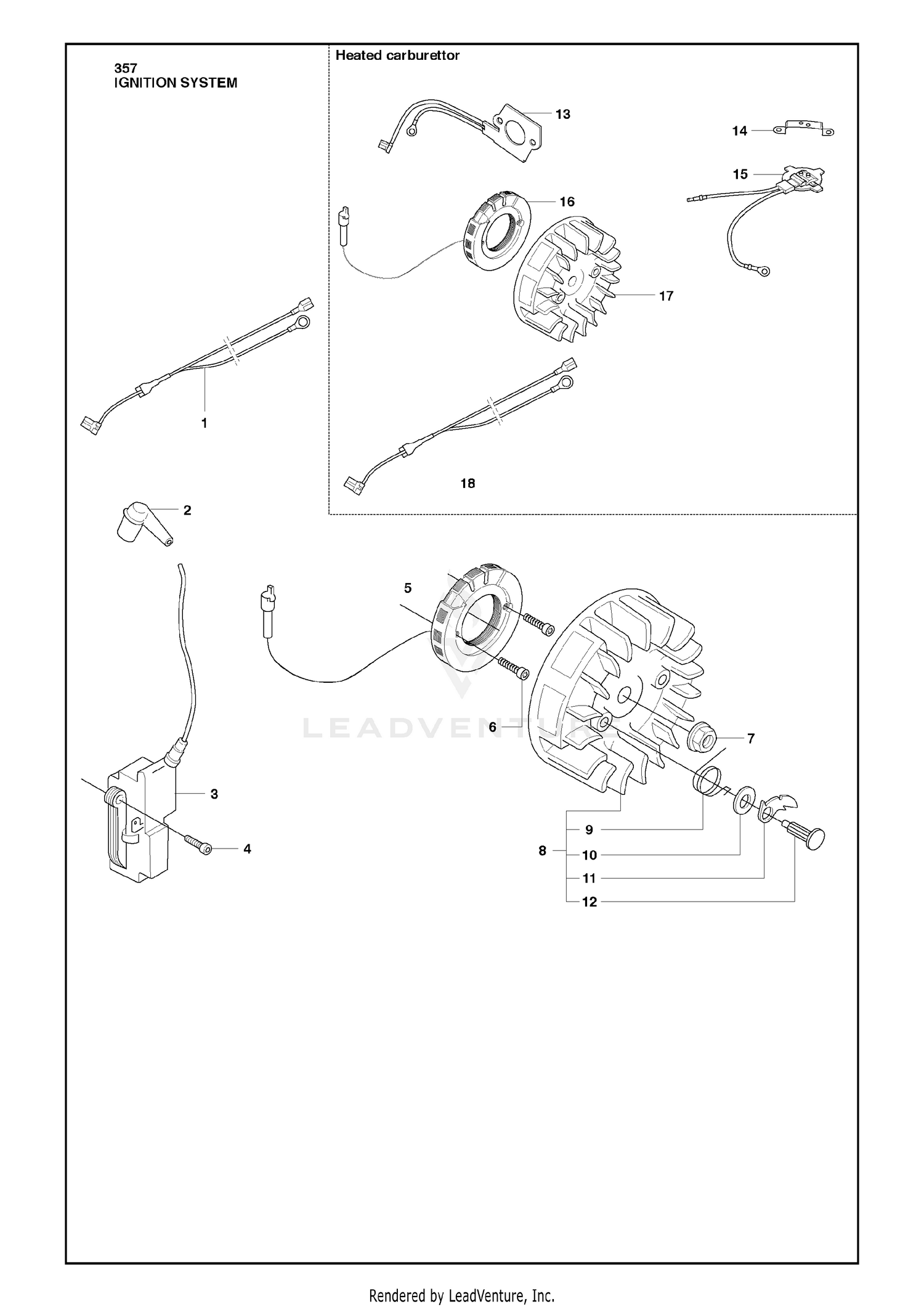

Ignition System
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503898701 | CABLE ASSY Price: $9.99 |
| 2 | 501485402 | SPARK PLUG CONN. KIT Price: $6.99 |
| 3 | 544047001 | IGNITION MODULE Price: $89.99 |
| 4 | 503215525 | SCREW Price: $2.99 |
| 6 | 33024-00 | NUT-LOCK, NI Price: $0.75 |
| 6 | 503202516 | SCREW Price: $2.99 |
| 7 | 33014-00 | NUT-HEX Price: $0.25 |
| 7 | 503220401 | NUT W/ WASHER Price: $3.99 |
| 8 | 3272-42 | PIN-COTTER Price: $0.25 |
| 8 | 503921801 | FLYWHEEL Price: $219.00 |
| 9 | 33095-00 | WASHER-FLAT Price: $0.25 |
| 9 | 503818101 | SPRING Price: $3.99 |
| 10 | 33098-00 | WASHER-FLAT Price: $0.68 |
| 10 | 503230042 | WASHER Price: $3.99 |
| 11 | 537103601 | PAWL Price: $4.99 |
| 11 | 74-9110 | PAD-PEDAL, REVERSE Price: $13.49 |
| 12 | 501819903 | SCREW Price: $4.99 |
| 12 | 74-9100 | PAD-PEDAL, FORWARD Price: $27.08 |
| 13 | 98-5474 | TRACTION PEDAL - WELDED Price: Call Us |
| 14 | 98-5445 | ROD END Price: $53.16 |
| 15 | 98-5466 | ROD - TRACTION Price: $53.39 |
| 16 | 233-37 | KNOB Price: $31.99 |
| 17 | 98-5479 | PLATE - CPL Price: Call Us |
| 18 | 98-5481 | LEVER - BRAKE Price: $107.34 |
| 19 | 54-0960 | PARK BRAKE SPRING Price: $18.37 |
| 27 | 98-5476 | LEVER Price: $49.09 |
| 28 | 32121-6 | PIN-ROLL, SLOTTED Price: $0.28 |
| 29 | 256-287 | BUSHING Price: $1.76 |
