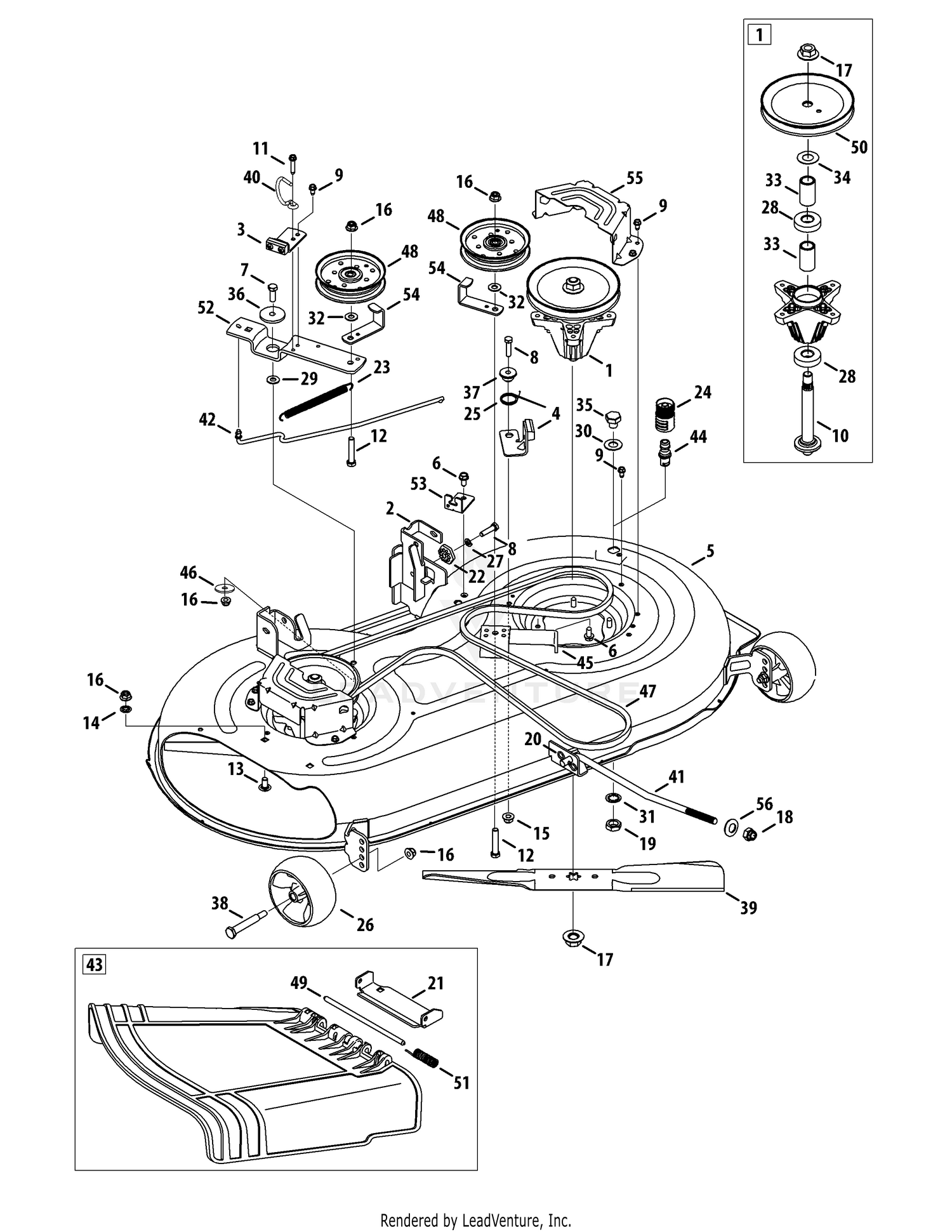

| Ref | Part Number | Description |
|---|
| 1 |
918-04822B |
SPINDLE ASSEMBLY This part replaces 918-04822A. Price: $112.61 |
| 2 |
683-0254B |
Bracket Assembly, Deck, Hanger LH Not Available This part replaces 683-0254B-0637. Price: |
| 3 |
983-04511 |
Brake Ass’y, Deck Price: $55.36 |
| 4 |
983-04525 |
Brake Ass’y, Deck Price: $39.96 |
| 5 |
983-04572A-0637 |
Deck 42" This part replaces 983-04572-0637. Price: $567.17 |
| 6 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 7 |
710-3005 |
Hex Screw, 3/8-16, 1.25, Gr5, Std Price: $3.61 |
| 8 |
710-0528 |
Hex Screw, 5/16-18, 1.25, Gr5, Std Price: $3.90 |
| 9 |
710-0599 |
Screw, Self-tapping, 1/4-20, 0.500 Price: $3.86 |
| 10 |
738-1186A |
Shift, Spindle, 6.11. Price: $45.83 |
| 11 |
710-0642 |
Screw, Self-tapping, 1/4-20, .750 Price: $4.05 |
| 12 |
710-3144 |
Hex Screw, 3/8-16, 2.00, Gr5, Std Price: $4.02 |
| 13 |
710-3178 |
CARRIAGE BOLT 3/8-16 x .75 Price: $3.93 |
| 14 |
712-0229 |
Nut, Push, 3/8 Price: $3.14 |
| 15 |
712-04063 |
Nut, Flange Lock, 5/16-18, Grf Price: $3.56 |
| 16 |
712-04065 |
Nut, Flange Lock, 3/8-16, Grf Price: $3.68 |
| 17 |
712-0417A |
HEX NUT Price: $6.50 |
| 18 |
712-04243 |
Nut, Lock, 1/2-13 Price: $3.52 |
| 19 |
712-0641 |
Nut, Hex, M16-1.5 This part replaces 912-0641. Price: $5.58 |
| 20 |
714-04043 |
Bow-Tie Cotter Pin Price: $4.24 |
| 21 |
783-06074A |
CHUTE BRACKET Not Available Price: |
| 22 |
917-04074 |
Gear, Deck, Adjustment Price: $11.45 |
| 23 |
932-0384 |
EXTENSION SPRING Not Available Price: |
| 24 |
921-04041 |
Water Nozzle Adapter Price: $20.19 |
| 25 |
732-04840 |
Spring, Torsion, .992 ID X 1.17 OD Price: $3.70 |
| 26 |
734-04155 |
Wheel, Deck, 5.0 Dia Ball Price: $19.04 |
| 27 |
936-0119 |
Washer, Lock, 5/16, Regular Duty Price: $4.29 |
| 28 |
741P0919B |
BALL BEARING This part replaces 941-0919. Price: $18.90 |
| 29 |
736-0344 |
FLAT WASHER This part replaces 936-0344. Price: $4.13 |
| 30 |
736-0187 |
Washer, flat, .64 X 1.24 X .06 Price: $4.02 |
| 31 |
736-0225 |
Washer, Lock, 5/8, Int Tooth Price: $3.90 |
| 32 |
736-0262 |
Washer, Flat, .385 x .870 x .092 Price: $3.66 |
| 33 |
750-04936 |
Spacer, .792 x 1.060 x 1.860 Price: $5.94 |
| 34 |
736-0351 |
Washer, Flat, .760 ID x 1.5 OD This part replaces 936-0351. Price: $3.93 |
| 35 |
738-04146 |
Plug, Bolt, M16 X 1.5 Price: $8.02 |
| 36 |
738-04162C |
Shoulder Spacer, .8840 x .190 This part replaces 738-04162A. Price: $12.76 |
| 37 |
748-04272 |
Shoulder Spacer Price: $6.47 |
| 38 |
938-3056 |
Bolt, Shoulder, .496 x 2.50, 3/8-16 Price: $8.53 |
| 40 |
747-05323 |
BELT KEEPER ROD Not Available Price: |
| 41 |
747-05141B |
DECK FRONT LIFT ROD This part replaces 747-05141A. Price: $19.44 |
| 42 |
747-05105B |
Rod, Control, Brake 42" Price: $19.15 |
| 43 |
631-05191A |
Discharge Chute Assembly This part replaces 631-04288. Price: $49.80 |
| 44 |
737-04003D |
Deck Water Nozzle Price: $20.69 |
| 45 |
783-06643-0637 |
Bracket, Support, Stationary Idler Price: $8.32 |
| 46 |
736-3039 |
Flat Washer, .407 x .812 x .135 This part replaces 936-3039. Price: $4.42 |
| 47 |
954-04060C |
Belt, V Type, A Sec X 96.5 This part replaces 954-04060B. Price: $46.63 |
| 48 |
753-08171 |
Pulley Kit, Idler, 4.25"Dia This part replaces 756-04129B. Price: $33.06 |
| 49 |
711-04847B |
Pin, Hinge, Dia .3125 x 7.96 Price: $7.63 |
| 50 |
956-1227 |
Pulley, Deck, 6.3 Dia Price: $23.08 |
| 51 |
732-04372 |
Spring, Torsion, .44 I.D. X 2.0 Price: $8.93 |
| 52 |
783-05946 |
Pivot idler Bracket, 46 Price: $33.69 |
| 53 |
783-06243-0637 |
Bracket, Cable, Deck Engage Price: $9.09 |
| 54 |
783-06368A-0637 |
Bracket, Guard, Belt, 4.25 Pulley Price: $18.68 |
| 55 |
783-06424A-0637 |
Deck Belt Cover, 42 Price: $9.16 |
