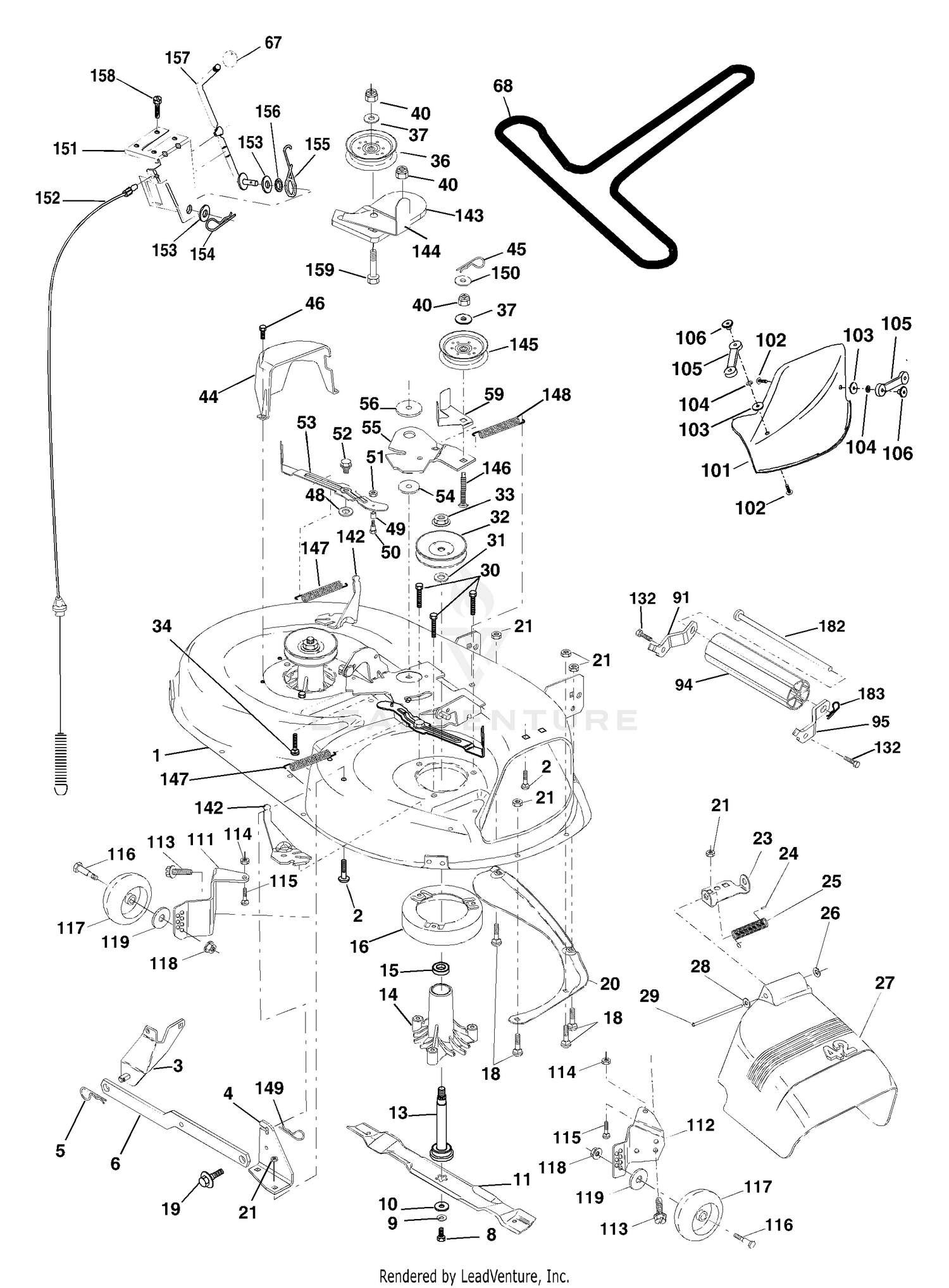

| Ref | Part Number | Description |
|---|
| 1 |
165892X421 |
Mower Deck Assembly, 42" Price: Call Us |
| 2 |
72140506 |
Bolt Price: Call Us |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 8 |
850857 |
Bolt 3/8-24 x 25 Grade 8 patched Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 010 |
112-7026 |
WHEEL BEARING CASE ASM This part replaces 98-9480. Price: $196.85 |
| 10 |
140296 |
Washer, Hardened Price: Call Us |
| 11 |
134149 |
Blade, Mulching 42" Price: Call Us |
| 11 |
138498 |
Blade Mower 42" Hi-Lift Price: Call Us |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
174493 |
Stripper, Mandrel Deck Price: Call Us |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 020 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 21 |
73680500 |
Nut Price: Call Us |
| 23 |
177563 |
Bracket, Deflector Mower 42" Price: Call Us |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 25 |
123713X |
Spring, Torsion, Deflector 2 52 Price: Call Us |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 27 |
130968X428 |
Shield, Deflector 42" Blk Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Gauge Price: Call Us |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 030 |
131-6554 |
GASKET-CASE, BEARING This part replaces 98-9634. Price: $7.12 |
| 30 |
173984 |
Screw Thdrol Washer Head Price: Call Us |
| 31 |
129963 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Toplock 9/16 Flange Price: Call Us |
| 34 |
72110614 |
Bolt Price: Call Us |
| 36 |
173438 |
Pulley, Idler, Flat Price: Call Us |
| 37 |
19131316 |
Washer 13/32 x 13/16 x 16 Gauge Price: Call Us |
| 040 |
112-7046 |
COVER-CASE, BEARING This part replaces 98-9487. Price: $66.00 |
| 40 |
73680600 |
Nut Price: Call Us |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 48 |
133944 |
Washer, Hardened Price: Call Us |
| 49 |
174284 |
Roller Assembly, Cam Follower Price: Call Us |
| 050 |
112-0180 |
SEAL-OIL This part replaces 98-9483. Price: $58.48 |
| 50 |
131340 |
Bolt, Shoulder #10-24 Grade 5 Price: Call Us |
| 51 |
69180 |
Locknut Price: Call Us |
| 52 |
139888 |
Bolt, Shoulder 5/16-18 UNC Price: Call Us |
| 53 |
131845 |
Arm Assembly, Pad, Brake Price: Call Us |
| 54 |
133943 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
122052X |
Spacer, Retainer Price: Call Us |
| 59 |
173442 |
Guard TUV Idler Price: Call Us |
| 060 |
98-9635 |
GASKET-COVER, BEARING CASE Price: $12.61 |
| 67 |
171598 |
Knob Price: Call Us |
| 68 |
144959 |
V-Belt, 42" Mower Price: Call Us |
| 070 |
98-9352 |
BOLT Price: $0.80 |
| 080 |
98-7568 |
BOLT Price: $0.84 |
| 090 |
99-8361 |
CASE-BEARING, MAIN Price: $222.76 |
| 91 |
180532 |
Bracket Asm. Noseroller LH Price: Call Us |
| 94 |
132264 |
Roller, Nose Price: Call Us |
| 095 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 95 |
180533 |
Bracket Asm. Noseroller RH Price: Call Us |
| 100 |
98-9485 |
BOLT-CASE, BEARING Price: $22.80 |
| 101 |
136420 |
Mulcher Cover Price: Call Us |
| 102 |
71081010 |
Screw Price: Call Us |
| 103 |
19061216 |
Washer, Flat Price: Call Us |
| 104 |
10071000 |
Washer, Lock Price: Call Us |
| 105 |
160793 |
Latch Assembly Price: Call Us |
| 106 |
2029J |
Nut, Weld Price: Call Us |
| 110 |
99-8360 |
CASE-BEARING, MAIN Price: $103.70 |
| 111 |
179292X421 |
Bracket, Gauge, Wheel LH Price: Call Us |
| 112 |
179293X421 |
Bracket, Gauge, Wheel RH Price: Call Us |
| 113 |
17060510 |
Screw 3/8-16 x .625 Price: Call Us |
| 114 |
73510500 |
Nut, Keps 5/16 - 18 UNC Price: Call Us |
| 115 |
72110505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 116 |
4898H |
Bolt, Shoulder Price: Call Us |
| 117 |
165746 |
Wheel, Gauge Price: Call Us |
| 118 |
73930600 |
Nut Centerlock 3/8-16 Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 120 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 130 |
105-3716 |
MAIN BEARING CASE ASM Price: $289.08 |
| 132 |
17060612 |
Screw 3/8-16 x .75 Price: Call Us |
| 142 |
165890 |
Arm Spring Brake Mower Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
173441 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
173437 |
Pulley Idler Flat Price: Call Us |
| 146 |
173443 |
Bolt Carriage Idler Price: Call Us |
| 147 |
131335 |
Spring Extension Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091216 |
Washer 9/32 x 3/4 x 16 Ga. Price: Call Us |
| 151 |
169670 |
Bracket Clutch Cable Price: Call Us |
| 152 |
169676 |
Clutch Cable 42" Price: Call Us |
| 153 |
169674 |
Washer Flat 3/8" Type B Price: Call Us |
| 154 |
169675 |
Spring Retainer Price: Call Us |
| 155 |
169671 |
Spring Retention LVR CLTCH CAB Price: Call Us |
| 156 |
169672 |
Spacer Clutch Cable Price: Call Us |
| 157 |
169669 |
Rod Clutch Cable 3/8" Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 5/8 Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 UNC x 1-3/4 Price: Call Us |
| 182 |
179126 |
Rod Roller Nose Price: Call Us |
| 183 |
163552 |
Retainer Spring Price: Call Us |
