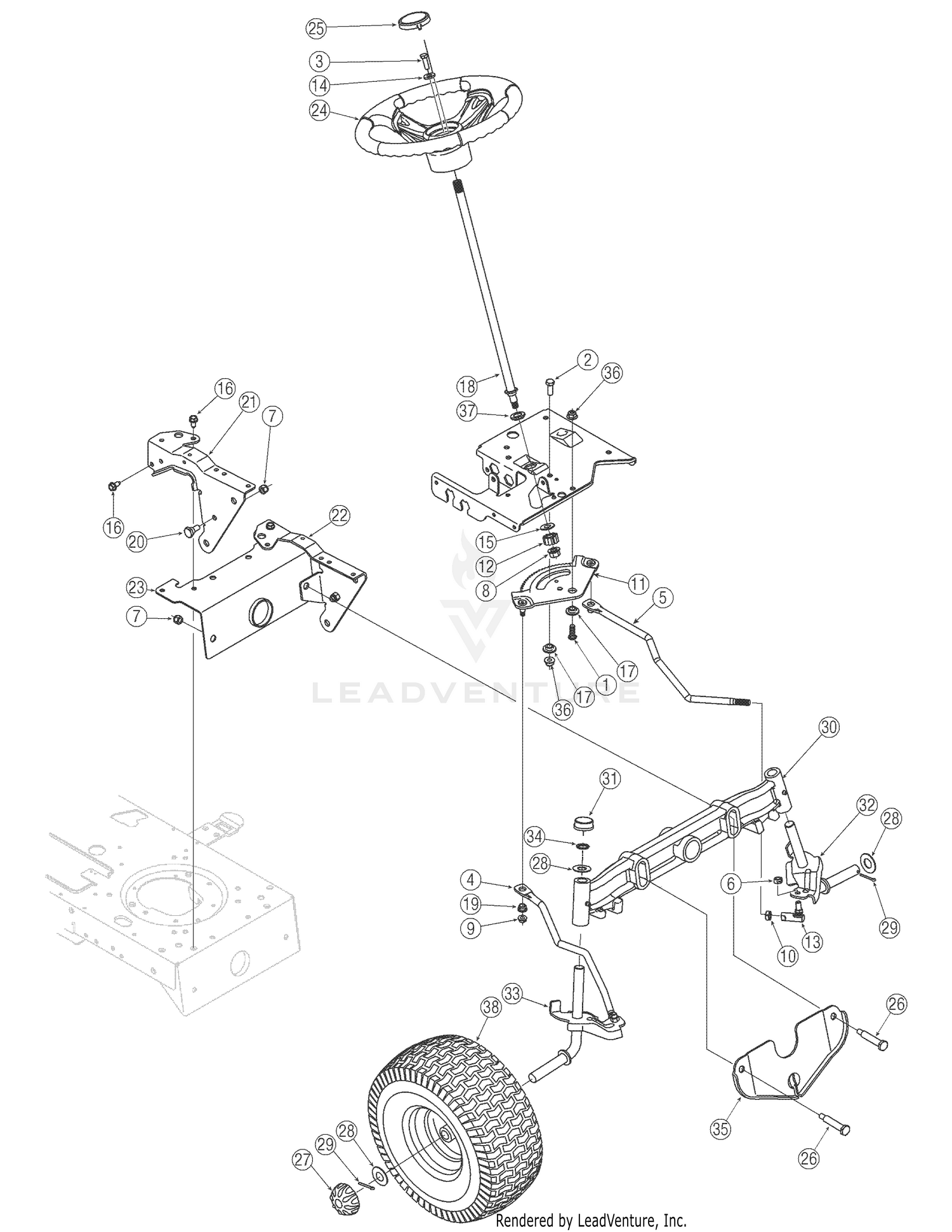

| Ref | Part Number | Description |
|---|
| 1 |
710-04095 |
Hex Screw, 3/8-16, 1.00, Gr5 Price: $4.39 |
| 2 |
710-0514 |
Hex Screw, 3/8-16, 1.00, Gr5 Price: $3.78 |
| 3 |
710-0643 |
Hex Screw, 5/16-18, 1.00, Gr5 Price: $5.99 |
| 4 |
711-1408 |
DRAG LINK (RH) Not Available Price: |
| 5 |
711-1409A |
DRAG LINK (LH) Not Available Price: |
| 6 |
712-0214 |
Nut, Hex Lock, 3/8-24 Price: $5.94 |
| 7 |
712-04065 |
Nut, Flange Lock, 3/8-16, Grf Price: $3.68 |
| 8 |
712-0459 |
Nut, Flange Lock, 7/16-20 Price: $4.39 |
| 9 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 10 |
912-0240 |
Nut, Jam, 7/16-20, Gr2 This part replaces 712-0240. Price: $3.90 |
| 11 |
717-1550F |
Steering Gear This part replaces 717-1550E. Price: $61.81 |
| 12 |
717-1554 |
Gear, Pinion, Steering Price: $9.44 |
| 13 |
923-0448A |
Ball Joint, 7/16-20, Lock This part replaces 723-0448A. Price: $22.55 |
| 14 |
736-3004 |
Washer, Flat, .406 x .875 x .105 Price: $4.08 |
| 15 |
736-3084 |
Washer, Flat, .51 x 1.12 x .06 Price: $4.39 |
| 16 |
710-1260A |
Screw, 5/16-18, 0.750 Price: $3.34 |
| 17 |
738-04154 |
Spacer, Shoulder, .38 x 1.00 x 31 Price: $5.08 |
| 18 |
738-1001A |
Shaft, Steering, .625 OD x 24.25 Not Available Price: |
| 19 |
941-0475 |
BUSHING .380 ID This part replaces 741-0475. Price: $3.74 |
| 20 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 21 |
783-0726E |
PIVOT SUPPORT BRACKET (RH) Not Available Price: |
| 22 |
783-0727D |
PIVOT SUPPORT BRACKET (LH) Not Available Price: |
| 23 |
783-0728B-0637 |
PIVOT BAR BRACKET (POWDER BLACK) Not Available This part replaces 783-0728. Price: |
| 24 |
631-04028 |
Steering Wheel Price: $64.50 |
| 25 |
731-04681 |
Steering Wheel Cap Price: $12.40 |
| 26 |
738-04128 |
Shoulder Screw, .5 x 2.380, 3/8-16 Price: $6.67 |
| 27 |
731-2290B |
HUB CAP This part replaces 731-2290A. Price: $3.82 |
| 28 |
736-0316 |
Flat Washer, .78 x 1.589 x .06 Price: $4.02 |
| 29 |
714-0162 |
COTTER PIN-5/32 DIA This part replaces 714-04039. Price: $4.29 |
| 30 |
919-04177E |
CAST PIVOT BAR AXLE This part replaces 719-04105. Price: $218.49 |
| 31 |
731-04693 |
HUB CAP Price: $4.08 |
| 32 |
938-04006A-0637 |
AXLE ASSEMBLY (LH) .750 DIA This part replaces 638-04006. Price: $48.06 |
| 33 |
938-04005A-0637 |
AXLE ASSEMBLY (RH) .750DIA This part replaces 638-04005. Price: $48.06 |
| 34 |
726-04035 |
Push Nut Price: $5.99 |
| 35 |
783-04568 |
Front Deck Hanger Bracket Price: $36.53 |
| 36 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 37 |
941-0656A |
BRG:HEX FLNG 5/8 This part replaces 741-0656A. Price: $4.69 |
| 38 |
634-05067-0911 |
Wheel Assembly Complete, 15 x 6 Price: $163.07 |
| 38 |
734-1731-0901 |
Tire Only 15 x 6 x 6 Price: $46.14 |
