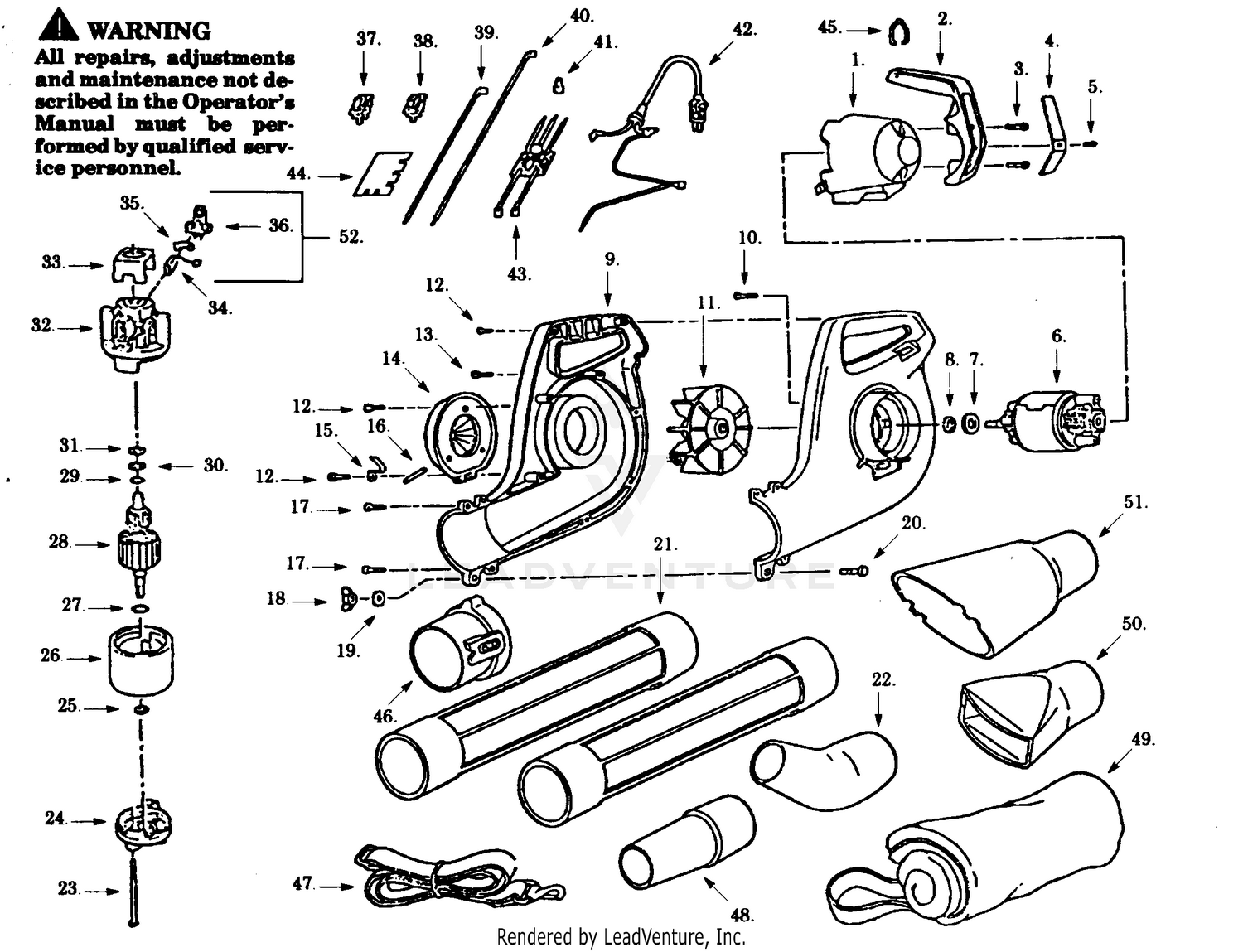

BLOWER ASSEMBLY
Parts (88)
| Ref | Part Number | Description |
|---|---|---|
| 0 | 632397 | CARBURETOR Price: Call Us |
| 1 | 125-3467 | HUB-BEARING, COVER Price: $79.25 |
| 1 | 534319602 | Motor Cover Price: $11.99 |
| 1 | 631776A | SHAFT & LEV Price: $12.00 |
| 2 | 119-1138 | SCREW-HWH Price: $0.64 |
| 2 | 534319702 | Handle Price: $3.33 |
| 2 | 631970 | RET SPRING Price: $3.00 |
| 3 | 125-3471 | GEAR-IDLER, 33 T Price: $157.43 |
| 3 | 534136402 | Screw Price: $1.99 |
| 4 | 534404355 | Plate Price: $1.99 |
| 4 | 631184 | WASHER Price: $1.25 |
| 5 | 534193700 | Screw Price: $1.99 |
| 5 | 631183 | WASHER This part replaces 631971. Price: $1.25 |
| 6 | 534225010 | Motor Price: $3.33 |
| 6 | 631778 | SHUTTER Price: $1.20 |
| 7 | 534136100 | Washer Price: $1.99 |
| 7 | 650506 | SCREW Price: $0.87 |
| 8 | 534747002 | Retaining Ring Price: $1.99 |
| 9 | 534334711 | R.H./L.H. Housing Price: $3.33 |
| 10 | 534136401 | Screw Price: $1.99 |
| 10 | 632740 | SHAFT & LEV This part replaces 631812. Price: $4.26 |
| 11 | 534398315 | Impeller Ass'y. Price: $3.33 |
| 11 | 632043 | SPRING Price: $1.25 |
| 12 | 534184700 | Screw Price: $1.99 |
| 12 | 631184 | WASHER Price: $1.25 |
| 13 | 534222400 | Screw Price: $1.99 |
| 13 | 631183 | WASHER Price: $1.25 |
| 14 | 534398605 | Inlet Cover Price: $6.99 |
| 14 | 631753 | SHUTTER Price: $1.25 |
| 15 | 534377000 | Spring Price: $3.33 |
| 15 | 630735 | SPRING Price: $1.25 |
| 16 | 534327200 | Hinge Pin Price: $1.99 |
| 16 | 631807 | FUEL FITTING Price: $6.03 |
| 17 | 534222402 | SCREW Price: $1.99 |
| 17 | 651025 | SCREW This part replaces 650417. Price: $1.18 |
| 18 | 534352300 | Wing Nut Price: $3.33 |
| 18 | 630766 | SPRING Price: $1.25 |
| 19 | 534356900 | Washer Price: $3.33 |
| 20 | 534352400 | Screw Price: $1.99 |
| 20 | 632281 | IDLE SCREW Price: $2.60 |
| 21 | 534352705 | Outlet Tube Price: $7.99 |
| 21 | 630766 | SPRING Price: $1.25 |
| 22 | 534373405 | Curved Nozzle Price: $3.33 |
| 22 | 630739 | WASHER Price: $1.25 |
| 23 | 534228700 | Screw Price: $1.99 |
| 23 | 630740 | O RING Price: $1.49 |
| 24 | 534207101 | Endbell Ass'y. (Drive) Price: $3.33 |
| 25 | 534228800 | Washer Price: $1.99 |
| 25 | 631867 | FLOAT BOWL Price: $2.34 |
| 26 | 534227001 | Field Ass'y. Price: $24.99 |
| 27 | 534747002 | Retaining Ring Price: $1.99 |
| 27 | 631024 | FLOAT SHAFT Price: $1.17 |
| 28 | 534225110 | Armature Ass'y. Price: $34.99 |
| 28 | 632019A | FLOAT This part replaces 632019. Price: $5.85 |
| 29 | 534246700 | Retaining Ring Price: $0.99 |
| 29 | 631028A | GASKET This part replaces 631028. Price: $1.95 |
| 30 | 534228802 | Washer Price: $0.99 |
| 30 | 631725 | INLET NEEDLE Price: Call Us |
| 31 | 534238903 | Washer Price: $1.99 |
| 31 | 631022 | CLIP Price: $1.25 |
| 32 | 534227501 | Endbell Ass'y. (Brush) Price: $3.33 |
| 33 | 534226000 | Insulator Price: $3.33 |
| 34 | 534227800 | Brush Price: $3.16 |
| 35 | 534228000 | Brush Spring Price: $1.99 |
| 36 | 534227700 | Brush Holder Price: $3.33 |
| 37 | 534332506 | On-Off Switch Price: $7.99 |
| 38 | 534332500 | Speed Switch Price: $3.33 |
| 39 | 534433700 | Leadwire Ass'y. Price: $3.33 |
| 40 | 534433800 | Leadwire Ass'y. Price: $3.33 |
| 40 | 631583 | POWER SCREW Price: $10.18 |
| 41 | 534561000 | Connector Price: $1.99 |
| 41 | 630740 | O RING Price: $1.49 |
| 42 | 534434000 | Power Cord Ass'y. Price: $3.33 |
| 42 | 630739 | WASHER Price: $1.25 |
| 43 | 534335300 | P.C. Board Ass'y. Price: $19.99 |
| 43 | 630738 | SPRING Price: $1.25 |
| 44 | 27110A | GASKET This part replaces 27110. Price: $1.45 |
| 44 | 534334800 | Mounting Board Price: $1.99 |
| 45 | 534270100 | Hanger Price: $1.99 |
| 46 | 534393800 | Adapter Tube Ass'y. Price: $6.99 |
| 47 | 534358900 | Shoulder Strap Price: $3.33 |
| 47 | 630748 | WELCH PLUG Price: $1.17 |
| 48 | 534333705 | Adapter Price: $3.33 |
| 48 | 631027 | WELCH PLUG Price: $1.17 |
| 49 | 534339900 | Vacuum Bag Price: $3.33 |
| 50 | 534339405 | Diffuser Nozzle Price: $3.33 |
| 51 | 534377200 | Vacuum Nozzle Ass'y. Price: Call Us |
| 52 | 534450400 | Brush Kit (Incl. 34,35,36) Price: $12.32 |
