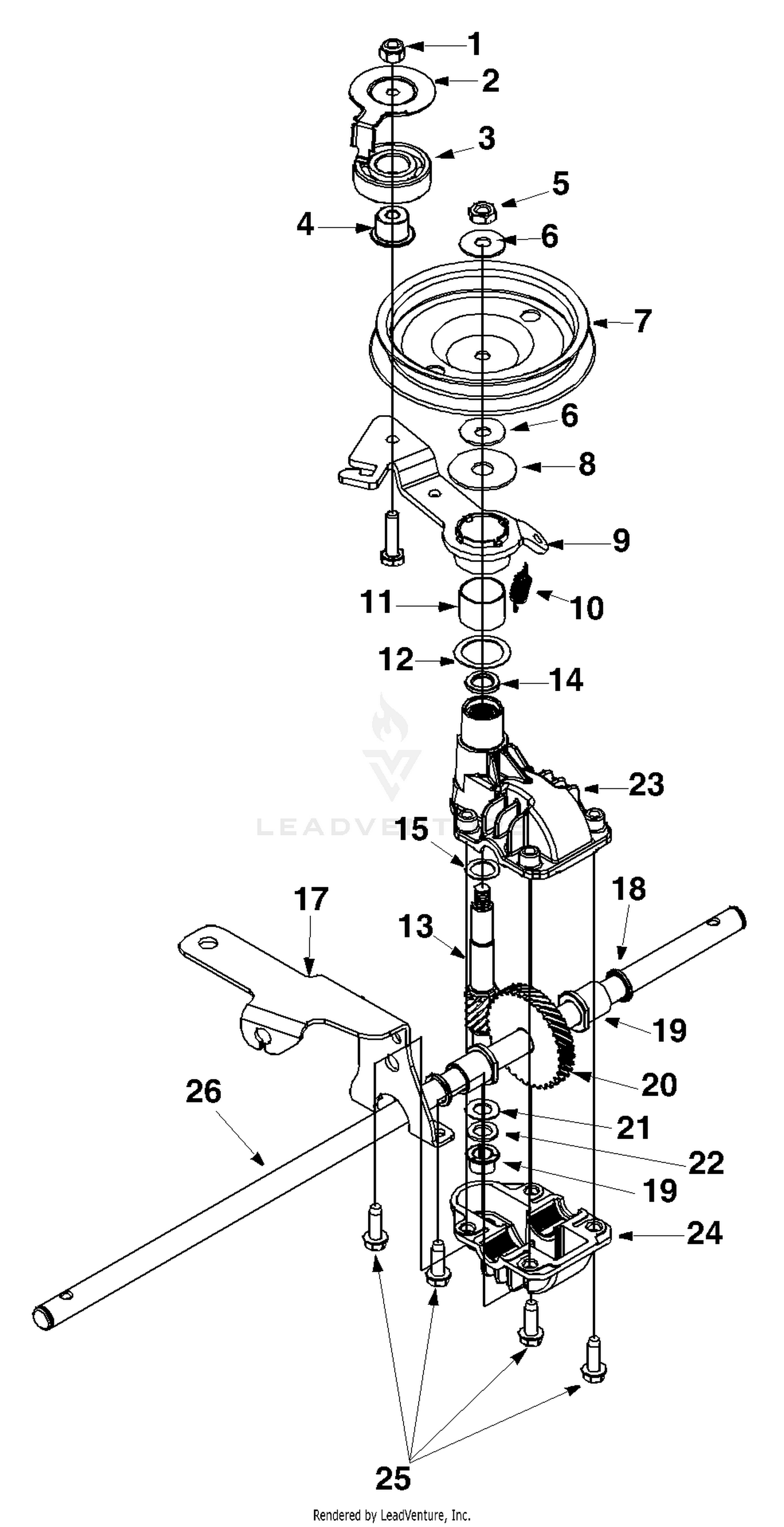

| Ref | Part Number | Description |
|---|
| 1 |
712-0896 |
L-Nut 1/4-28 Price: $4.08 |
| 2 |
782-7598 |
Belt Keeper Price: $13.38 |
| 3 |
941-0600 |
BALL BEARING This part replaces 741-0124. Price: $23.34 |
| 4 |
750-1050 |
Flange Bearing Price: $4.56 |
| 5 |
712-3025 |
Hex Jam Nut 5/16-24 Price: $6.24 |
| 6 |
736-0425 |
Bell Washer .325 x .930 x .45 Price: $3.95 |
| 7 |
656-0047 |
INPUT PULLEY ASSEMBLY (3.82X .313X .68) Not Available Price: |
| 8 |
936-0406 |
Flat Washer, .442 x 1.38 x .060 This part replaces 736-0406. Price: $5.94 |
| 9 |
682-0029 |
FRONT IDLER ASSEMBLY Not Available This part replaces 682-0028. Price: |
| 10 |
732-04001 |
Extension Spring Price: $4.84 |
| 11 |
741-0682A |
Bearing Sleeve Price: $9.86 |
| 12 |
936-0570 |
FLAT WASHER Not Available This part replaces 736-0570. Price: |
| 13 |
711-1492 |
Pinion Shaft 10T Price: Call Us |
| 14 |
741-0699 |
NEEDLE BEARING Not Available Price: |
| 15 |
936-0520 |
Flat Washer, .504 ID x.70 OD This part replaces 736-0520. Price: $5.23 |
| 17 |
682-0030 |
IDLER CABLE BRACKET Not Available Price: |
| 18 |
921-0329 |
Oil Seal This part replaces 721-0329. Price: $8.93 |
| 19 |
941-0673 |
Flange Bearing This part replaces 741-0673. Price: $5.65 |
| 20 |
611-0105A |
OUTPUT SHAFT ASSEMBLY Not Available This part replaces 611-0105. Price: |
| 21 |
736-0314 |
Thrust Washer .375 x .070 x .030 Price: $6.01 |
| 22 |
936-0569 |
THRUST WASHER Not Available This part replaces 736-0569. Price: |
| 23 |
618-0300A |
UPPER HOUSING ASSEMBLY Not Available Price: |
| 24 |
618-0299A |
HOUSING ASSEMBLY-LOWER Not Available Price: |
| 25 |
710-1276 |
SCREW 1/4-20 x .750 Not Available Price: |
