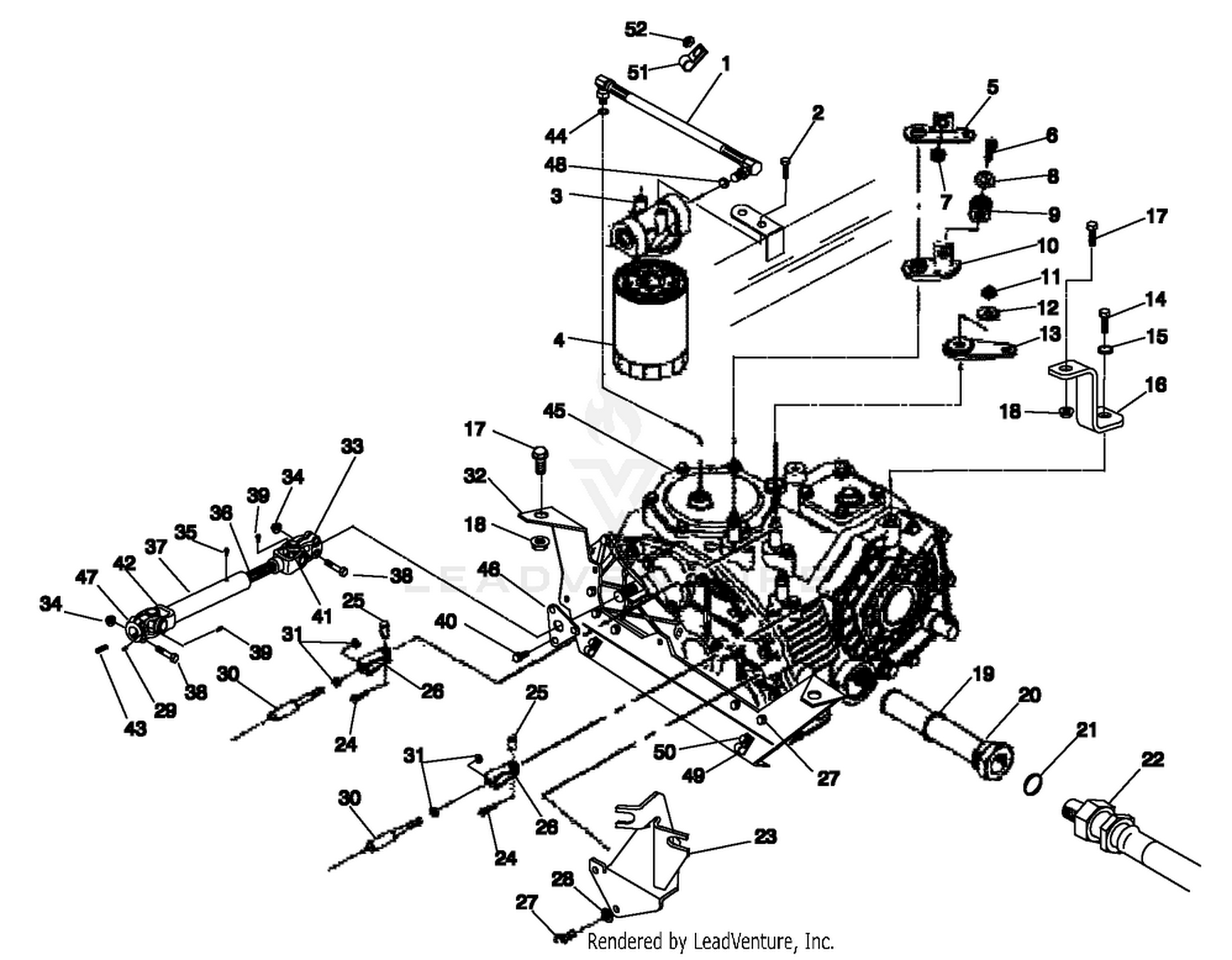

| Ref | Part Number | Description |
|---|
| 1 |
100-8254 |
HOSE-RETURN, AXLE Price: $97.88 |
| 2 |
3234-26 |
SCREW-HHF Price: $2.69 |
| 3 |
87-8780 |
HEAD-FILTER Price: $115.55 |
| 4 |
54-0110 |
FILTER-OIL, TRANSMISSION Price: $14.20 |
| 5 |
87-8250 |
PLATE-ARM, SHIFT Price: $38.85 |
| 6 |
323-10 |
SCREW-HH Price: $0.89 |
| 7 |
32128-21 |
NUT-HF Price: $0.39 |
| 8 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 9 |
87-6910 |
SPRING-COMPRESSION Price: $29.31 |
| 10 |
87-7970 |
ARM-SHIFT Price: $53.32 |
| 11 |
33025-00 |
NUT-LOCK, NI This part replaces 48-9520. Price: $0.54 |
| 12 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 13 |
87-7960 |
LEVER-SHIFT Price: $35.58 |
| 14 |
33106-030 |
SCREW-HHF Price: $1.15 |
| 15 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 16 |
100-8220-03 |
STRAP-MOUNT, TRANSAXLE This part replaces 100-8220. Price: $34.85 |
| 17 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 18 |
32128-49 |
NUT-HHF Price: $1.04 |
| 19 |
237-101 |
O-RING This part replaces 237-123. Price: $2.80 |
| 20 |
87-3990 |
STRAINER-TRANSAXLE Price: $148.81 |
| 21 |
237-81 |
O-RING Price: $2.76 |
| 22 |
100-8250 |
HOSE-SUCTION Price: $191.16 |
| 23 |
107-8749-03 |
BRACKET-CABLE This part replaces 100-8303. Price: $122.91 |
| 24 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 25 |
283-62 |
PIN-CLEVIS Price: $0.61 |
| 26 |
87-2310 |
CLEVIS-CABLE Price: $14.02 |
| 27 |
33104-025 |
SCREW-HHF Price: $6.47 |
| 28 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 29 |
3245-32 |
SCREW-HSH Price: $3.59 |
| 30 |
138-8290 |
A-ARM ASM-LH This part replaces 100-8539. Price: $715.80 |
| 31 |
3220-1 |
NUT-JAM Price: $0.99 |
| 32 |
100-8531-03 |
TRANSAXLE-MOUNT This part replaces 100-8227. Price: $245.95 |
| 33 |
100-8632 |
YOKE-SPLINED Price: $225.23 |
| 34 |
32128-20 |
NUT-HF Price: $0.99 |
| 35 |
302-56 |
FITTING-GREASE Price: $3.69 |
| 36 |
100-8634 |
YOKE AND SHAFT Price: $406.52 |
| 37 |
100-8293 |
SHAFT-DRIVE, INPUT Price: $896.03 |
| 38 |
322-7 |
SCREW-HH Price: $0.89 |
| 39 |
2115-80 |
ZERK Price: $0.76 |
| 40 |
125-7214 |
BOLT This part replaces 100-6928. Price: $3.77 |
| 41 |
54-9180 |
U-JOINT KIT Price: $58.18 |
| 42 |
100-8631 |
YOKE-TUBE AND SLIP SLEEVE Price: $187.70 |
| 43 |
92-0049 |
KEY-SQUARE Price: $2.72 |
| 44 |
237-42 |
O-RING Price: $2.78 |
| 45 |
104-9078 |
TRANSAXLE ASM This part replaces 99-0614. Price: $7,428.06 |
| 46 |
100-8594 |
COVER-SHAFT, INPUT Price: $21.74 |
| 47 |
100-8633 |
YOKE-KEYED Price: $192.06 |
| 48 |
237-79 |
O-RING Price: $5.46 |
| 49 |
2412-10 |
CLAMP-R Price: $2.78 |
| 50 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 51 |
2412-81 |
CLAMP-R Price: $3.39 |
