| Ref | Part Number | Description |
|---|
| 1 |
32144-5 |
SCREW Price: $0.97 |
| 1 |
532448161 |

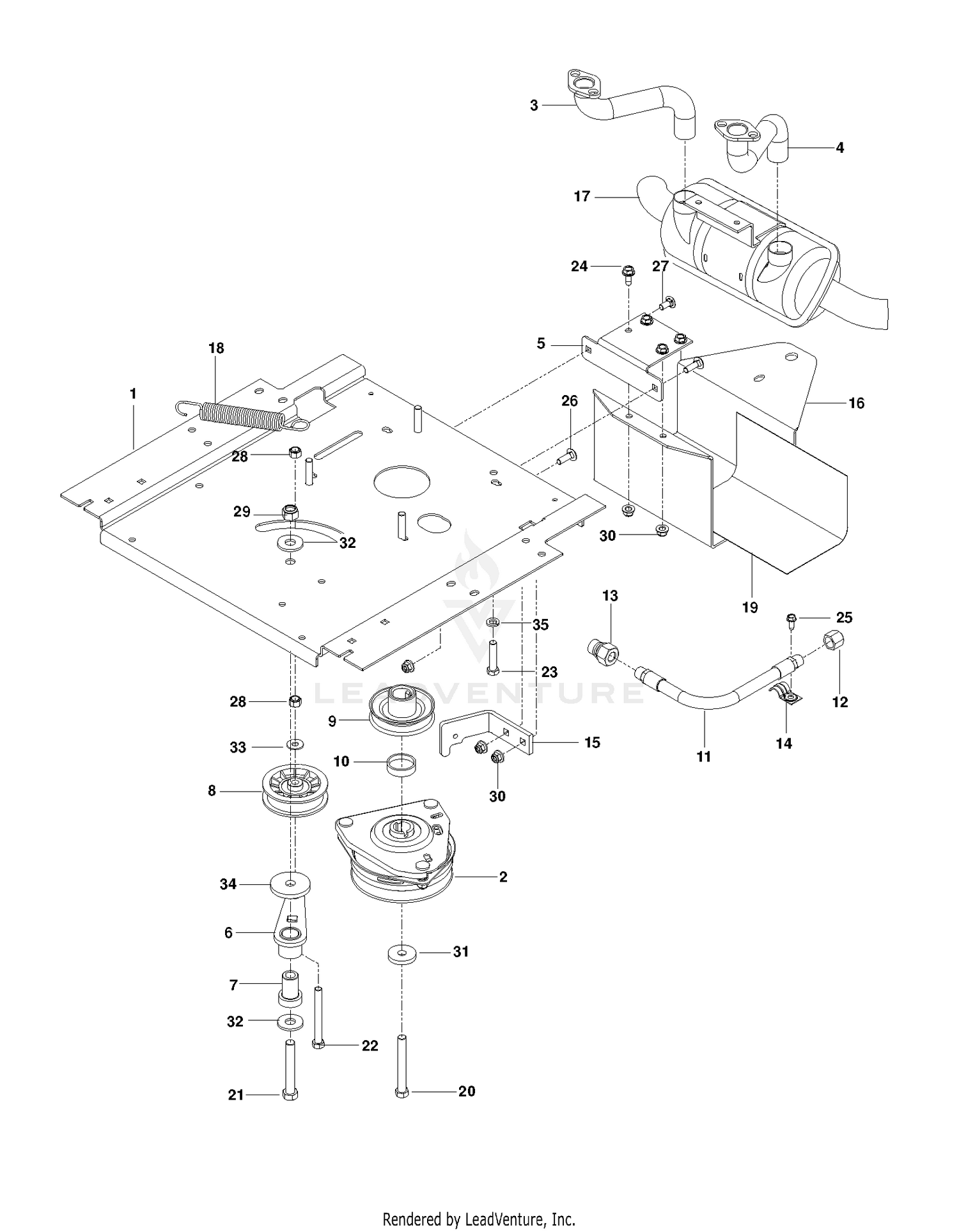

ENGINE PLATE RZ Price: $54.99 |
| 2 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532400008. Price: $329.99 |
| 3 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 3 |
581726501 |
EXHAUST PIPE ASM DUAL KAW RT Price: $19.99 |
| 4 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 4 |
581726401 |
EXHAUST PIPE ASM DYAL KAW LT Price: $22.99 |
| 5 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 5 |
581886702 |
BRACKET MUFFLER MS431BLK This part replaces 510260402. Price: $19.99 |
| 6 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 6 |
583593901 |
ARM.IDLER This part replaces 539112092. Price: $11.99 |
| 7 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 7 |
539101231 |
IDLER SPINDLE Price: $11.99 |
| 8 |
531350601 |
PULLEY IDLER, BACKSIDE 3 INCH This part replaces 539110311. Price: $19.99 |
| 9 |
43-6760 |
BEARING-ROLLER, CONE TAPER Price: $113.20 |
| 9 |
587537401 |
PULLEY.ENGINE This part replaces 539114530. Price: $22.99 |
| 10 |
43-6750 |
BEARING-TAPER, CUP Price: $69.64 |
| 10 |
577094601 |
SPACER, HUB PULLEY Price: $6.99 |
| 11 |
584825501 |
HOSE.ASSEMBLY.OIL.DRAIN Price: $27.99 |
| 12 |
539101364 |
DRAIN CAP Price: $5.99 |
| 13 |
32144-112 |
SCREW-HWH Price: $0.99 |
| 13 |
522599003 |
ADAPTER This part replaces 522599001. Price: $8.99 |
| 14 |
539101363 |
CLAMP Price: $2.99 |
| 14 |
86-7230 |
GEAR-INPUT, TRANSMISSION Price: $610.12 |
| 15 |
43-6710 |
SHIM-PINION (.003) Price: $2.17 |
| 15 |
587633302 |
CLUTCH.STOP.OGURA LCC.BLACK This part replaces 522442506. Price: $7.99 |
| 16 |
43-6711 |
SHIM-PINION (.005) Price: $3.80 |
| 16 |
587451202 |
GUARD.MUFFLER.WO.TOW.HITCHX431 This part replaces 584989802. Price: $44.99 |
| 17 |
43-6712 |
SHIM-PINION (.010) Price: $3.19 |
| 17 |
581726301 |
MUFFLER OUTLET DUAL RZ Price: $99.99 |
| 18 |
43-6713 |
SHIM-PINION (.030) Price: $6.99 |
| 18 |
547878302 |
SPRING BELT TENSIONER BLACK This part replaces 532196105. Price: $5.99 |
| 19 |
3210-8 |
SCREW-HH Price: $1.02 |
| 19 |
539132859 |
HEAT SHIELD Price: $22.99 |
| 19 |
576968001 |
HCS 7/16-20 X 2.5 GR8 Price: $2.99 |
| 20 |
539103433 |
HCS 1/2C X 3 1/4 Price: $5.99 |
| 20 |
71-4350 |
NUT Price: $3.46 |
| 21 |
539109389 |
HCS 3/8-16X3 1/2 GR5 Price: $4.99 |
| 21 |
83-5130 |
SPACER-PINION Price: $87.56 |
| 22 |
596918101 |
Bolts This part replaces 539976949. Price: $2.99 |
| 22 |
72-3572 |
SHIM-BEARING, FRONT (.098) This part replaces 72-3570. Price: $23.68 |
| 22 |
72-3573 |
SHIM-BEARING, FRONT (.100) Price: $24.63 |
| 22 |
72-3574 |
SHIM-BEARING, FRONT (.102) Price: $23.68 |
| 22 |
72-3575 |
SHIM-BEARING, FRONT (.104) Price: $22.53 |
| 22 |
72-3576 |
SHIM-BEARING, FRONT (.106) Price: $23.68 |
| 22 |
72-3577 |
SHIM-BEARING, FRONT (.108) Price: $22.53 |
| 22 |
72-3578 |
SHIM-BEARING, FRONT (.110) Price: $22.53 |
| 22 |
72-3580 |
SHIM-BEARING, FRONT (.112) Price: $22.53 |
| 22 |
72-3581 |
SHIM-BEARING, FRONT (.114) Price: $22.53 |
| 22 |
72-3582 |
SHIM-BEARING, FRONT (.116) Price: $22.53 |
| 22 |
72-3583 |
SHIM-BEARING, FRONT (.118) Price: $56.93 |
| 22 |
72-3584 |
SHIM-BEARING, FRONT (.120) Price: $24.63 |
| 22 |
72-3585 |
SHIM-BEARING, FRONT (.125) Price: $22.53 |
| 22 |
72-3586 |
SHIM-BEARING, FRONT (.127) Price: $22.53 |
| 22 |
72-3587 |
SHIM-BEARING, FRONT (.129) Price: $23.68 |
| 22 |
72-3588 |
SHIM-BEARING, FRONT (.131) Price: $22.53 |
| 22 |
72-3590 |
SHIM-BEARING, FRONT (.133) Price: $22.53 |
| 22 |
72-3591 |
SHIM-BEARING, FRONT (.135) Price: $21.44 |
| 22 |
72-3592 |
SHIM-BEARING, FRONT (.137) Price: $22.53 |
| 22 |
72-3593 |
SHIM-BEARING, FRONT (.139) Price: $23.68 |
| 22 |
72-3594 |
SHIM-BEARING, FRONT (.141) Price: $23.68 |
| 22 |
72-3595 |
SHIM-BEARING, FRONT (.143) Price: $22.53 |
| 22 |
72-3596 |
SHIM-BEARING, FRONT (.145) Price: $22.53 |
| 22 |
72-3597 |
SHIM-BEARING, FRONT (.147) Price: $22.53 |
| 22 |
72-3598 |
SHIM-BEARING, FRONT (.149) Price: $24.63 |
| 22 |
72-3600 |
SHIM-BEARING, FRONT (.151) Price: $23.68 |
| 23 |
254-91 |
CONE-BEARING Price: $18.65 |
| 23 |
539107475 |
BOLT 5/16-18 X 3/4 Price: $4.99 |
| 24 |
254-90 |
BEARING-CUP This part replaces 21-8390. Price: $11.29 |
| 24 |
539990362 |
SCREW 1/4 X 5/8 Price: $3.99 |
| 25 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 25 |
595901501 |
Bolts This part replaces 539990208. Price: $3.99 |
| 26 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 26 |
93-3619 |
UPPER HOUSING ASM Price: $1,825.32 |
| 27 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 27 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 28 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 28 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 29 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 29 |
92-1773 |
SCREW-HHF Price: $3.05 |
| 30 |
32121-15 |
PIN-ROLL This part replaces 21-7710. Price: $1.60 |
| 30 |
532126197 |
WASHER This part replaces 539110064. Price: $6.99 |
| 31 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 31 |
595316401 |
Washers This part replaces 539109554. Price: $2.99 |
| 32 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 32 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 33 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 33 |
539112670 |
HEAVY WASHER Price: $3.99 |
| 34 |
596238701 |
Washers This part replaces 539990118. Price: $3.99 |
| 34 |
75-0721 |
DISCONTINUED Price: Call Us |
| 35 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 36 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 37 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 38 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 39 |
72-9420 |
VENT Price: $6.85 |
| 40 |
83-4910 |
COUPLER-PINION Price: $223.04 |
| 41 |
71-4330 |
SEAL Price: $36.26 |
| 42 |
93-3618 |
GEAR AND PINION ASM Price: $1,107.66 |
