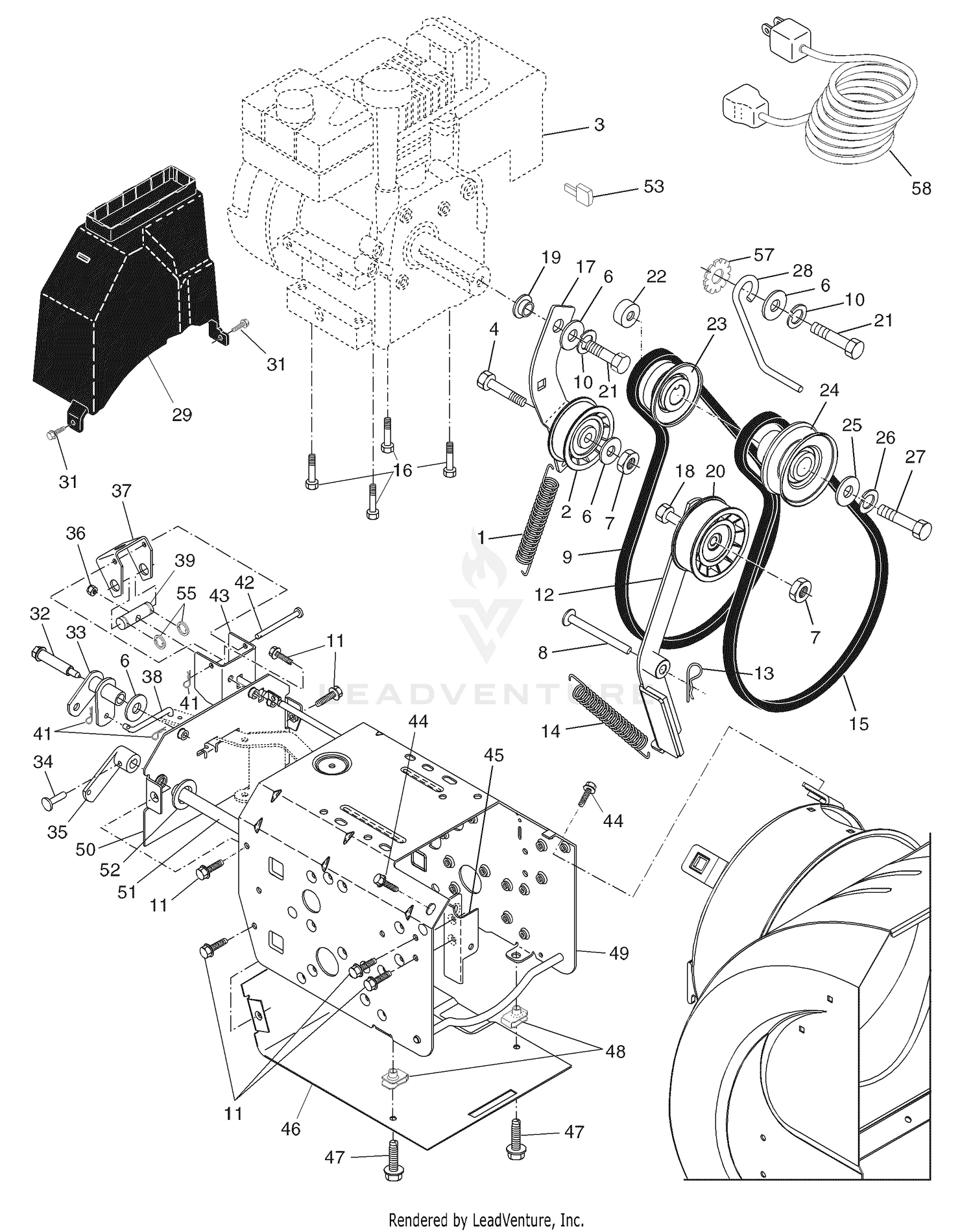

| Ref | Part Number | Description |
|---|
| 1 |
532414557 |
SPRING.TRACTION.IDLER This part replaces 532181044. Price: $4.99 |
| 1 |
83-2400 |
SPACER Price: $6.31 |
| 2 |
83-2390 |
PAD-TANK Price: $18.44 |
| 3 |
83-1450 |
SENSOR-LEVEL, OIL Price: $265.93 |
| 4 |
237-80 |
O-RING Price: $6.10 |
| 4 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 5 |
92-8966 |
DISCONTINUED Price: Call Us |
| 6 |
532059289 |
STEEL WASHER Price: $3.99 |
| 6 |
83-1520 |
SCREEN-FILLER Price: $35.12 |
| 7 |
585802801 |
NUT.HEX.FL 5/16-18 TOP LCK BLK This part replaces 532166785. Price: $4.99 |
| 7 |
92-4063 |
PLUG-CAP, FILLER Price: $51.76 |
| 8 |
532175330 |
PIN, IDLER PIVOT Price: $4.99 |
| 8 |
93-7160 |
CAP-OIL, HYD Price: $42.72 |
| 9 |
532416954 |
V-BELT.TRACTION This part replaces 532179092. Price: $27.99 |
| 9 |
75-0540 |
TETHER AND BUTTON KIT Price: $6.89 |
| 10 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 10 |
75-0540 |
TETHER AND BUTTON KIT This part replaces 2410-73. Price: $6.89 |
| 11 |
237-79 |
O-RING Price: $5.46 |
| 11 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 12 |
354-121 |
FITTING-STR This part replaces 92-1665. Price: $17.60 |
| 12 |
532422111 |
ARM.IDLER.BRAKE.BLACK This part replaces 532410420. Price: $12.99 |
| 13 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 13 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 14 |
140-5278 |
HOSE-FORMED This part replaces 83-2070. Price: $19.31 |
| 14 |
532178828 |
SPRING, BRAKE Price: $4.99 |
| 15 |
139-2716 |
HOSE-FORMED This part replaces 83-2090. Price: $11.29 |
| 15 |
532408008 |
BELT-V.IMPELLER.DRIVE Price: $44.99 |
| 16 |
321-2 |
SCREW-HH Price: $2.79 |
| 16 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 17 |
585238401 |
ARM.ASM.TRACTION.IDLER. This part replaces 532184804. Price: $27.99 |
| 17 |
83-1550 |
SPACER-TUBE, SHORT Price: $7.73 |
| 18 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 18 |
83-1470 |
WASHER-NEOPRENE Price: $1.97 |
| 19 |
3256-71 |
WASHER-FLAT Price: $0.81 |
| 19 |
587343701 |
BUSHING.BRAKE.ARM This part replaces 532175331. Price: $5.99 |
| 20 |
322-14 |
SCREW-HH Price: $1.01 |
| 21 |
874610516 |
SCREW Price: $3.99 |
| 21 |
92-8020 |
ADAPTER-BREATHER Price: $10.50 |
| 22 |
322-29 |
SCREW-HH Price: $2.69 |
| 22 |
532409475 |
SPACER.ENGINE.PULLEY Price: $7.99 |
| 23 |
595926601 |
PULLEY This part replaces 532180478. Price: $27.99 |
| 23 |
83-1560 |
SPACER-TUBE, LONG Price: $8.33 |
| 24 |
237-101 |
O-RING This part replaces 237-123. Price: $2.80 |
| 24 |
532426492 |
PULLEY.ENG.IMPELLER.SNOW This part replaces 532178813. Price: $17.99 |
| 25 |
532400026 |
WASHER, FLAT 3/8 Price: $7.99 |
| 25 |
83-2250 |
GUAGE-SIGHT Price: $16.67 |
| 26 |
136-8547 |
LEAK DETECTOR TANK KIT This part replaces 92-1666. Price: $724.57 |
| 26 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 27 |
354-120 |
FITTING-ELBOW, 90 Price: $30.04 |
| 27 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 28 |
161-4678 |
SOLENOID VALVE ASM This part replaces 83-1460. Price: $932.37 |
| 28 |
532155452 |
BELT.GUIDE.RH Price: $4.99 |
| 29 |
532409161 |
COVER.BELT.HS Price: $12.99 |
| 29 |
83-2080 |
HOSE-VALVE, TANK Price: $8.76 |
| 30 |
83-0910 |
HOSE-INLET, PUMP Price: $78.97 |
| 31 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 31 |
596437001 |
Screws This part replaces 817490408. Price: $2.99 |
| 32 |
532179256 |
BOLT, SHOULDER 5/16-18 Price: $2.99 |
| 32 |
83-0870 |
FITTING-HOSE, BARBED Price: $62.08 |
| 33 |
237-177 |
O-RING Price: $2.73 |
| 33 |
532187853 |
BELLCRANK SHIFTER Price: $12.99 |
| 34 |
532198580 |
CLEVIS PIN Price: $4.99 |
| 34 |
83-1430 |
HOSE-LINE, RETURN Price: $18.75 |
| 35 |
323-6 |
SCREW-HH Price: $0.66 |
| 35 |
532405485 |
ARM, AUGER CONTROL Price: $6.99 |
| 36 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 36 |
63-8410 |
WASHER Price: $1.76 |
| 37 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 37 |
532184086 |
BRACKET, PIVOT Price: $3.99 |
| 38 |
353-550 |
PLUG-HYD, HH Price: $10.71 |
| 38 |
532187101 |
LINK, SPEED CONTROL Price: $64.99 |
| 39 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 39 |
532192110 |
TRUNNION, TRACTION Price: $7.99 |
| 40 |
321-11 |
SCREW-HH Price: $0.36 |
| 41 |
2412-141 |
CLAMP-DRIVE, WORM Price: $2.40 |
| 41 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 42 |
532179065 |
PIN, PIVOT BRACKET Price: $8.99 |
| 42 |
83-2000 |
SPOOL-VALVE Price: $308.58 |
| 43 |
161-8350 |
COIL ASM This part replaces 83-2010. Price: $111.53 |
| 43 |
532179063 |
BELLCRANK BRACKET This part replaces 532415364. Price: $2.99 |
| 44 |
68-6150 |
BREATHER Price: $27.22 |
| 44 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 45 |
532422762 |
KIT.SERVCE.IDLER.PULLEY This part replaces 532184074. Price: $79.99 |
| 46 |
532178624 |
PAN, FRAME BOTTOM This part replaces 532184084. Price: $17.99 |
| 47 |
871020512 |
Screw, Hex Head 5/16-18 x 3/4 Price: $2.99 |
| 48 |
532181156 |
NUT.SPEED.5/16-18 Price: $3.99 |
| 49 |
532404431 |
FRAME.WELDMENT.SNOW.ORANGE This part replaces 532407642. Price: $64.99 |
| 50 |
583706301 |
END.PLATE.DS.SNOW.BLACK This part replaces 532188002. Price: $14.99 |
| 51 |
532429668 |
KIT.CONTROL.SHAFT.SNOW This part replaces 532406109. Price: $29.99 |
| 52 |
532057079 |
THRUST WASHER Price: $1.99 |
| 53 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $4.99 |
| 55 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 57 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 811050500. Price: $2.99 |
