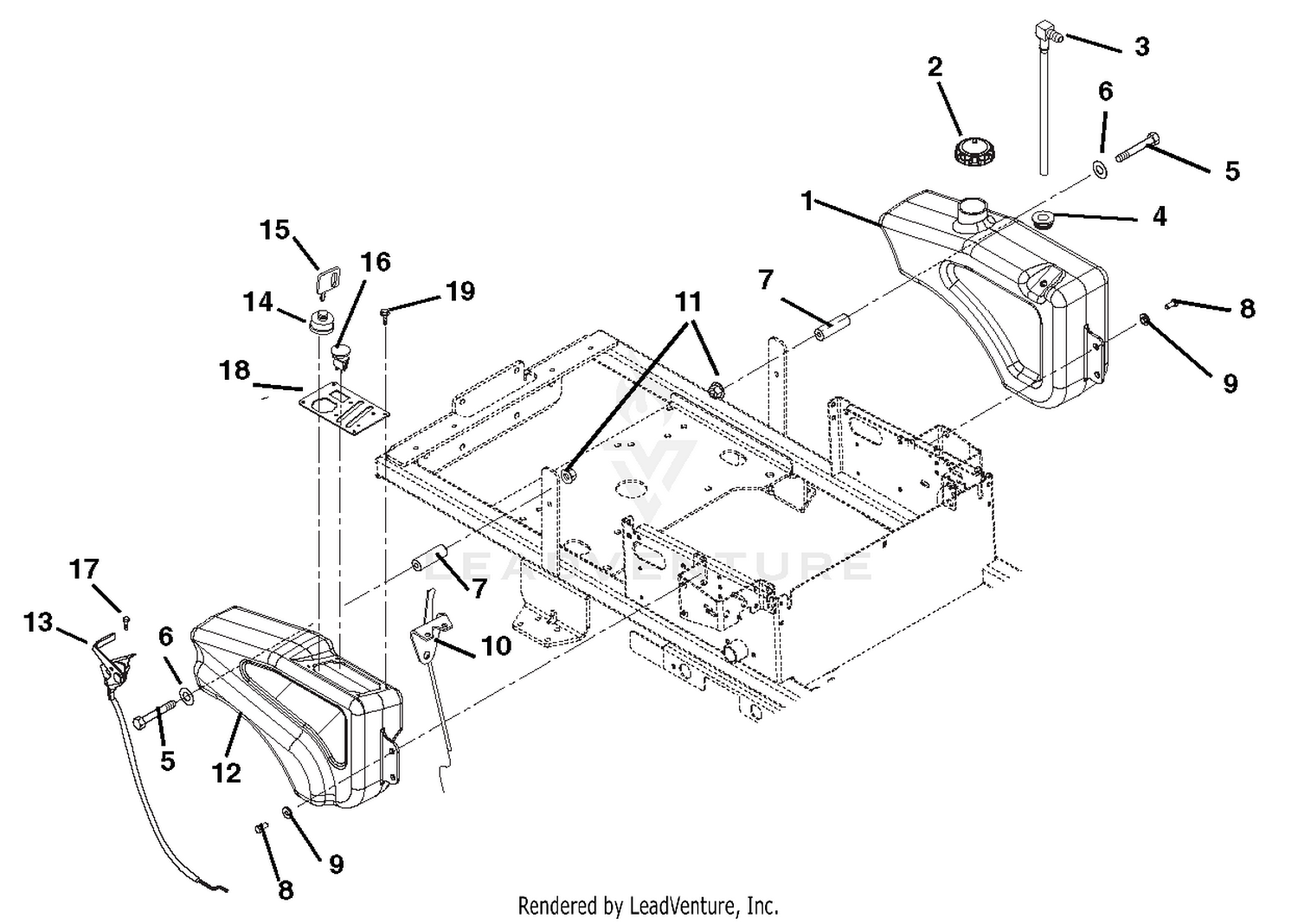

| Ref | Part Number | Description |
|---|
| 1 |
00479500 |
GAS TANK, ZOOM Price: $104.95 |
| 2 |
01538400 |
FUEL CAP Price: $14.45 |
| 3 |
03875300 |
ASSY-PICKUP, FUEL This part replaces 09112300. Price: $13.45 |
| 4 |
07511400 |
BSHG-FLG .375 X 1.062 X .625 R Price: $3.45 |
| 5 |
05948000 |
BLT-HEX .31-18X3.50 GR5 ZCC Price: $2.45 |
| 6 |
06401023 |
WSHR-FLT .375X.875X.083 ZCC This part replaces 06435700. Price: $1.45 |
| 7 |
00480900 |
SPCR, FLG .32X.49X.15X2.64 Price: $18.45 |
| 8 |
05901704 |
BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45 |
| 9 |
01305900 |
BSHG, FLG .325X.499X.26X.88 Price: $1.95 |
| 11 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 12 |
00479600 |
FENDER, ZOOM Price: $72.95 |
| 14 |
01588300 |
KEY SWITCH Price: $28.95 |
| 15 |
02460700 |
KEY -W/CAP Price: $9.45 |
| 16 |
01545600 |
SWITCH, CLUTCH Price: $23.95 |
