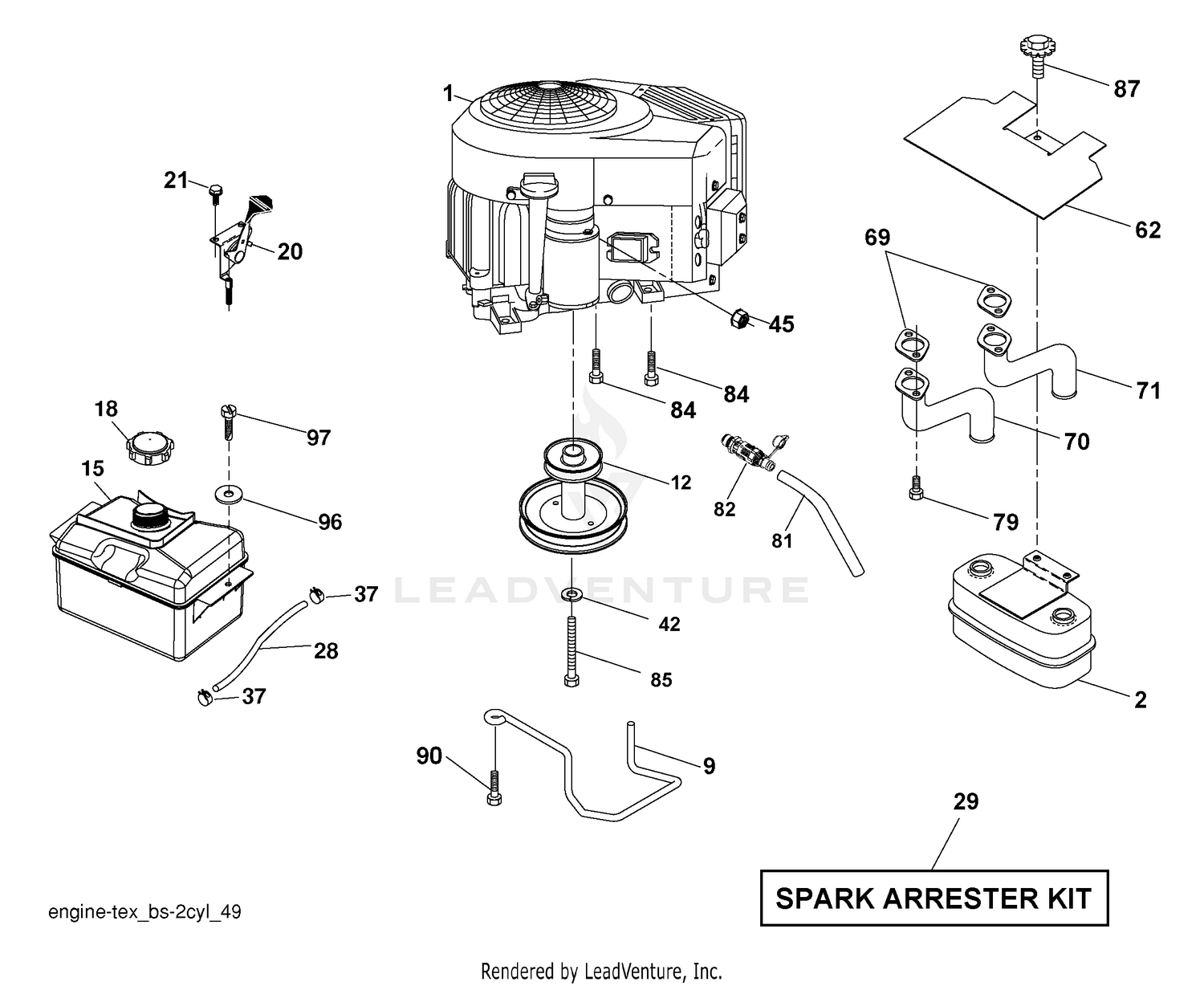

| Ref | Part Number | Description |
|---|
| 1 |
77-3900 |
SCREW - HEX HEAD,METRIC Price: $2.85 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 2 |
74-4050 |
BRACKET - HOOD STOP*B Price: $22.69 |
| 3 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 4 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 5 |
62-1230 |
WASHER-RUBBER Price: $5.39 |
| 6 |
66-2871 |
CABLE-STOP, HOOD Price: $61.31 |
| 7 |
74-6040 |
HOSE RETURN Price: $58.26 |
| 8 |
92-6579 |
WIRE FORM WA Price: $202.30 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 9 |
77-3550 |
DISCONTINUED Price: Call Us |
| 10 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 11 |
110-4114 |
HOSE-FUEL This part replaces 55-4130. Price: $30.59 |
| 12 |
532405472 |
RP_PULLEY ENGINE Price: $34.99 |
| 12 |
66-3240 |
CAP-RADIATOR Price: $25.30 |
| 13 |
77-3560 |
PLUG & GASKET F/W Price: $34.33 |
| 14 |
2412-119 |
CLAMP-HOSE, WORM DRIVE Price: $1.83 |
| 15 |
581290101 |
TANK.ASSEMBL.2.5GAL.NON-EPA This part replaces 532407489. Price: $99.99 |
| 15 |
74-9120 |
HOSE-OVERFLOW, RADIATOR Price: $9.97 |
| 16 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 17 |
2412-96 |
CLAMP-R Price: $3.46 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 19 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 20 |
2412-129 |
CLAMP-HOSE Price: $2.10 |
| 20 |
532423502 |
CONTROL.TH/CK.COBRA.B&S.TWN.BK Price: $24.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 21 |
74-6010 |
HOSE - OVER FLOW Price: $43.63 |
| 22 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 23 |
2412-125 |
CLAMP-HOSE Price: $5.22 |
| 24 |
74-6030 |
DISCONTINUED Price: Call Us |
| 25 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 26 |
110-4113 |
HOSE-FUEL This part replaces 63-7627. Price: $9.44 |
| 27 |
110-4107 |
HOSE-FUEL This part replaces 63-7622. Price: $7.77 |
| 28 |
587044822 |
HOSE.1/4".LOW.PERM.FUEL.LN.22" This part replaces 532401137. Price: $9.99 |
| 28 |
77-3890 |
BRACKET - HOOD STOP *B Price: $40.20 |
| 29 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
32128-20 |
NUT-HF Price: $0.99 |
| 31 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 32 |
74-5930 |
DISCONTINUED Price: Call Us |
| 33 |
74-9122 |
HOSE-OVERFLOW, RADIATOR Price: $20.47 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
