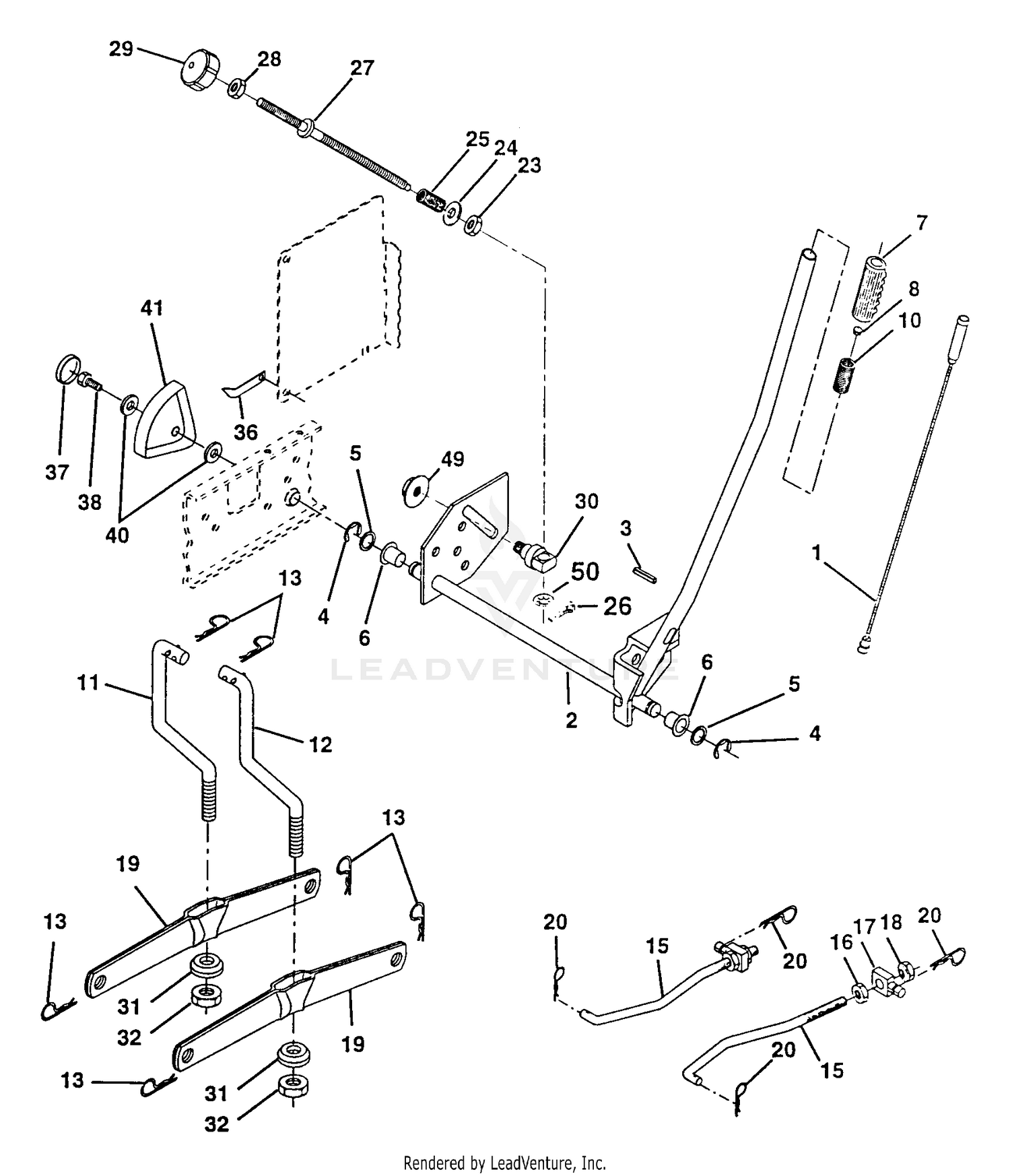

| Ref | Part Number | Description |
|---|
| 1 |
110-6322-03 |
RH TUBE ASM Price: $304.98 |
| 1 |
136973 |
Wire Asm Inner W/plunger 17.32 Price: Call Us |
| 2 |
110-6324-03 |
LH TUBE ASM Price: $238.54 |
| 2 |
145117 |
Shaft Asm Lift RH w/Inf Price: Call Us |
| 3 |
105767X |
Pin Groove 1 500 Zinc Price: Call Us |
| 3 |
112-6492-03 |
BRACKET ASM Price: $55.17 |
| 4 |
112-7642 |
SPRING-TORSION, STD (BLACK) Price: $26.10 |
| 4 |
117-9578 |
SPRING-TORSION, FIRM (RED) Price: $22.98 |
| 4 |
12000002 |
E Ring #5133-62 (AYP part number) Price: Call Us |
| 5 |
110-6304 |
CLIP-RETAINER Price: $8.56 |
| 5 |
19211621 |
Washer 21/32 X 1 X 21 Ga Price: Call Us |
| 6 |
120183X |
Bearing Nylon Blk 629 Id Price: Call Us |
| 6 |
323-12 |
SCREW-HH Price: $1.14 |
| 7 |
109413X |
Grip Handle Bicycle Matte Blk Price: Call Us |
| 7 |
323-11 |
SCREW-HH Price: $1.08 |
| 8 |
124526X |
Button Plunger Black (AYP part number) Price: Call Us |
| 8 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 10 |
122512X |
Spring Cprsn 3 750 Oiled (AYP part number) Price: Call Us |
| 10 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 11 |
110-0276-01 |
SADDLE Price: $82.17 |
| 11 |
532145537 |
LIFT LINK LH This part replaces 532139865. Price: $14.99 |
| 12 |
110-0271 |
GUARD ASM Price: $98.38 |
| 12 |
139866 |
Link Lift RH Fixed Length Price: Call Us |
| 13 |
4939M |
Retainer Spring (AYP part number) Price: Call Us |
| 13 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 14 |
112-7161 |
SCREW-HH Price: $1.90 |
| 15 |
127218 |
Link Front Price: Call Us |
| 15 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 16 |
112-1431-03 |
SPRING BRACKET ASM Price: $38.43 |
| 16 |
73350800 |
Nut Jam Hex 1/2-13 Unc Price: Call Us |
| 17 |
108-4538 |
SPRING-EXTENSION Price: $21.73 |
| 17 |
130171 |
Trunnion Blk Zinc (AYP part number) Price: Call Us |
| 18 |
73800800 |
Nut Lock W/wsh 1/2-13unc (AYP part number) Price: Call Us |
| 19 |
139868 |
Arm Suspension Rear Price: Call Us |
| 20 |
3146R |
Retainer Spring Price: Call Us |
| 23 |
110807X |
Nut Special Price: Call Us |
| 24 |
19131016 |
Washer 13/32 X 5/8 X 16 Ga Price: Call Us |
| 25 |
2876H |
Spring 2-1/8" Price: Call Us |
| 26 |
76020308 |
Pin Cotter 3/32 X 1/2 (AYP part number) Price: Call Us |
| 27 |
126971X |
Rod Adj Lift Zinc 7.49 Wrk Lg (AYP part number) Price: Call Us |
| 28 |
73350600 |
Nut Hex Jam 3/8-16 Unc Price: Call Us |
| 29 |
138057 |
Knob Inf 3/8-16 Unc Blk W/sym Price: Call Us |
| 30 |
150233 |
Trunnion Infin Height Price: Call Us |
| 31 |
532169865 |
BEARING.PIVOT.LIFT This part replaces 532140302. Price: $3.99 |
| 32 |
73540600 |
Nut Crownlock 3/8 - 24 (AYP part number) Price: Call Us |
| 36 |
155097 |
Pointer Height Indicator Price: Call Us |
| 37 |
123935X |
Plug Hole Blk 1.485/1.515 Dia. Price: Call Us |
| 38 |
17490512 |
Screw Thdrol 5/16-18 x 3/4 Price: Call Us |
| 40 |
19112410 |
Washer 11/32 x 1-1/2 10 Ga. Price: Call Us |
| 41 |
123934X |
Indicator Height Price: Call Us |
| 49 |
145212 |
Nut Hex Flange Lock Price: Call Us |
