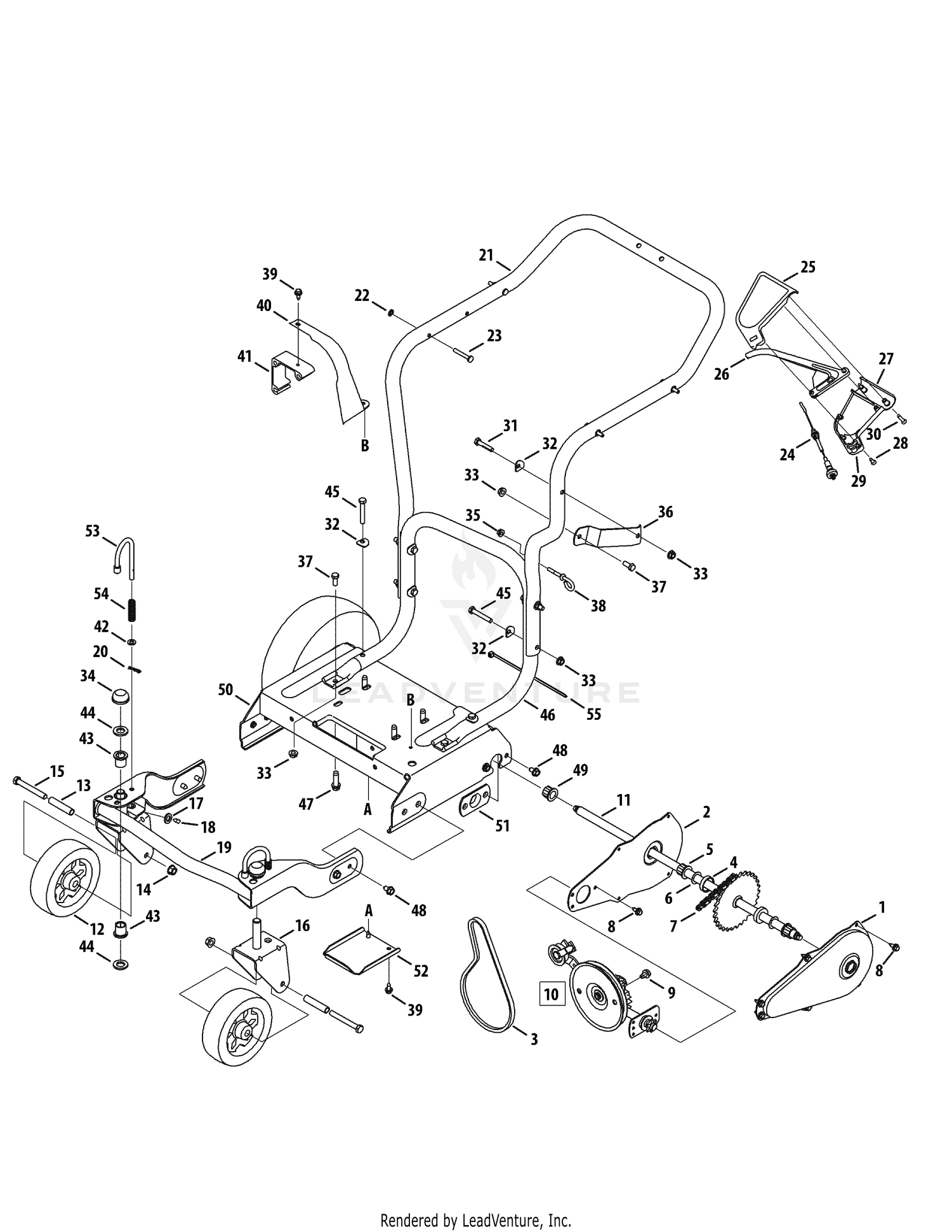

| Ref | Part Number | Description |
|---|
| 1 |
781-0677 |
CASE CHAIN (LH) Not Available Price: |
| 2 |
781-0676 |
CASE CHAIN (RH) Not Available Price: |
| 3 |
954-0457 |
V-Belt Not Available This part replaces 754-0457. Price: |
| 4 |
748-0313 |
SPACER-.630 x 1.25 Not Available Price: |
| 5 |
741-0413 |
Hex Flange Bearing Price: $8.46 |
| 6 |
936-0336 |
FLAT WASHER This part replaces 736-0336. Price: $3.90 |
| 7 |
913-0422 |
CHAIN #41X.500 END Not Available This part replaces 713-0422. Price: |
| 8 |
710-0896 |
TT Screw, 1/4-14 x 0.625" Price: $3.86 |
| 9 |
710-0603 |
Hex Washer Screw, 5/16 Price: $4.19 |
| 10 |
618-0256 |
TRANSMISSION ASSEMBLY Not Available Price: |
| 11 |
611-0063 |
AXLE SHAFT ASSEMBLY Not Available Price: |
| 12 |
734-1804A |
Wheel, 6.0 x 2.0 Price: $36.04 |
| 13 |
750-1042 |
Spacer Price: $12.21 |
| 14 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 15 |
710-0521 |
Hex Cap Screw, 3/8-16 x 3.0 Price: $4.54 |
| 16 |
681-0088 |
Bracket Assembly Price: $43.04 |
| 17 |
736-0931 |
Flat Washer, .203 ID x.403 OD Price: $4.02 |
| 18 |
937-3000 |
GREASE FITTING This part replaces 7373000. Price: $4.04 |
| 19 |
681-0087 |
Bracket Assembly Price: $165.60 |
| 20 |
714-0104 |
Cotter Pin Price: $3.90 |
| 21 |
749-1095 |
UPPER HANDLE Not Available Price: |
| 22 |
1539-019 |
Push Nut Price: $3.61 |
| 23 |
911-0737 |
Stud Pin, .250 x 1.75 Not Available This part replaces 711-0737. Price: |
| 24 |
946-0714 |
Clutch Cable - 56" This part replaces 746-0714. Price: $29.53 |
| 25 |
753-0832 |
Upper Clutch Cover This part replaces 731-1735. Price: $53.74 |
| 26 |
731-0620A |
Drive Lever Price: $13.59 |
| 27 |
731-1736 |
Lower Clutch Cover Price: Call Us |
| 28 |
710-0841 |
Screw, #10-12 x.750 Price: $3.95 |
| 29 |
753-0833 |
Mounting Cable Cap This part replaces 731-1059. Price: $47.34 |
| 30 |
710-1331 |
Screw, #10-16 x 1.25 Price: $3.91 |
| 31 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75 |
| 32 |
736-0451 |
Shoulder Washer, .320 ID x.93 OD Price: $3.75 |
| 33 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 34 |
726-0214 |
Push Cap Price: $9.11 |
| 35 |
712-0380 |
LOCK NUT 1/4 x 28 Not Available Price: |
| 36 |
781-0647 |
STABILIZER BRACKET Not Available Price: |
| 37 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 38 |
747-0815 |
EYE-BOLT Not Available Price: |
| 39 |
710-0896 |
Hex Washer Screw, 1/4-14 x.625 Price: $3.86 |
| 40 |
731-1646 |
BELT COVER Not Available Price: |
| 41 |
719-0359 |
ENGINE MOUNTING ADAPTER Not Available Price: |
| 42 |
736-0264 |
Flat Washer, .330 ID x.630 OD Price: $5.99 |
| 43 |
741-0487C |
Flange Bearing, .632 ID Price: $6.87 |
| 44 |
736-0366 |
Flat Washer, 5/8 ID x 1.0 OD Price: $3.82 |
| 45 |
710-3103 |
Hex Cap Screw, 5/16-18 x 1.75 Price: $4.02 |
| 46 |
749-1094 |
Lower Push Handle Price: $68.71 |
| 47 |
710-0502A |
Screw, 3/8-16 x 1.25 Price: $5.71 |
| 48 |
710-0604A |
Hex Washer Screw, 5/16-18 x.625 Price: $3.96 |
| 49 |
741-0413 |
Hex Flange Bearing, .631 x.720 Price: $8.46 |
| 50 |
681-0097A |
FRAME ASSEMBLY Not Available Price: |
| 51 |
781-0700-0637 |
AXLE BRACKET Not Available This part replaces 781-0700. Price: |
| 52 |
781-0697-0637 |
TRANSMISSION COVER Not Available This part replaces 781-0697. Price: |
| 53 |
747-0924 |
Lock Pin Price: $18.29 |
| 54 |
932-0306A |
COMPRESSION SPRING This part replaces 732-0306. Price: $7.69 |
